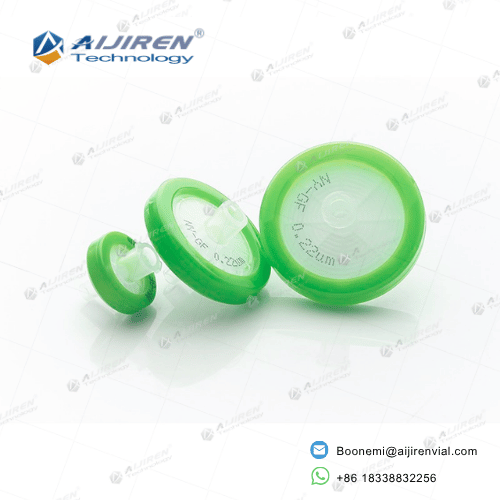

Economy Nylon Syringe Filters

Description

Feature

Specification

Application

Product

FAQ

Packing and Delivery

Product Description

Reliable Daily Filtration Without the Premium Price Tag

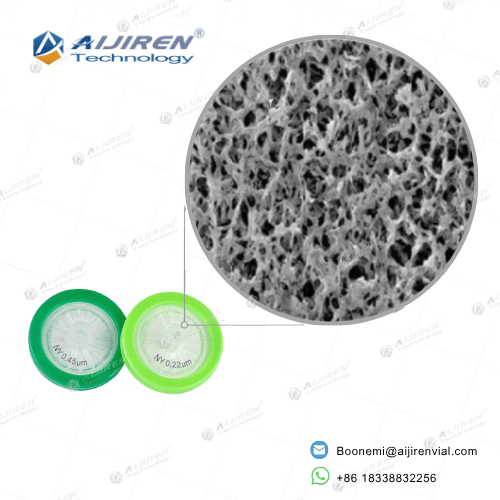

Featuring a naturally hydrophilic Nylon membrane and a robust, pressure-resistant PP housing, these filters are compatible with both aqueous and organic solvents. Each batch is tested for low extractables to prevent sample contamination, making them ideal for environmental testing, food analysis, and general chemical filtration.

Applications

Ideal for diverse analytical applications requiring high-purity filtration.

HPLC Sample Prep: Removal of particulates to extend column life.

Biological Fluids: Clarification of protein-containing solutions.

Solvent Filtration: Suitable for both aqueous and mild organic solvents.

Environmental Testing: General filtration for water and soil extracts.

Food & Beverage: Quality control testing and beverage analysis.

Related products

Economy type MCE syringe filter for routine HPLC testing

mce-syringe-filters-for-biological-aqueous-filtration

pes 0.22 non-sterile syringe filter yellow

Yellow PES Syringe Filters (Non-sterile) - 13/25/33mm Available

Lab-grade Non-sterile PTFE Syringe Filters (Hydrophilic/Hydrophobic)

Assorted Laboratory Syringe Filters Nylon PTFE PES PVDF MCE

Universal Laboratory Syringe Filters and Membranes Series (Nylon, PTFE, PES, PVDF, MCE, CA, PP)

hydrophilic-pvdf-syringe-filters-economy

Specification

Basic Information

Product Specification

Item	Technical Details
Product Name	Economy Nylon Non-Sterile Syringe Filter
Material	Hydrophilic Nylon Membrane
Material of Housing	Medical Grade Polypropylene (PP)
Effective Filtration Area	13mm/1.13cm², 25mm/4.15cm², 33mm/5.20cm²
Pore Size	0.22 μm / 0.45 μm
Process Volume	＜10mL (13mm), ＜100mL (25mm), ＜150mL (33mm)
Maximum Operating Temperature	100°C
Maximum Operating Pressure	87 psi (6.0 bar)
pH Range	3 - 12
Application	HPLC/GC Sample Prep; Aqueous & Organic Solvent Filtration; Lab Clarification

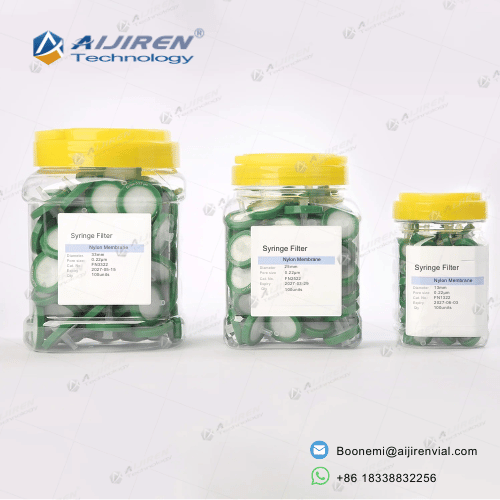

Package	100 pcs/pack (Bulk Economy Packaging)

Cat. NO.	Diameter	Pore Size	Sterilization	Description	Package

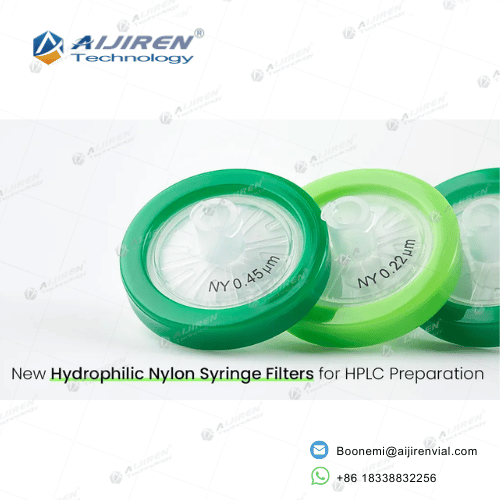

FN1322	13 mm	0.22 μm	NO	13mm Economy Nylon Filter, Green Housing, Optimized for Routine Lab Prep.	100 pcs/pk
FN1345	13 mm	0.45 μm	NO	13mm Economy Nylon Filter, Green Housing, High Flow Rate for Sample Clarification.	100 pcs/pk

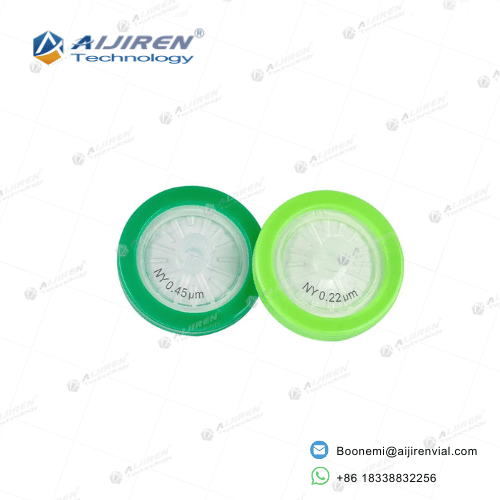

FN2522	25 mm	0.22 μm	NO	25mm Economy Nylon Filter, Green Housing, Validated Integrity for HPLC Analysis.	100 pcs/pk
FN2545	25 mm	0.45 μm	NO	25mm Economy Nylon Filter, Green Housing, High Throughput for General Filtration.	100 pcs/pk
FN3322	33 mm	0.22 μm	NO	33mm Economy Nylon Filter, Green Housing, Large Filtration Area for Bulk Samples.	100 pcs/pk
FN3345	33 mm	0.45 μm	NO	33mm Economy Nylon Filter, Green Housing, Maximum Capacity for Viscous Solutions.	100 pcs/pk

Quality Assurance & Specifications

Manufactured in ISO Class cleanrooms to ensure purity and reliability.

Sterility Assurance

Sterile products are Gamma Iradiated. Verified sterile and pyrogen-free.

Wide Range Availability

Huge inventory of diverse specifications ready for immediate dispatch

Batch Traceability

Lot numbers printed on every package for full quality tracking.

Dimensional Check

Precise dimensions ensure compatibility with all standard luer syringes.

HPLC Certified

Tested for low extractables to ensure no ghost peaks in your sensitive UV detection.

FAQ

What makes these "Economy Type" filters different from premium lines?

The "Economy" designation refers to our bulk packaging and streamlined manufacturing process designed for high-frequency, routine testing. We maintain uncompromising membrane integrity and use ultrasonic welding to ensure the housing won't leak under pressure (up to 87 psi). You get the same reliable 0.22μm or 0.45μm filtration performance without paying for individual blister packaging.

Are Green-coded Nylon filters compatible with all HPLC solvents?

Nylon is a highly versatile, naturally hydrophilic membrane compatible with most aqueous and organic solvents, including alcohols and acetonitrile (ACN). However, it is not recommended for strong acids (pH <3) or aggressive halogenated hydrocarbons. For routine HPLC/GC sample prep, the green-coded Nylon is the industry standard for easy material identification and performance.

Can I autoclave these non-sterile filters if my protocol changes?

Yes. While these are sold as non-sterile, both the Nylon membrane and the medical-grade Polypropylene (PP) housing are heat-resistant. They can be safely autoclaved at 121°C (15 psi) for 20 minutes. This makes them a flexible choice for labs that occasionally need sterile results but prefer the cost savings of bulk non-sterile stock.

Why should I choose the 33mm diameter over the standard 25mm?

The 33mm series offers a significantly larger Effective Filtration Area (5.20 cm² vs 4.15 cm²). If you are working with "dirty" or viscous samples, the 33mm filter provides higher throughput and faster flow rates, allowing you to process up to 150mL of

Does the Nylon membrane affect sample recovery for protein analysis?

It is important to note that Nylon has a high protein binding capacity. While excellent for general solvent clarification and removing particulates, if your sample contains trace amounts of critical proteins or peptides, we recommend switching to our PES or PVDF lines to ensure maximum recovery. For standard chemical analysis, Nylon remains the most cost-effective solution.
