Core Overview

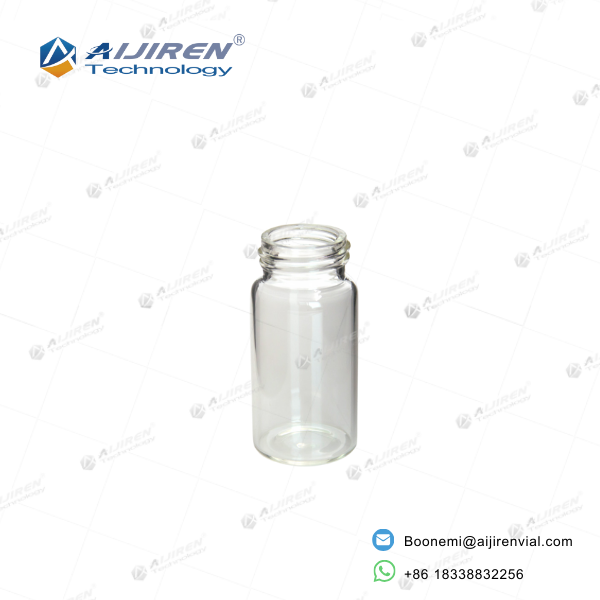

These 24-400 screw vials are manufactured specifically for EPA Method 524.2 and other VOA/TOC protocols. We use USP Type I expansion 33 or 51 borosilicate glass to ensure a neutral surface that won't leach ions or shift sample pH.

For labs running high-sensitivity GC/MS or LC/MS, these vials provide the low-background stability required for trace-level detection.

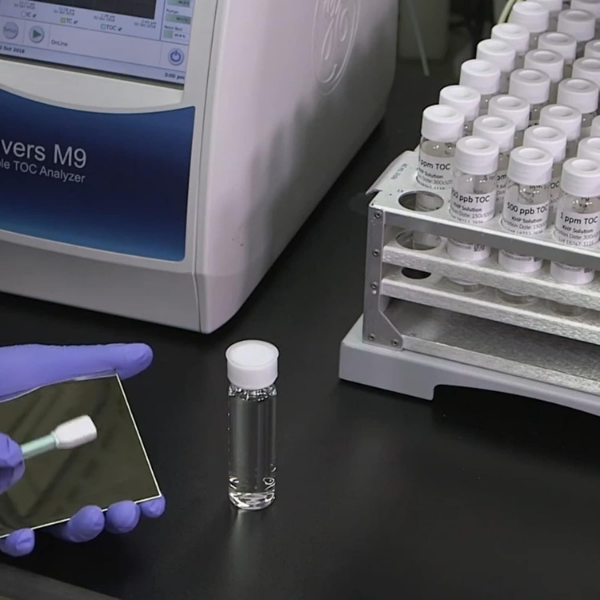

Technical Craftsmanship

Built for high-throughput automated sampling.

Wall Consistency: Controlled glass distribution prevents thermal stress cracks during rapid temperature shifts or sample freezing.

24-400 Thread Precision: Standardized neck geometry ensures zero-leakage sealing with automated handlers and prevents cross-threading.

Surface Inertness: Minimal hydroxyl group activity on the glass inner wall, reducing analyte adsorption for polar compounds

Chemical Resistance: Fully compliant with ASTM E438 Class A, resisting aggressive solvents and acidic samples.

Clean-Room Packaging: Shrink-wrapped to prevent particulate contamination from cardboard dust or environmental debris.

Related products

Analytical Grade 15-425 Caps and 13.5mm Septa for Lab Use

15-425-screw-caps -ptfe-silicone-septa

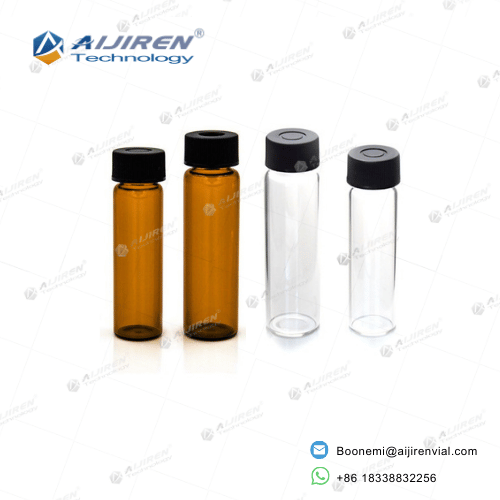

15-425 Screw Neck Storage Vials

24-400 screw caps and 22mm PTFE silicone septa kit for environmental testing

24-400 EPA Vial Screw Caps 22mm PTFE/Silicone Septa for VOC Analysis

Table

Borosilicate Type I vs. Soda-Lime Glass Performance

Closure Integrity and Liner Technology

Regulatory and Method Compliance

Parameter	USP Type I Borosilicate (Our Spec)	Standard Soda-Lime Glass	Analytical Impact
Hydrolytic Resistance	High (Conforms to USP <660>)	Low (Type III)	Prevents pH drift in aqueous samples.
Linear COE	3.3 +/-pm 0.1 or +/-5.1+/- 0.1	8.0--9.0	Superior thermal shock resistance during freezing/autoclaving.
Extractables	Trace levels (Heavy metal free)	High risk of Na+ and Ca+ leaching	Ensures ultra-pure background for trace analysis.

Feature	Advanced Bonded Septa Cap	Standard Mechanical Fit	Operational Outcome
Liner Attachment	Molecular fusion (No adhesives)	Friction fit only	Zero septum fallout during needle penetration.
Contamination Risk	Zero glue residues	Potential adhesive outgassing	Maintains GC/MS signal purity.
Airtight Seal	Precision 24-400 thread geometry	High tolerance variance	Prevents loss of Volatile Organic Compounds (VOCs).

Application	EPA Certified Series	Generic Storage Vials	Compliance Status
TOC Analysis	Certified Low-Background	Uncontrolled carbon residues	Meets pharmaceutical purified water standards.
VOA Sampling	Conforms to EPA Method 524.2	Not protocol-validated	Required for regulated environmental monitoring.
UV Protection	Amber Glass (360-480nm block)	Clear or inconsistent tint	Protects light-sensitive analytes from degradation.

Application Scenarios

Versatile solutions for critical laboratory workflows.

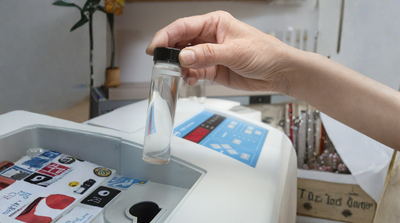

Environmental Water Testing

Optimized for collecting and storing water samples for pollutant analysis.

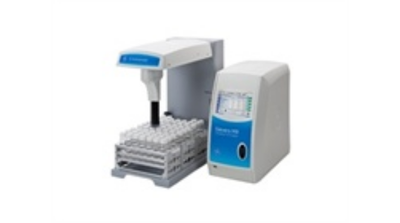

TOC (Total Organic Carbon) Analysis

Low-background vials designed for high-sensitivity TOC determination.

Soil & Solid Waste Sampling

Robust 24-400 opening allows for easy solid sample insertion.

Pharmaceutical Stability Storage

Ideal for long-term storage of APIs and sensitive chemical reagents.

Volatile Organic Analysis (VOA)

Prevents loss of volatile components through superior airtight sealing.

Expert guidance on selecting the right EPA vials for your laboratory.

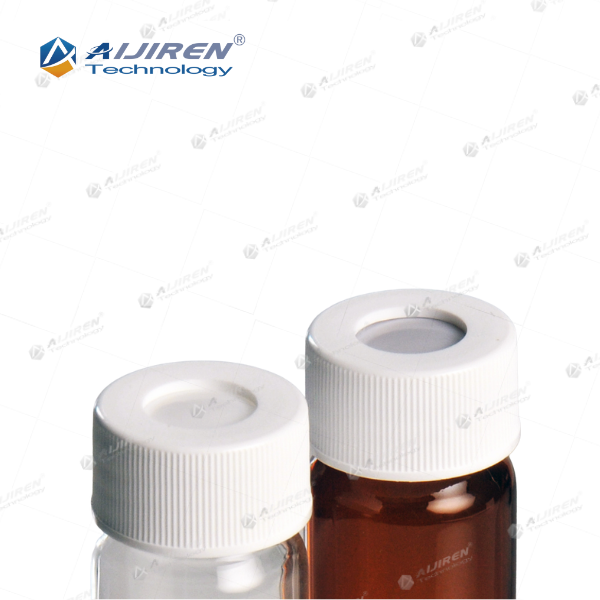

What is the benefit of Bonded Septa?

Bonded septa are molecularly fused to the cap, eliminating the use of glues and preventing the septa from falling out or being pushed into the vial during high-pressure sampling.

Can these vials be used for TOC analysis?

Yes, our vials meet the cleanliness requirements for TOC analysis. We recommend our clear vials for the lowest possible background interference.

Are 24-400 vials compatible with all autosamplers?

The 24-400 finish is a universal standard for large-volume vials. However, always check your specific sampler's tray dimensions for the vial height (e.g., 20ml vs 40ml).

Is there a difference between 5.0 and 7.0 type glass?

5.0 type glass (Expansion 51) and 7.0 type glass both offer excellent resistance, but 5.0 is typically preferred for even higher thermal shock resistance in extreme conditions.

How should I store light-sensitive samples?

We recommend using our Amber EPA vials, which provide significant light-blocking properties for compounds that degrade under UV or ambient light.

Mar

Packing and Delivery

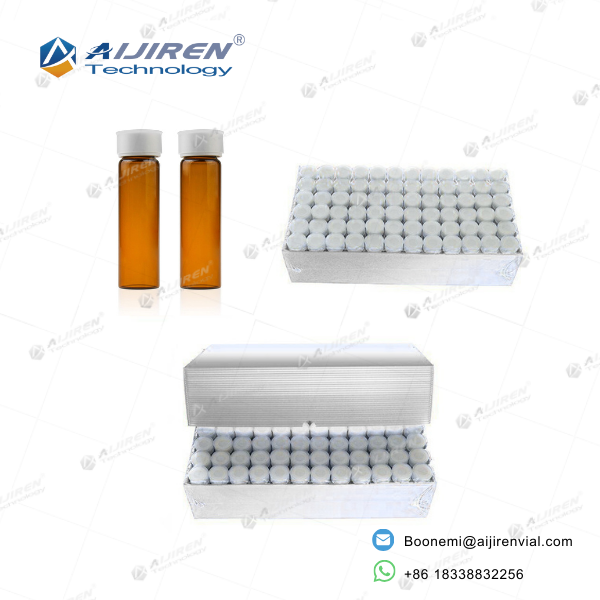

Packing

Each vial is individually protected in shrink-wrapped trays, 100–200 pcs per inner box, then packed into corrugated export cartons.

Labeling

Each carton includes lot number and product information for traceability.

Delivery Time

Normally 7–15 working days after order confirmation.

Shipping Options

Air freight, sea freight, or express (DHL/UPS/FedEx) available upon request.

Storage Condition

Store in a clean, dry environment at room temperature.
