Low Cost 0.45um PTFE Syringe Filter Double Lure-lock design for Sale

Mar. 20th, 2020
0.45um PTFE Syringe Filter can withstand the most corrosive solvents, acids and alkali samples and are ideal for filtering highly corrosive colloid solutions. These filters can be used under extreme chemical or temperature conditions and are ideal for analytical and research applications requiring non-water/organic solvent filtration.
Specifications of 0.45um PTFE Syringe Filter:
Ruhr lock mother entrance and Ruhr slip exit.
Provides a sterile syringe filter with non-sterile and individually packaged packaging.
A two-layer syringe filter with fiberglass or PP pre-filter is also available.
The housing diameter can be selected from 13mm, 25mm, 33mm.

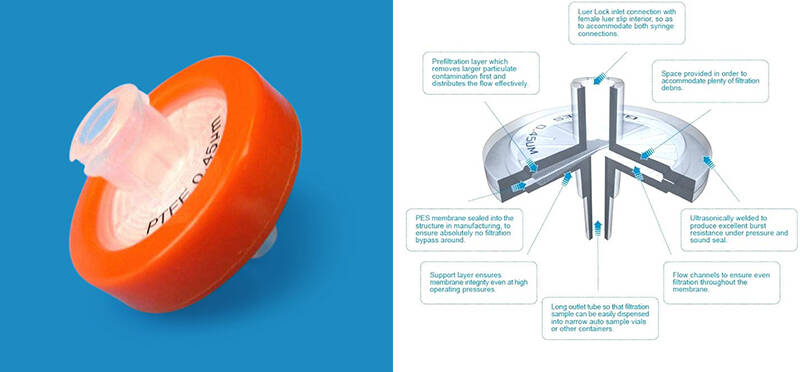

The 0.45um PTFE Syringe Filter is attached to the end of the syringe to remove particles from the sample prior to analysis.

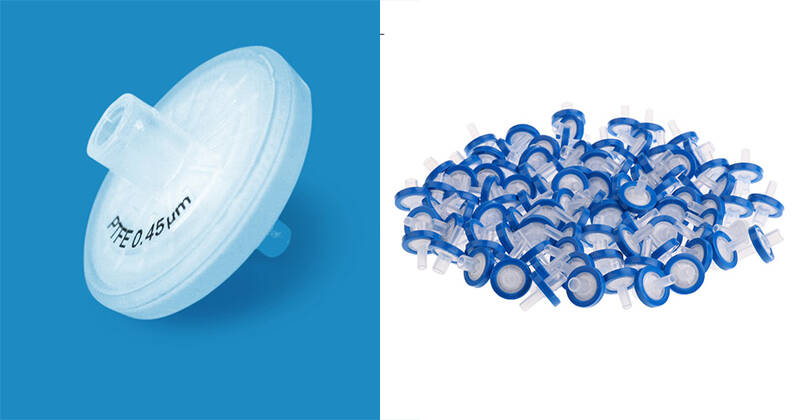

Aijiren 0.45um PTFE Syringe Filters are a fast, convenient and reliable filtration tool commonly used in the laboratory. Since there is no need to replace the membrane and clean the filter, it eliminates the tedious and cumbersome need of preparing.

Filter Media

Nylon /PTFE /PES /PTFEL/ PVDF/ PVDF L

Pore Size, μm

0.22μm, 0.45μm

Diameter

13mm

25mm

Housing

PP

PP

Filtration Area

1.0cm2

4.3cm2

Maximum Operating Pressure

6.2bar

6.2bar

Process Volume

10ml

100ml

Hold-up Volume

< 25μl

<100μl

Inlet

Female Luer Lock

Female Luer Lock

Outlet

Male Luer Unlock

Male Luer Unlock

Flow Direction

Flow should enter from the inlet

Maximum Operating Temperature

267.8F

Sterilization

Autoclave at 249.8F at 1 bar for 20 minutes/EO/Gamma

If you have any requests for 0.45um PTFE Syringe Filter, please contact Aijiren.We focus on chromatographic consumables produced for more than 10 years.
