From Domes to the Lab: Moscow Architecture Meets Aijiren Precision

May. 9th, 2025
TAGS:

Moscow’s Metro is famed for its “underground palaces – station vaults built to millimeter‑level tolerances. This article compares the vaults of Belorusskaya, Novoslobodskaya, Prospekt Mira, and Komsomolskaya stations with Aijiren septa (bonded caps) in terms of geometric precision, material performance, and quality control, highlighting a seamless pursuit of precision from grand architecture to lab consumables.

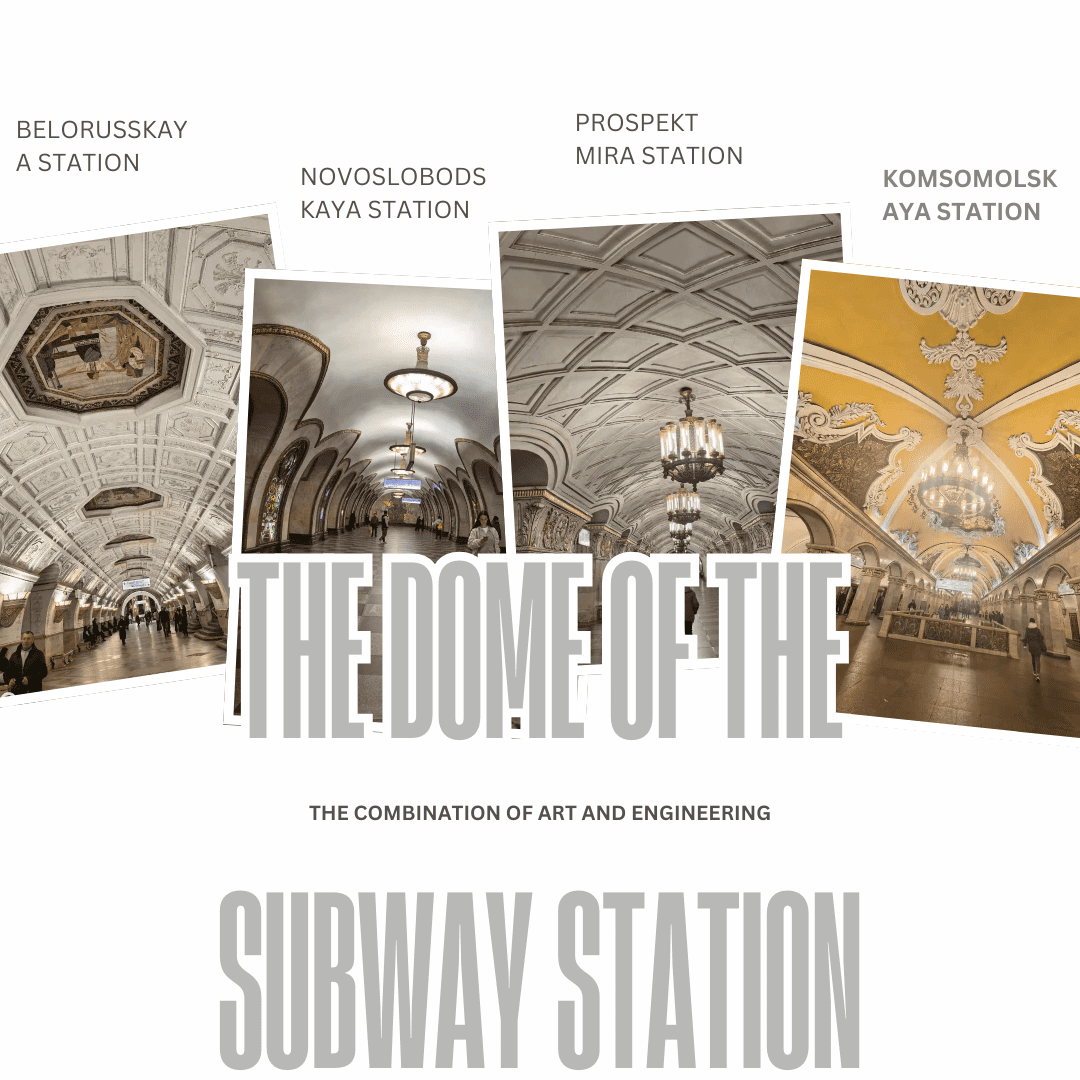

Metro Dome Craftsmanship

  • Belorusskaya Station
    Its dome features decorative tiles and inlays, each 100×100 mm ±0.2 mm, with installation tolerance under 3 mm – a marriage of artistry and engineering.

  • Novoslobodskaya Station
    Known for 32 colorful round glass bas‑reliefs, each mounted to <0.5 mm tolerance, creating an “underground gallery” of light and shadow.

  • Prospekt Mira Station
    A parabolic aluminum panel dome with seams ≤0.5 mm, topped by dove‑relief friezes that blend modern and classical motifs.

  • Komsomolskaya Station
    Its vast mosaic dome boasts tiling tolerance <2 mm, enhanced with gold leaf to craft a sumptuous historical narrative.

Geometry: Macro vs. Micro

Item

Metro Domes

Aijiren Septa

Curvature Profile

Composite Gauss curves for load flow

Multi‑layer arc & plane composite for multi‑point sealing

Tolerance

≤0.5 mm (tiles & panels)

±0.02 mm (thread per ISO 965‑2)

Load Distribution

Evenly disperses dome weight to columns

Uniformly resists vertical pull‑off >50 N

Materials & Construction

  • Metro Domes: Cast iron, aluminum, glass mosaics – built to last and easy to clean; anti‑corrosion coatings extend life beyond 50 years.

  • Aijiren Septa: PTFE/silicone composite, inert from –80 °C to 300 °C; multi‑layer design prevents evaporation and cross‑contamination, with pull‑off force >50 N (20 % above industry).

Quality & Testing

  • Domes: Daily laser scans during build; 1 mm‑resolution 3D imaging post‑completion ensures flawless geometry.

  • Septa: Sampled pull‑off tests per GB/T 2828‑2018; >98 % seal retention after –80 °C/60 °C cycles. Thread fit meets ISO 965‑2, guaranteeing leak‑free engagement.

Conclusion
The domes of Belorusskaya, Novoslobodskaya, Prospekt Mira, and Komsomolskaya, and Aijiren septa share exacting demands:

  • Millimeter vs. micrometer tolerances;

  • Durable multi‑layer materials;

  • Digital quality control throughout the lifecycle.
    From “underground palaces” to “lab seals,” precision reigns supreme—everywhere, every scale.
