Wholesale 16mm Laboratory Digestion Tubes & PTFE Closures

Description

Feature

Specification

Product

FAQ

Packing and Delivery

Overview

In environmental monitoring and wastewater testing, Chemical Oxygen Demand (COD) analysis demands laboratory consumables capable of surviving extreme thermal stress and aggressive acidic reagents without leaching trace impurities. This premium series of 16mm laboratory digestion tubes and engineering-grade PTFE-lined screw closures is strictly manufactured to eliminate structural structural failures, cross-contamination, and volatile background interference during high-pressure digestion procedures.

The geometric specifications and physical tolerances of these tubes are calibrated precisely to ensure flawless mechanical fitment into standard thermal reactor blocks and spectrophotometer wells, avoiding any operational jamming. Featuring distinct HC (High Chemical Inertness) and LVB (Low Volatile Background) material classifications, this product workflow delivers the rigorous hermetic seal required by EPA and ISO methods during the standard two-hour acid heating cycle at 150°C.

Product Features

This premium series provides absolute physical integrity and zero trace-element background interference during rigorous high-temperature acid digestion processes.

Extreme Thermal Tolerance: Engineered using Class A borosilicate glass to continuously withstand standard 2-hour thermal digestion cycles ranging from 150°C to 165°C safely.

Targeted Material Grading: Available in both HC (High Chemical Inertness) and LVB (Low Volatile Background) configurations to perfectly align with specific analytical detection limits.

Hermetic Vapor Barrier: Outfitted with pure PTFE liners facing the inner tube chamber to completely block aggressive sulfuric acid and potassium dichromate vapors.

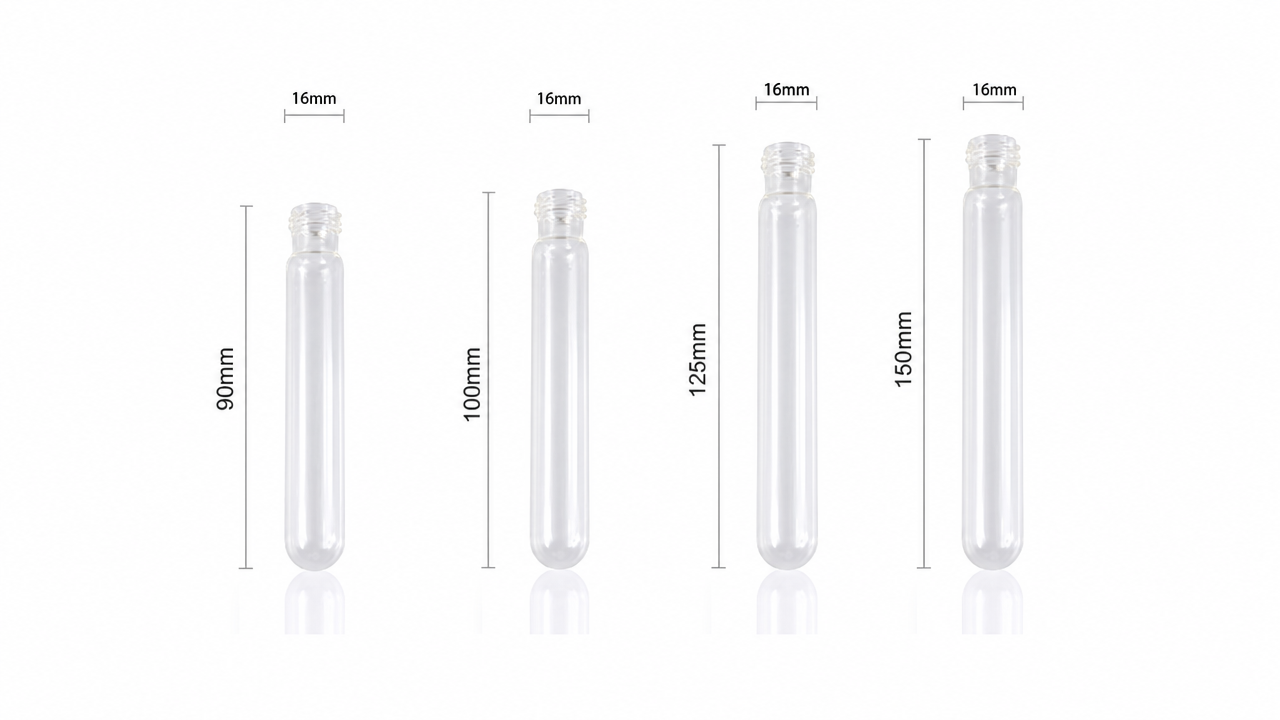

Calibrated Geometric Dimensions: Manufactured to a strict 16mm outer diameter tolerance, ensuring flawless fitment inside standard heating blocks and spectrophotometer wells.

Flexible Setup Configurations: Offered in both flat-bottom and round-bottom geometries across multiple length variations to easily streamline diverse sample preparation workflows.

Specification

Technical Specifications & Ordering Information

Part No.	Product Description	Bottom Type	Material Grade	Dimensions (D × L)	Pcs/Pack
COD-V50	10mL Clear Glass Test Tube for Water Analysis & COD Digestion, High Chemical Inertness (HC Type)	Round Bottom	Borosilicate Class A	16 × 100 mm	100
COD-VF50	10mL Clear Glass Test Tube for Water Analysis & COD Digestion, High Chemical Inertness (HC Type)	Flat Bottom	Borosilicate Class A	16 × 100 mm	100
COD-VF50-90	9mL Clear Glass Test Tube for Water Analysis, Low Volatile Background (LVB Type)	Flat Bottom	Premium USP Type 1	16 × 90 mm	100
COD-V50-125	12mL Clear Glass Test Tube for Water Analysis & COD Digestion, High Chemical Inertness (HC Type)	Round Bottom	Borosilicate Class A	16 × 125 mm	100
COD-V50-150	15mL Clear Glass Test Tube for Water Analysis & COD Digestion, High Chemical Inertness (HC Type)	Round Bottom	Borosilicate Class A	16 × 150 mm	100

FAQ

This technical guide answers the most critical compatibility, material selection, and sealing safety questions raised by laboratory procurement officers.

Are these 16mm digestion tubes fully compatible with standard commercial reactor blocks?

Yes, the 16mm outer diameter is tightly calibrated to ensure a seamless fit in heating blocks from major analytical brands like Hach and Hanna.

What is the main structural advantage of choosing the flat-bottom version (COD-VF50)?

Flat-bottom tubes stand independently on open workbenches without requiring an external rack, speeding up sample pipetting and preparation steps.

How do I choose between the HC Type and the LVB Type?

Select the HC Type for standard heavy-duty thermal digestion; choose the LVB Type for low-range analytical limits where trace background interference must be eliminated.

Can the PTFE septa on the screw caps withstand concentrated heating acid vapors?

Yes, the pure PTFE liner layer directly faces the sample to provide an impenetrable chemical barrier against hot sulfuric acid and dichromate vapors.

Are these consumables delivered clean and ready for immediate laboratory use?

They are packaged in a controlled, clean environment. However, for ultra-trace or low-range standard protocols, a pre-washing procedure following your local SOP is recommended.
