Product Overview

Our 20mm crimp top headspace vials are the best for VOC analysis and Karl Fischer titration. They are the industry standard for secure sealing. The crimp finish makes a permanent, tamper-proof seal that stays strong even when exposed to intense heat.

High-Pressure Safety and Material Purity: These vials are made of strong glass that can handle the pressure inside when the sample is heated. The beveled neck lets the metal cap press down hard on the septa, making a perfect hermetic seal for sensitive analytes.

Key Features

Precision engineered for flawless sealing and instrument compatibility.

Pressure-Resistant: Thick glass walls handle pressures up to 10 Bar during incubation

Beveled Neck: Beveled 20mm crimp neck ensures a leak-proof, airtight seal.

USP Type I Glass: Minimizes alkali leaching and ghost peaks for trace analysis.

Universal Fit: Fully compatible with Agilent, Waters, and Shimadzu autosamplers.

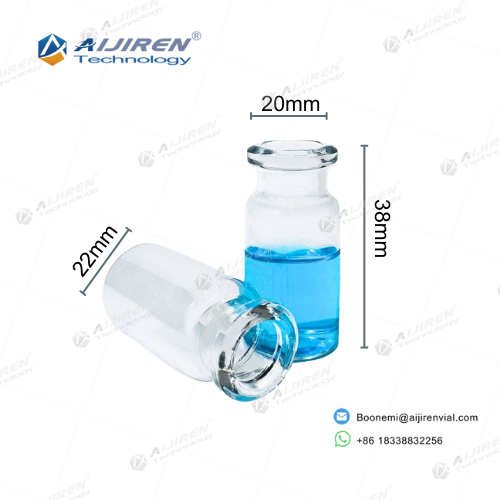

Karl Fischer Ready: Specifically sized 6mL vials (22x38mm) for easy titrator integration.

Related products

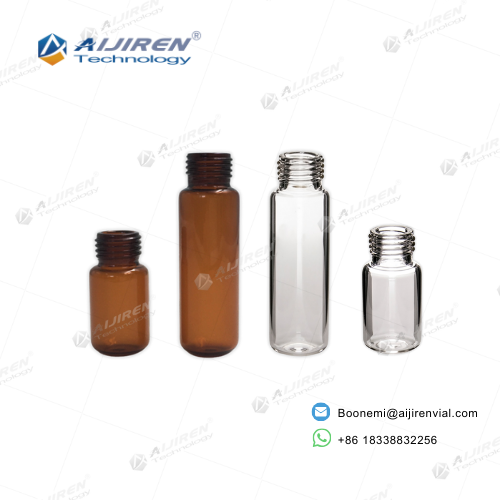

18mm Precision Screw Thread Headspace Vials for GC

18mm Screw Thread Headspace Vials

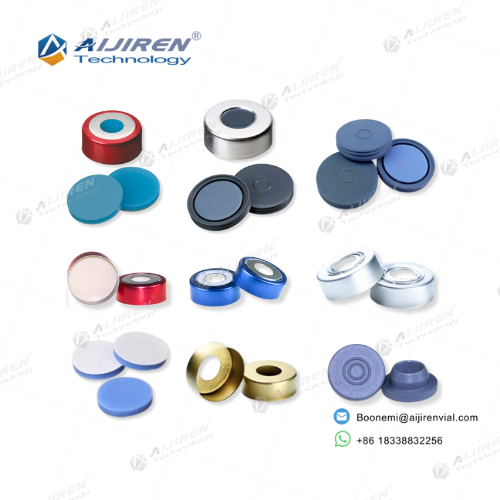

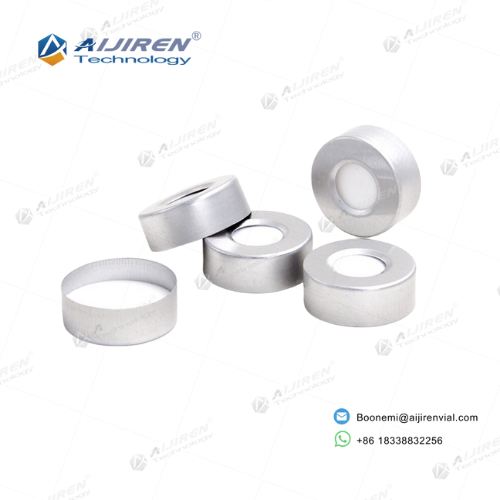

20mm Crimp-top Aluminum Caps and Septa Collection

20mm Crimp-top Aluminum Caps & Septa

18mm Magnetic Screw Caps with Septa

Technical Tables

Complete Compatibility and Specifications Guide for 20mm Crimp Vials

Performance of materials and safety

Global Instrument Compatibility

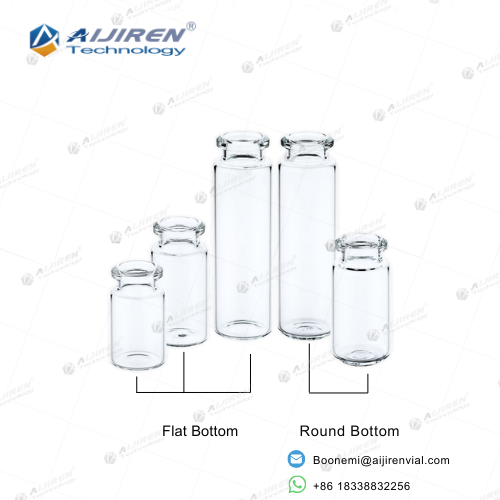

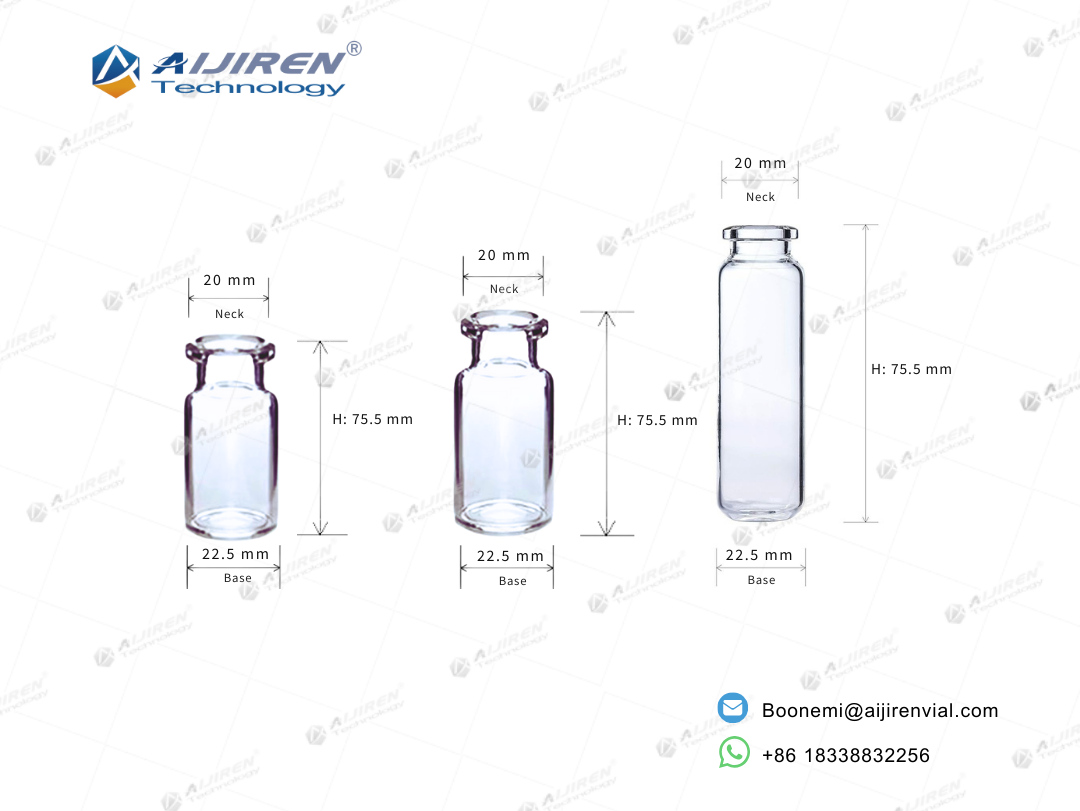

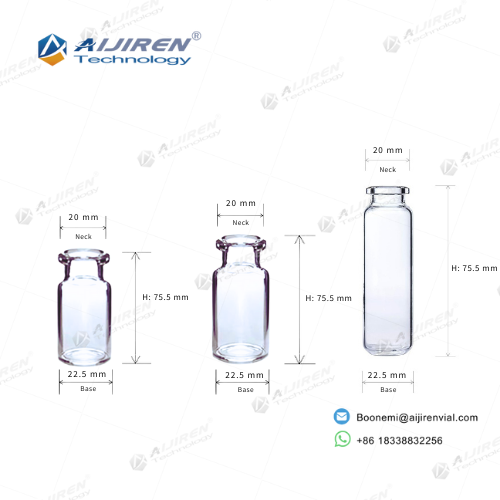

Part No.	Dimensions	Volume	Bottom Type	Glass Type	Best Application	Pcs/Pack
VH0613	22x38mm	6mL	Flat Bottom	5.0 Borosilicate	Karl Fischer Titration	100
VH1013	22.5x46mm	10mL	Flat Bottom	5.0 Borosilicate	Routine GC Analysis	100
VHR1017	22.5x46mm	10mL	Round Bottom	7.0 Borosilicate	High-Temp Headspace	100
VH2017	22.5x75mm	20mL	Flat Bottom	7.0 Borosilicate	General Purpose GC	100
VHR2017-I	22.5x75mm	20mL	Round Bottom	7.0 Borosilicate	CTC PAL Systems	100

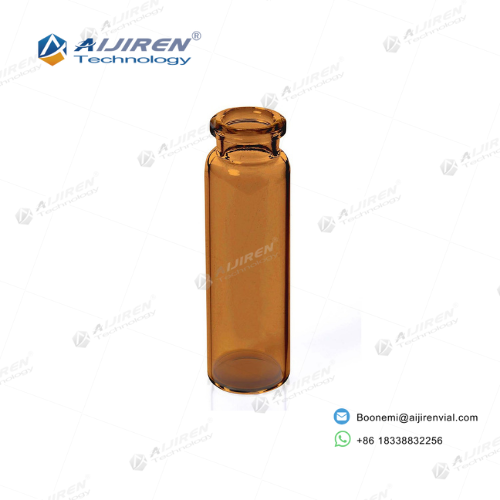

VH2035	22.5x75mm	20mL	Flat (Amber)	5.0 Borosilicate	Light-sensitive Samples	100
VHR2013	22.8x75mm	20mL	Round Bottom	5.0 Borosilicate	High-pressure Research	100
VHR2025	22.8x75mm	20mL	Round w/Spot	5.0 Borosilicate	Sample Identification	100

Performance Item	5.0 Expansion Glass	7.0 Expansion Glass	Advantage for Lab
Material Standard	USP Type I, Class A	USP Type I, Class B	Ensures chemical inertness
Expansion Coeff.	$50 \times 10^{-7}/K$	$70 \times 10^{-7}/K$	Thermal shock resistance
Pressure Rating	Up to 10 Bar (Tested)	Up to 8 Bar (Tested)	Safety during incubation
Hydrolytic Class	Type HGB 1	Type HGB 1	Minimal alkali leaching
Max Temperature	Safe up to 260°C	Safe up to 230°C	High-temp cycle stability
Wall Thickness	1.25mm (Standard)	1.10mm (Standard)	Enhanced burst protection

Brand	Autosampler Model / Series	Cap Size	Compatibility	Performance Benefit
Agilent	7697A, G1888, 7694E	20mm Crimp	Perfect Match	Seamless carousel movement
Waters	7694, 7697 Series	20mm Crimp	Certified	Accurate needle penetration
Shimadzu	HS-20, HS-10, AOC-5000	20mm Crimp	100% Fit	Optimized for robotic arms
PerkinElmer	TurboMatrix HS Series	20mm Crimp	Recommended	Airtight seal for VOCs
CTC PAL	PAL RTC, PAL RSI, COMBI-xt	20mm Crimp	High Grade	Magnetic pickup reliability
Teledyne Tekmar	HT3, Versa	20mm Crimp	Compatible	Consistent pressure handling

Application Scenario

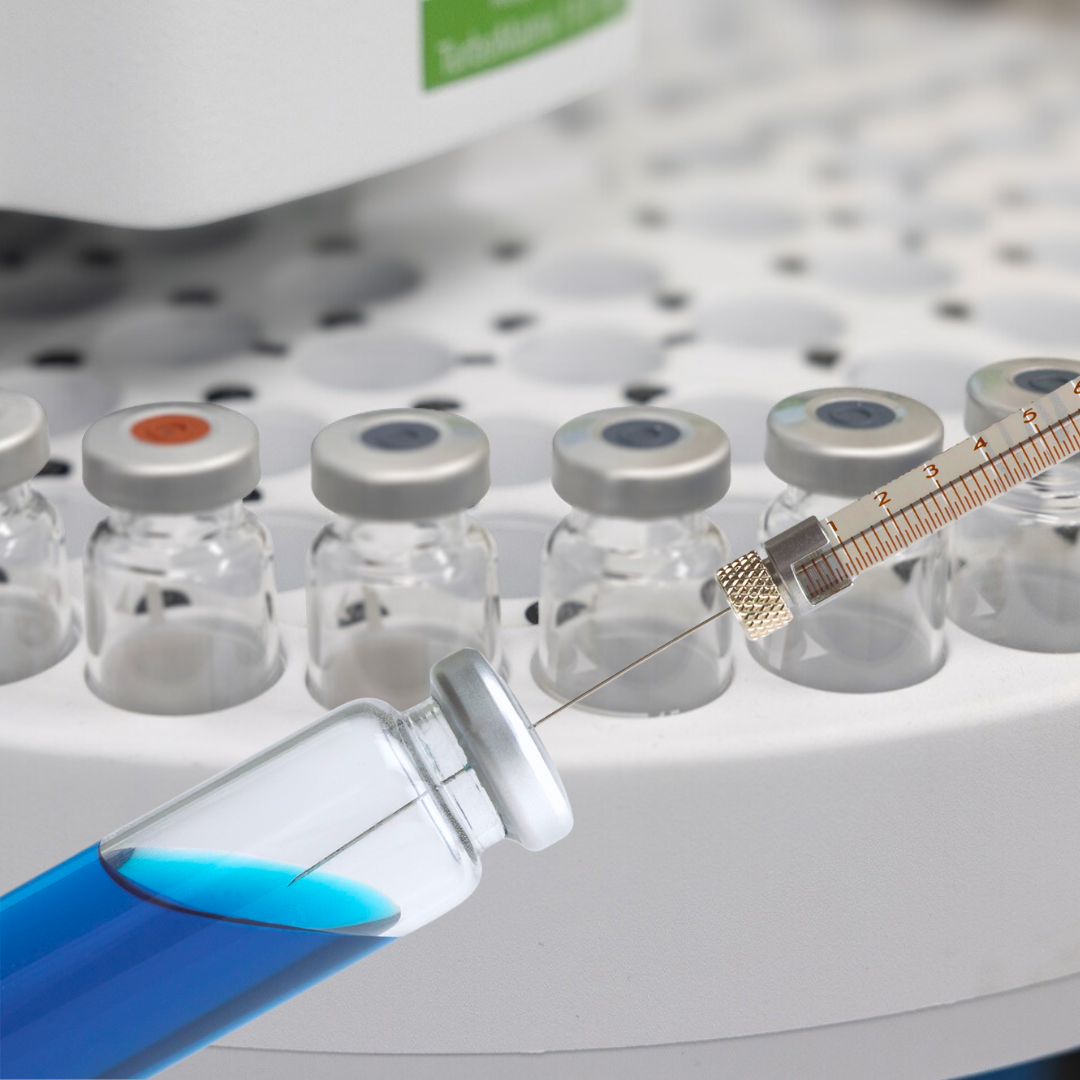

Our headspace vials are widely used in environmental analysis, food safety testing, and pharmaceutical research, compatible with leading GC instruments like Agilent, Shimadzu, and Thermo Fisher.

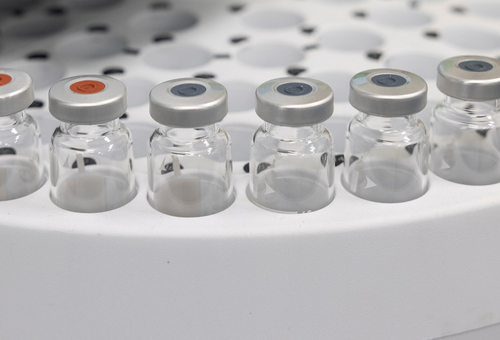

Karl Fischer Titration

6mL (VH0613) vials designed for high-precision water content analysis

Environmental VOC Analysis

Crimp sealing ensures volatile compounds remain trapped for accurate detection.

Pharmaceutical Residual Solvents

Compliance with USP <467> for testing organic impurities in drug substances.

Food and Aroma Profiling

Secure sealing allows effective extraction of aromatic compounds at high temps.

Industrial Quality Control

Robust vials for monitoring chemical purity in manufacturing processes.

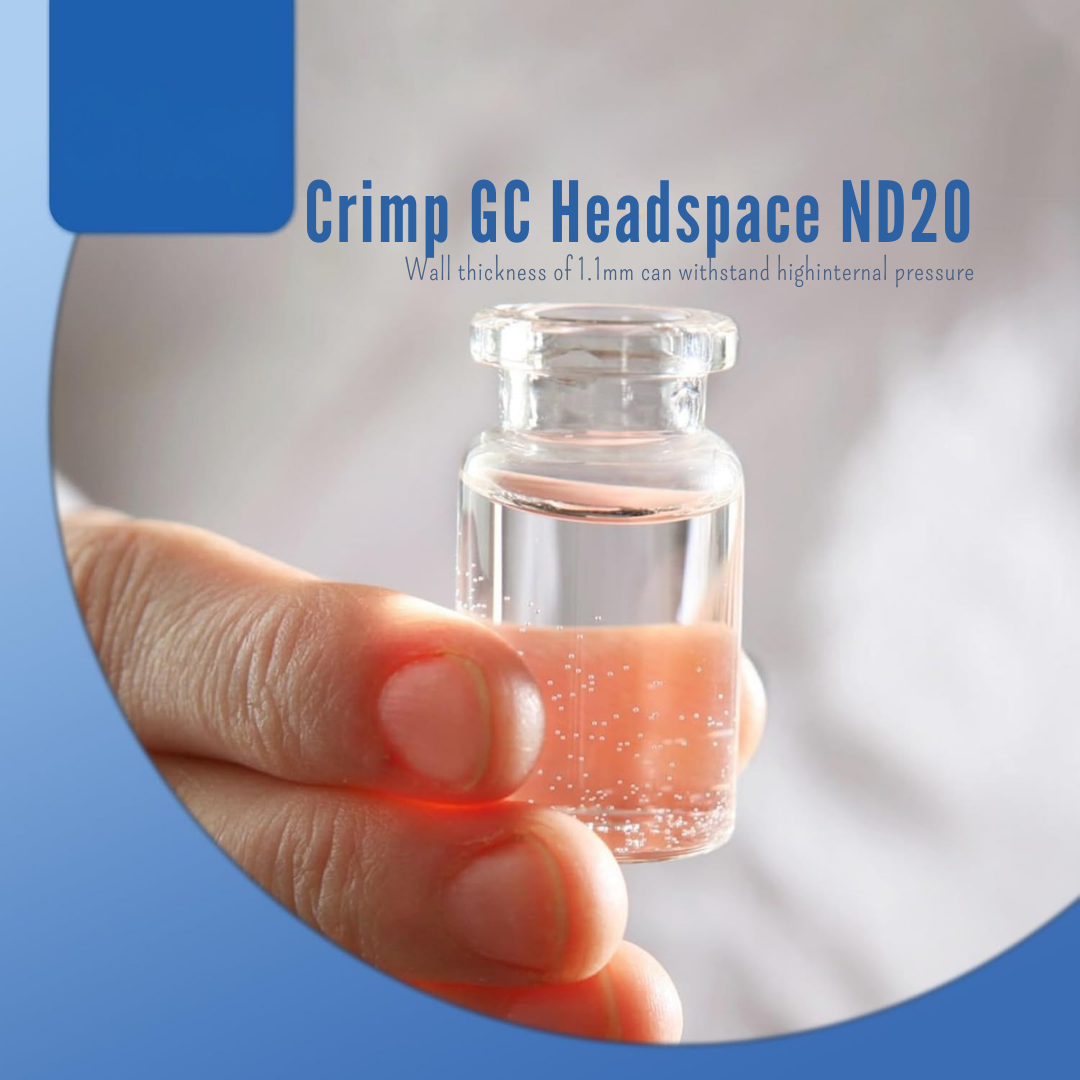

ND18 Technical Advantages

Our commitment ensures every 20mm crimp vial meets international chromatography standards.

Pressure Integrity

Engineered to handle high internal pressures without failure.

Beveled Edge

Beveled rim increases sealing contact to prevent leaks.

Glass Grade Variety

5.0 and 7.0 expansion glass to match thermal needs.

Precision Dimensions

Strict QC on wall thickness ensures zero robotic jams.

Chemical Inertness

High-quality glass prevents sample adsorption and artifacts.

Aug

Packing and Delivery

Packing

Each vial is individually protected in shrink-wrapped trays, 100–200 pcs per inner box, then packed into corrugated export cartons.

Labeling

Each carton includes lot number and product information for traceability.

Delivery Time

Normally 7–15 working days after order confirmation.

Shipping Options

Air freight, sea freight, or express (DHL/UPS/FedEx) available upon request.

Storage Condition

Store in a clean, dry environment at room temperature.
