Product Intro

Engineered for High-Performance Chromatography

Our ND18 18mm precision screw thread headspace vials are the best way to store samples. These vials are made from USP Type I, Class A Borosilicate glass, which makes them very stable in both heat and chemicals. The high-purity glass reduces ion leaching and surface activity, which keeps delicate samples safe during high-temperature incubation cycles (up to 200°C).

Product Features

Superior sealing and pressure handling for reliable analytical results.

Precision Threading: Ensures a leak-proof seal and consistent headspace volume.

Rounded Bottom: Distributes internal pressure evenly during the heating process.

Robotic Compatibility: Perfect for CTC PAL and other robotic arm autosamplers.

Beveled Edge: Provides a robust rim that presses firmly into the septum.

High Grade Glass: 5.0 type borosilicate glass with excellent chemical resistance.

Related products

20mm Crimp-top Aluminum Caps and Septa Collection

20mm Crimp-top Aluminum Caps & Septa

20mm Crimp Top Headspace Vials

18mm Magnetic Screw Caps with Septa

How to choose the most suitable headspace bottle?

Ordering Information

Instrument Compatibility

Technical Performance

Part No.	Description (18mm Screw Thread ND18)	Dimensions	Glass Type	Pcs/Pack
VA101	10mL Clear Headspace Vial, Precision Screw, Round Bottom	22.5x46mm	5.0 Borosilicate	100
VA201	20mL Clear Headspace Vial, Precision Screw, Round Bottom	22.5x75mm	5.0 Borosilicate	100
VA1035	10mL Amber Headspace Vial, Precision Screw, Round Bottom	22.5x46mm	5.0 Borosilicate	100

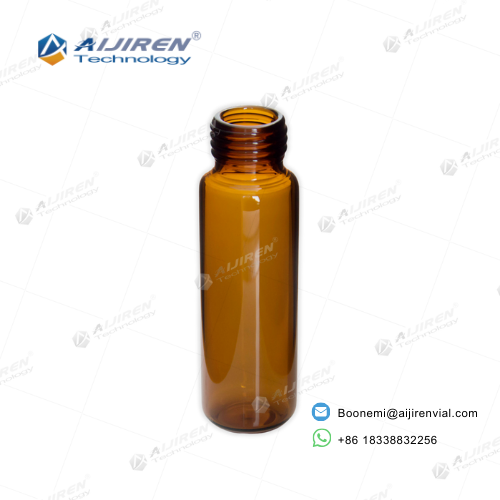

VA2035	20mL Amber Headspace Vial, Precision Screw, Round Bottom	22.5x75mm	5.0 Borosilicate	100
VA2025	20mL Clear Headspace Vial, w/Write-on Spot, Round Bottom	22.5x75mm	5.0 Borosilicate	100

Autosampler Brand	Model / Series Compatibility	Neck Type	Suitability
Agilent	7697A, G1888A, 7694E Headspace Samplers	18mm Screw	Perfect Fit
CTC PAL	PAL RTC, PAL RSI, PAL COMBI-xt (Robotic Arm)	18mm Screw	Certified
Shimadzu	HS-20, HS-10, AOC-5000/6000	18mm Screw	Recommended
Gerstel	MPS (MultiPurpose Sampler) Systems	18mm Screw	High Performance
Thermo Scientific	TriPlus 500 / TriPlus RSH	18mm Screw	Compatible

Feature Item	Technical Specification / Standard	Advantage for Lab
Glass Quality	USP Type I, Class A Borosilicate (5.0 Expansion)	High chemical resistance & thermal stability
Temp. Resistance	Safe operation up to 150°C (Long-term heating)	Ideal for high-temp headspace cycles
Pressure Rating	Internal pressure resistance up to 10 Bar	Prevents vial bursting during evaporation
Neck Finish	ND18 Precision ISO Thread (Standardized)	Eliminates leakages and septum coring
Cleanliness	Produced in Class 100,000 Cleanroom	Minimizes ghost peaks and background noise

Application

Our 18mm precision screw vials are the most reliable choice for complicated sample matrices in a wide range of analytical areas. These vials are the best choice for high-throughput labs all over the world since they keep the environment safe and the drugs pure.

Environmental Testing

Analysis of VOCs in soil and water samples.

Food & Beverage

Detection of flavor compounds and residual solvents.

Pharmaceutical Analysis

Testing for residual solvents in API.

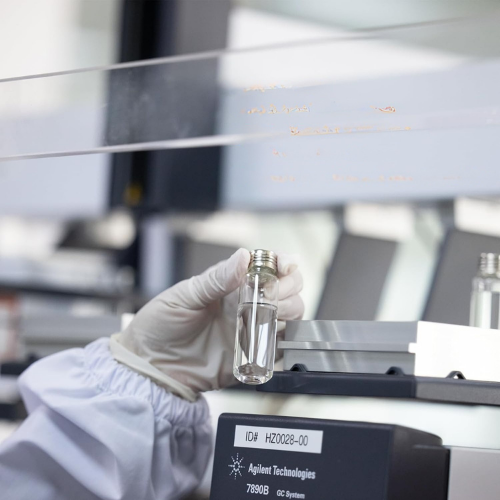

Clinical Chemistry

Reliable preparation for blood and urine analysis.

Industrial Hygiene

Monitoring air quality and chemical exposure.

Technical Superiority of ND18 Precision Screw Thread Systems

Our 18mm screw vials are made to strike a balance between user-friendliness and high-performance sealing, making sure that headspace GC results are always perfect.

Leak-Proof Reliability and Precision Threading:

There is an 18mm ISO precision thread on each vial that has been checked by CNC. With standard crimp vials, the seal depends on the user's manual force. With our screw system, the sealing pressure is always the same and can be repeated, which effectively prevents sample loss and contamination from the outside.

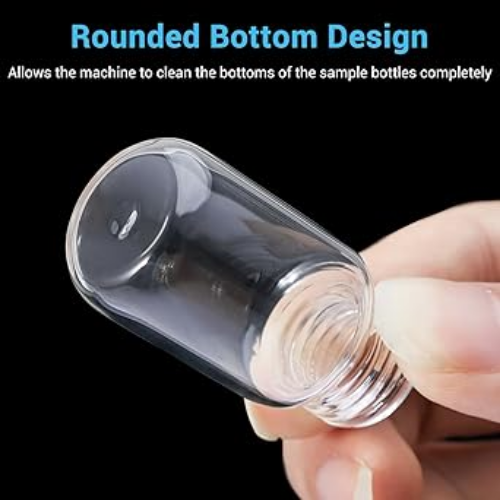

Better pressure distribution (rounded bottom

The rounded bottom design is not just for looks; it is made to equally spread the internal gas pressure throughout the glass surface. This lets the vial hold up to internal pressures of more than 10 Bar during high-temperature incubation (up to 150°C - 200°C), which stops the autosampler from breaking the vial.

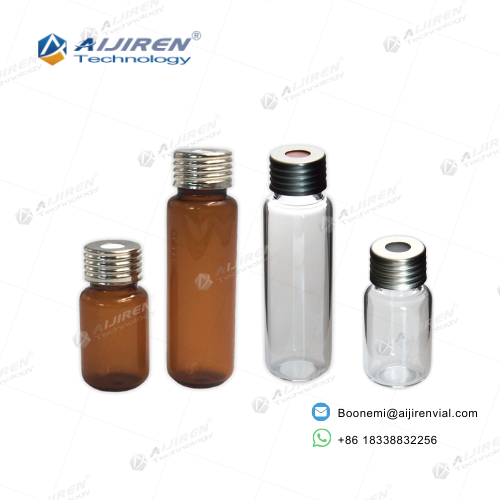

Robotic integration that works perfectly and magnetic precision:

Our vials are 99% compatible with magnetic pick-up tools since they are dimensionally designed (22.5mm OD). The exact height and rim shape make it possible for robotic arms (such the CTC PAL and Agilent 7697A) to move vials without any slipping, which keeps high-throughput operations going.

Better Hydrolytic Resistance (USP Type I):

Our vials are made of 5.0 expansion borosilicate glass, which means that the surface is chemically inert. This greatly lowers the chance of pH changes and metal ion leaching, which is very important for analyzing polar volatile chemicals and fragile scent

Optimized Compression of the Septum:

The ND18 neck finish has a beveled edge that makes a strong sealing surface that presses firmly into the septum. This design keeps the septum flat and safe, so it can't be pushed into the vial during high-pressure injections or when the needle is used multiple times.

Sep

Microscopic Structures in Chromatography Vials: Potential Impact on Sample Storage and Analysis

Learn about the impact of structural flaws in chromatography vials on sample storage and analysis, including issues like bubbles, cracks, and wall thickness variations.

Nov

Decoding Chromatography Vials: A Comprehensive Guide to Materials

Explore the world of chromatography vials – from glass to plastic, PTFE coatings, and silicone septa. Learn how these materials impact accurate analyses! Discover more.

Jun

8-425 Screw HPLC Sample Vial from Aijiren

Packing and Delivery

Packing

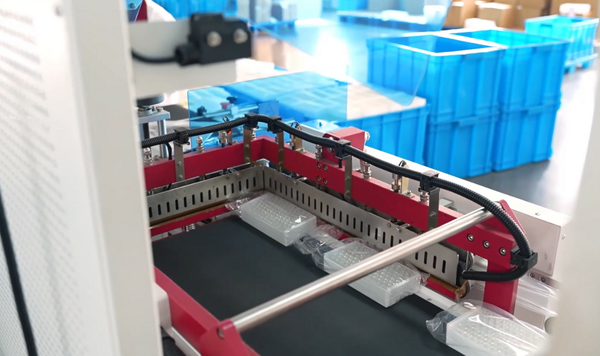

Each vial is individually protected in shrink-wrapped trays, 100–200 pcs per inner box, then packed into corrugated export cartons.

Labeling

Each carton includes lot number and product information for traceability.

Delivery Time

Normally 7–15 working days after order confirmation.

Shipping Options

Air freight, sea freight, or express (DHL/UPS/FedEx) available upon request.

Storage Condition

Store in a clean, dry environment at room temperature.

Company Profile

Zhejiang Aijiren Technology Co., Ltd.

A dedicated original manufacturer of chromatography and laboratory consumables.

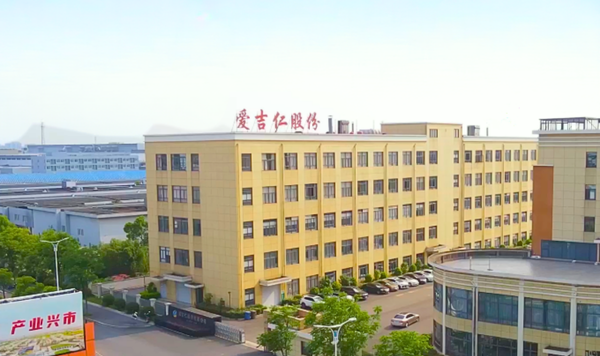

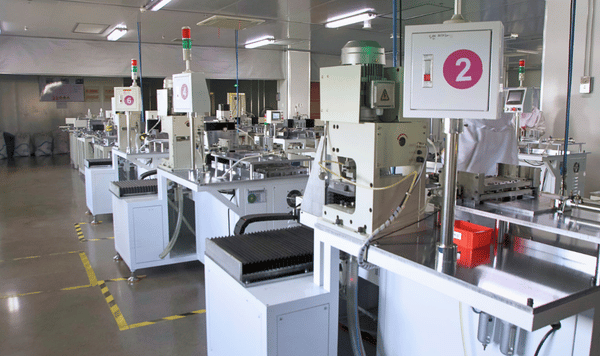

10,000+ m² modern facility with Class 100,000 cleanrooms

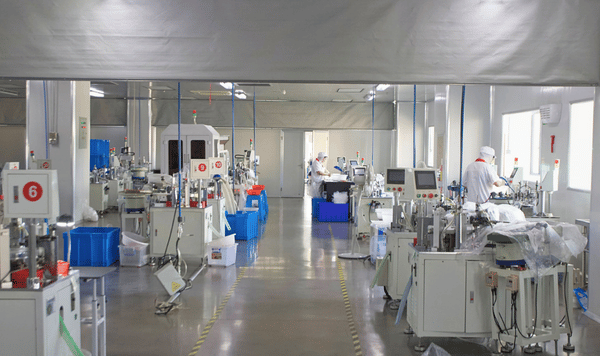

Automated production lines and rigorous in-house quality control
