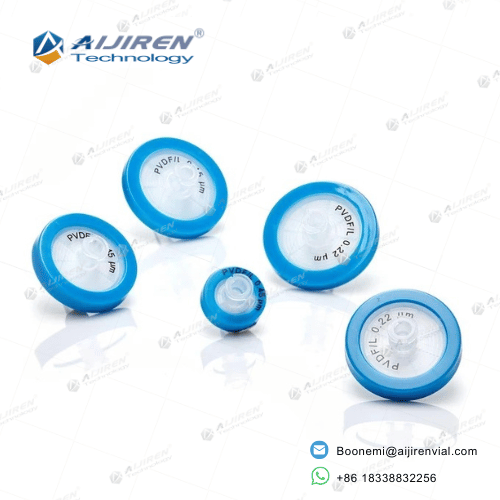

Economy Hydrophilic PVDF Syringe Filters

Description

Feature

Specification

Application

Product

FAQ

Packing and Delivery

Product Description

Engineered for high-throughput sample preparation, our blue-rimmed PVDF filters deliver rapid flow rates with ultra-low protein binding, ensuring maximum sample recovery for biological and chemical assays.

Featuring a robust polypropylene housing, these economy filters withstand high operating pressures, providing a leak-free experience for routine HPLC/GC filtration without breaking your lab budget.

Applications

Ideal for diverse analytical applications requiring high-purity filtration.

HPLC Sample Prep: Removal of particulates to extend column life.

Biological Fluids: Clarification of protein-containing solutions.

Solvent Filtration: Suitable for both aqueous and mild organic solvents.

Environmental Testing: General filtration for water and soil extracts.

Food & Beverage: Quality control testing and beverage analysis.

Related products

Assorted Laboratory Syringe Filters Nylon PTFE PES PVDF MCE

Universal Laboratory Syringe Filters and Membranes Series (Nylon, PTFE, PES, PVDF, MCE, CA, PP)

Lab-grade Non-sterile PTFE Syringe Filters (Hydrophilic/Hydrophobic)

pes 0.22 non-sterile syringe filter yellow

Yellow PES Syringe Filters (Non-sterile) - 13/25/33mm Available

Economy type MCE syringe filter for routine HPLC testing

mce-syringe-filters-for-biological-aqueous-filtration

Economy type Nylon syringe filter for routine HPLC testing

nylon-non-sterile-syringe-filters-economy-type

Specification

Basic Information

Product Specification

Product Name	Economy Hydrophilic PVDF Syringe Filter (Blue)
Material	Hydrophilic PVDF
Housing Material	Medical Grade Polypropylene (PP)
Effective Filtration Area	13mm: 1.13cm² / 25mm: 4.15cm² / 33mm: 4.60cm²
Pore Size	0.22 μm / 0.45 μm
Process Volume	<10mL (13mm) / <100mL (25mm) / <150mL (33mm)
Max Operating Temp	100°C
Max Operating Pressure	87 psi (6.0 bar)
pH Range	1-12
Package	100 pcs/pk

Cat. NO.	Diameter	Pore Size	Color	Description	Package
FF1322	13 mm	0.22 μm	Blue	Hydrophilic PVDF, Non-Sterile	100 pcs/pk
FF1345	13 mm	0.45 μm	Blue	Hydrophilic PVDF, Non-Sterile	100 pcs/pk
FF2522	25 mm	0.22 μm	Blue	Hydrophilic PVDF, Non-Sterile	100 pcs/pk
FF2545	25 mm	0.45 μm	Blue	Hydrophilic PVDF, Non-Sterile	100 pcs/pk
FF3322	33 mm	0.22 μm	Blue	Hydrophilic PVDF, Non-Sterile	100 pcs/pk
FF3345	33 mm	0.45 μm	Blue	Hydrophilic PVDF, Non-Sterile	100 pcs/pk

Quality Assurance & Specifications

Manufactured in ISO Class cleanrooms to ensure purity and reliability.

Sterility Assurance

Sterile products are Gamma Iradiated. Verified sterile and pyrogen-free.

Wide Range Availability

Huge inventory of diverse specifications ready for immediate dispatch

Batch Traceability

Lot numbers printed on every package for full quality tracking.

Dimensional Check

Precise dimensions ensure compatibility with all standard luer syringes.

HPLC Certified

Tested for low extractables to ensure no ghost peaks in your sensitive UV detection.

FAQ

Does the hydrophilic PVDF membrane require pre-wetting with alcohol?

No. Our hydrophilic PVDF is specially treated to allow direct filtration of aqueous solutions, saving time and reducing the risk of contamination.

Why choose PVDF over PES for protein solutions?

PVDF has much lower non-specific protein binding than PES, making it the preferred choice when maximizing protein recovery is critical for your analysis.

Is this "Economy Type" compatible with HPLC grade organic solvents?

Yes. It is compatible with most alcohols and mild organic solvents. However, for aggressive chemicals (like THF or strong acids), we recommend our PTFE series.

Can these filters be autoclaved if I need a sterile sample?

These are non-sterile economy filters. While the material is heat-resistant, we recommend purchasing our pre-sterilized versions if sterility is a critical requirement.

What is the benefit of the 33mm diameter version?

The 33mm version offers a larger filtration area (4.6cm²) compared to 25mm, which results in faster flow rates and the ability to process larger sample volumes before the filter clogs.
