Product Description

Chromatography Optimized: The non-sterile PTFE membrane undergoes rigorous cleaning to ensure ultra-low extractables. In HPLC analysis, it eliminates interference peaks, protecting columns and extending instrument life.

Red-Ring Reinforcement: Designed for high-volume non-sterile operations, the red-ring housing uses high-pressure molding to prevent leakage or cracking when filtering organic solvents, ensuring a stable lab workflow.

Applications

Ideal for routine chemical analysis and sample pre-treatment.

Solvent Purification: Debris removal from small-scale reagents.

Aggressive Chemicals: Filtration of strong acids, bases, and oxidants.

Solvent Filtration: Suitable for both aqueous and mild organic solvents.

Environmental Testing: Industrial wastewater analysis (non-biological).

Air Monitoring: Hydrophobic filters used for gas dust removal in sampling pumps.

Related products

hydrophilic-pvdf-syringe-filters-economy

Economy type Nylon syringe filter for routine HPLC testing

nylon-non-sterile-syringe-filters-economy-type

Economy type MCE syringe filter for routine HPLC testing

mce-syringe-filters-for-biological-aqueous-filtration

Assorted Laboratory Syringe Filters Nylon PTFE PES PVDF MCE

Universal Laboratory Syringe Filters and Membranes Series (Nylon, PTFE, PES, PVDF, MCE, CA, PP)

pes 0.22 non-sterile syringe filter yellow

Yellow PES Syringe Filters (Non-sterile) - 13/25/33mm Available

Specification

Basic Information

Product Specification

Item	Parameters

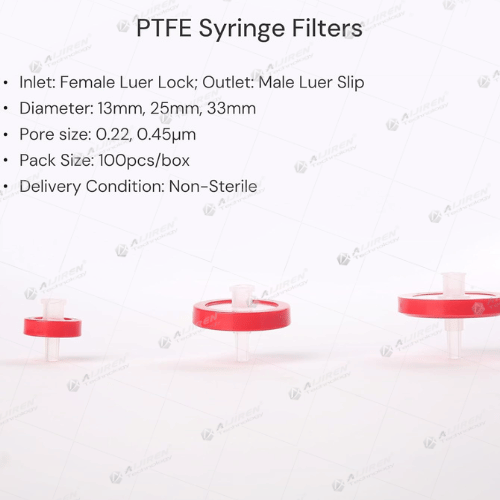

Product Name	Economy PTFE Non-sterile Syringe Filter
Material	PTFE Hydrophilic / PTFE Hydrophobic

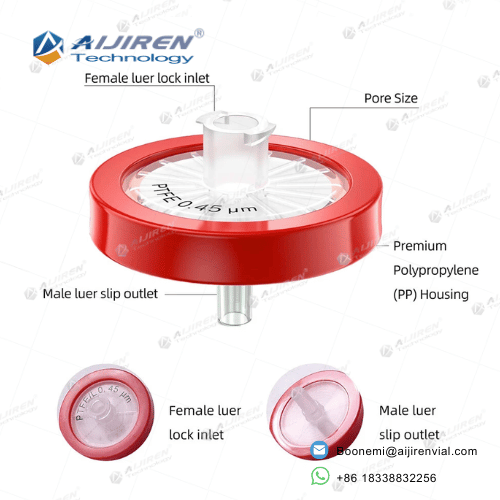

Material of Housing	Polypropylene (PP) with Red Reinforcing Ring
Effective Filtration Area	13mm/1.13cm²; 25mm/4.15cm²; 33mm/5.20cm²
Pore Size	0.22 μm / 0.45 μm
Process Volume	＜10mL(13mm); ＜100mL(25mm); ＜150mL(33mm)
Maximum Operating Temperature	130℃
Maximum Operating Pressure	87 psi (6.0 bar)
pH Range	1-14
Application	HPLC/GC Sample Preparation; Organic Solvent Filtration; Chemical Analysis

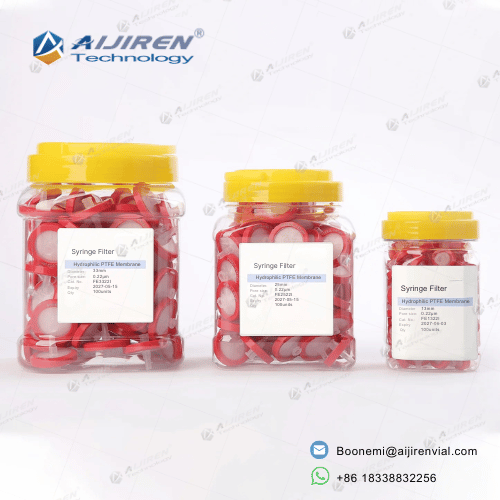

Package	100 pcs Packed in one Box

Cat. NO.	Diameter	Pore Size	Sterilization	Description	Package

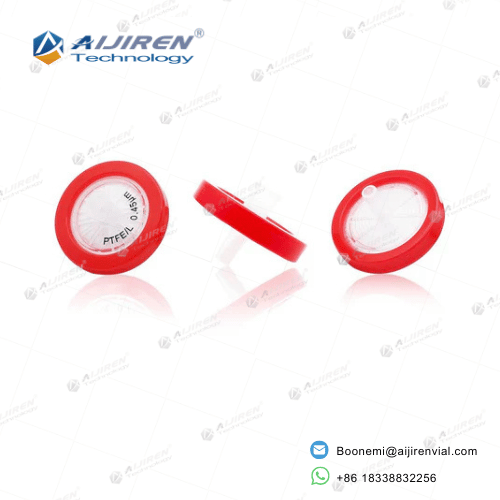

PTFE Hydrophilic
FE1322I	13 mm	0.22 μm	NO	PTFE Hydrophilic, Red Outer Ring, Non-sterile	100 pcs/pk
FE1345I	13 mm	0.45 μm	NO	PTFE Hydrophilic, Red Outer Ring, Non-sterile	100 pcs/pk
FE2522I	25 mm	0.22 μm	NO	PTFE Hydrophilic, Red Outer Ring, Non-sterile	100 pcs/pk
FE2545I	25 mm	0.45 μm	NO	PTFE Hydrophilic, Red Outer Ring, Non-sterile	100 pcs/pk
FE3322I	33 mm	0.22 μm	NO	PTFE Hydrophilic, Red Outer Ring, Non-sterile	100 pcs/pk
FE3345I	33 mm	0.45 μm	NO	PTFE Hydrophilic, Red Outer Ring, Non-sterile	100 pcs/pk
PTFE Hydrophobic
FE1322	13 mm	0.22 μm	NO	PTFE Hydrophobic, Red Outer Ring, Non-sterile	100 pcs/pk
FE1345	13 mm	0.45 μm	NO	PTFE Hydrophobic, Red Outer Ring, Non-sterile	100 pcs/pk
FE2522	25 mm	0.22 μm	NO	PTFE Hydrophobic, Red Outer Ring, Non-sterile	100 pcs/pk
FE2545	25 mm	0.45 μm	NO	PTFE Hydrophobic, Red Outer Ring, Non-sterile	100 pcs/pk
FE3322	33 mm	0.22 μm	NO	PTFE Hydrophobic, Red Outer Ring, Non-sterile	100 pcs/pk
FE3345	33 mm	0.45 μm	NO	PTFE Hydrophobic, Red Outer Ring, Non-sterile	100 pcs/pk

Quality Assurance & Specifications

Manufactured in ISO Class cleanrooms to ensure purity and reliability.

Sterility Assurance

Sterile products are Gamma Iradiated. Verified sterile and pyrogen-free.

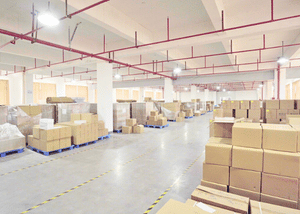

Wide Range Availability

Huge inventory of diverse specifications ready for immediate dispatch

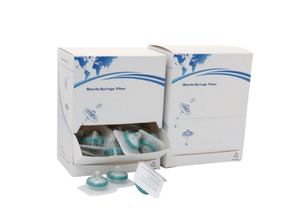

Batch Traceability

Lot numbers printed on every package for full quality tracking.

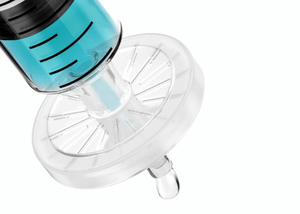

Dimensional Check

Precise dimensions ensure compatibility with all standard luer syringes.

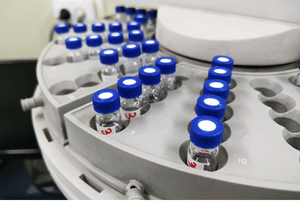

HPLC Certified

Tested for low extractables to ensure no ghost peaks in your sensitive UV detection.

FAQ

Can these non-sterile PTFE syringe filters be used for biological cell culture?

Since these filters are non-sterile, they are not recommended for direct use in sterile cell culture environments unless you autoclave them first. They are primarily designed for analytical chemistry, HPLC sample preparation, and industrial solvent filtration.

What is the benefit of the "Red Ring" on the filter housing?

The Red Ring is a reinforcement feature created through secondary injection molding. It significantly increases the burst pressure resistance of the filter, ensuring the housing remains intact even when filtering high-viscosity samples or when using high manual pressure.

Which should I choose, Hydrophilic or Hydrophobic PTFE?

Use Hydrophilic PTFE for aqueous solutions or mixtures of water and organic solvents; it requires no pre-wetting. Use Hydrophobic PTFE for pure organic solvents or gas filtration; if using it for aqueous liquids, you must pre-wet the membrane with an alcohol (e.g., Ethanol or IPA) first.

Are these filters compatible with strong acids and bases?

Yes. PTFE is one of the most chemically resistant materials available. These filters are compatible with a pH range of 1-14, making them ideal for concentrated acids and strong alkaline solutions that would damage other membrane types like Nylon or PES.

What is the benefit of the 33mm diameter version?

The 33mm version offers a larger filtration area (4.6cm²) compared to 25mm, which results in faster flow rates and the ability to process larger sample volumes before the filter clogs.

Aug

Packing and Delivery

Packing

Each vial is individually protected in shrink-wrapped trays, 100–200 pcs per inner box, then packed into corrugated export cartons.

Labeling

Each carton includes lot number and product information for traceability.

Delivery Time

Normally 7–15 working days after order confirmation.

Shipping Options

Air freight, sea freight, or express (DHL/UPS/FedEx) available upon request.

Storage Condition

Store in a clean, dry environment at room temperature.
