Wholesale 1.5mL Crimp Top Vials | USP Type 1 Borosilicate Glass

Uncompromising Sample Integrity for Precise Analysis

The V1117-V1145 series represents the industry standard for 11mm crimp neck vials. Utilizing high-quality borosilicate glass, these vials ensure minimal pH shifts and maximum chemical resistance. Whether using the 7.0 type for cost-effective routine work or the 5.0 type for high-precision assays, each vial is built for consistency.

Our V1117-V1145 series is the industry standard for 11mm jaw sampling bottles. The series features high-quality borosilicate glass, ensuring extremely low pH shifts and excellent chemical resistance. Whether you choose the cost-effective Type 7.0 glass for routine analysis or the more stable Type 5.0 glass for high-precision testing, you can guarantee consistent results with every syringe vial.

Product Feature

Engineered Features for Professional Laboratory Efficiency

Hermetic Integrity: The 11mm crimp seal provides the most secure, airtight closure available, making it the premier choice for volatile organic compound (VOC) analysis and preventing sample evaporation.

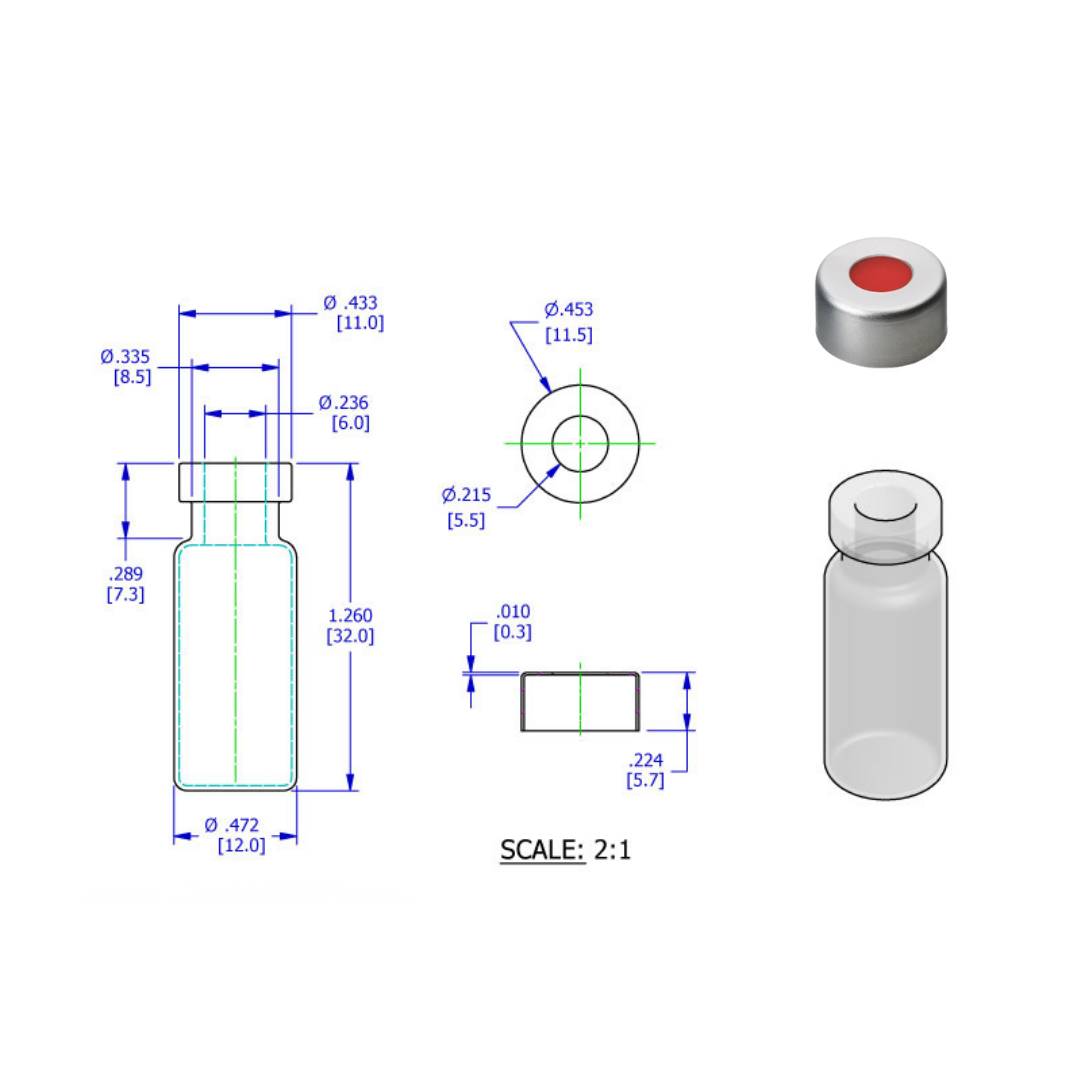

Wide Opening Design: A 40% larger target area for the autosampler needle significantly reduces the risk of bent needles and hardware downtime during high-throughput sequences.

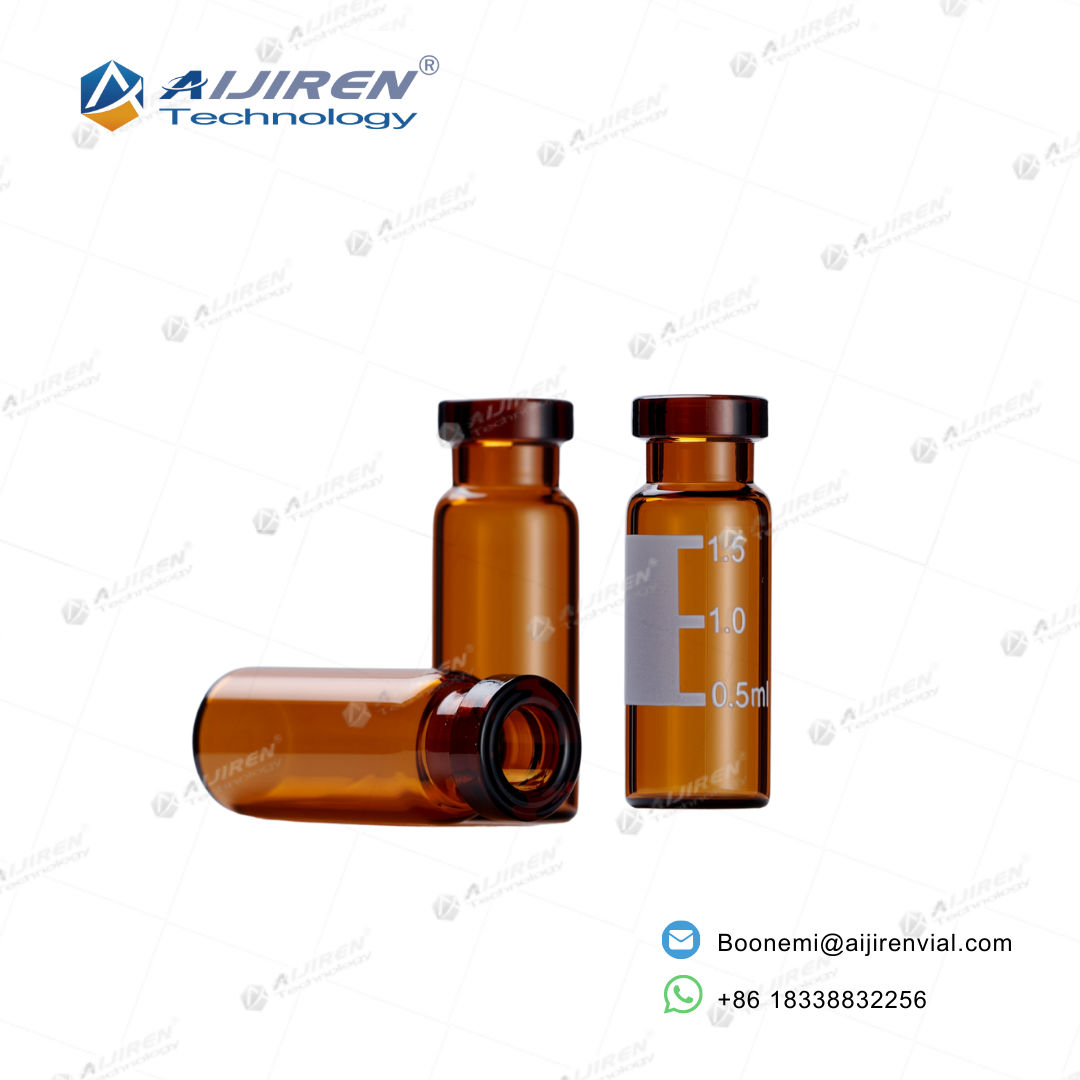

UV Protection: Amber glass (V1135, V1145 etc.) effectively blocks light between 300-500nm, protecting sensitive analytes like vitamins and pigments from photodegradation.

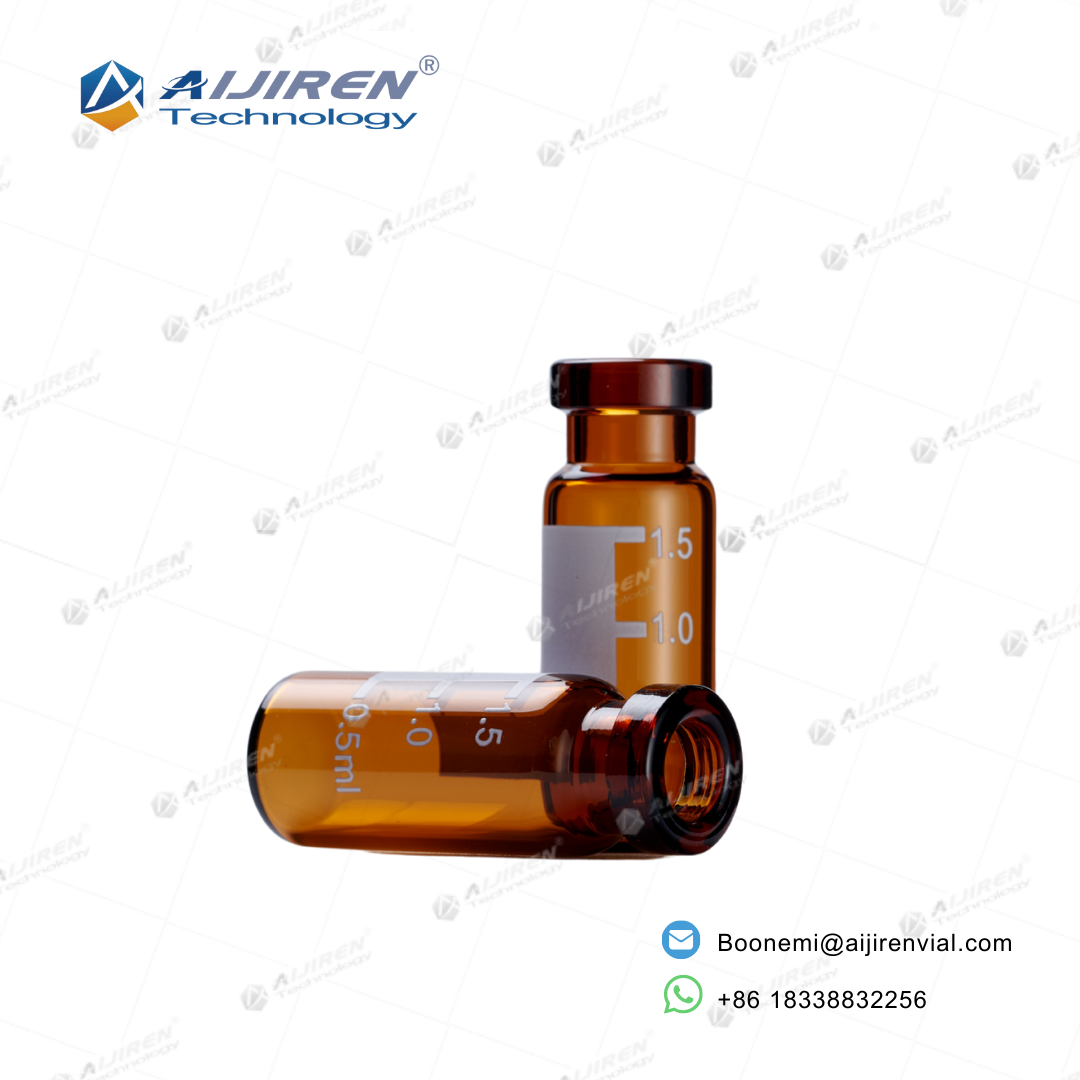

Surface Deactivation: The silanized option (V1147-S) creates a hydrophobic, inert surface that eliminates analyte adsorption, crucial for trace-level recovery of polar compounds.

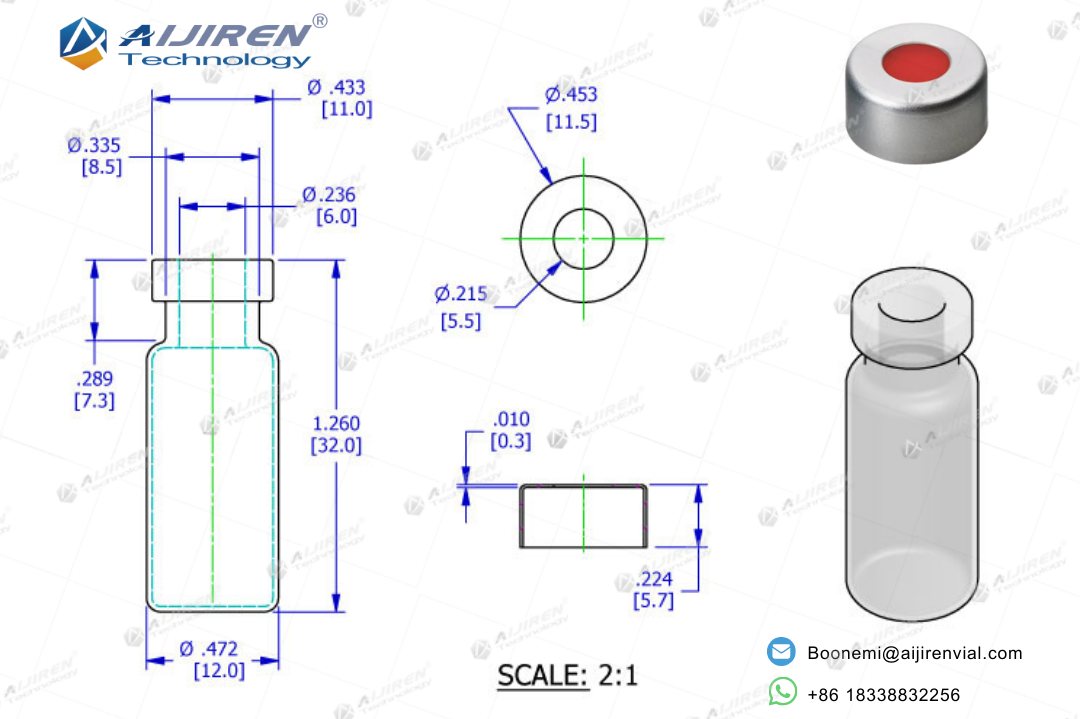

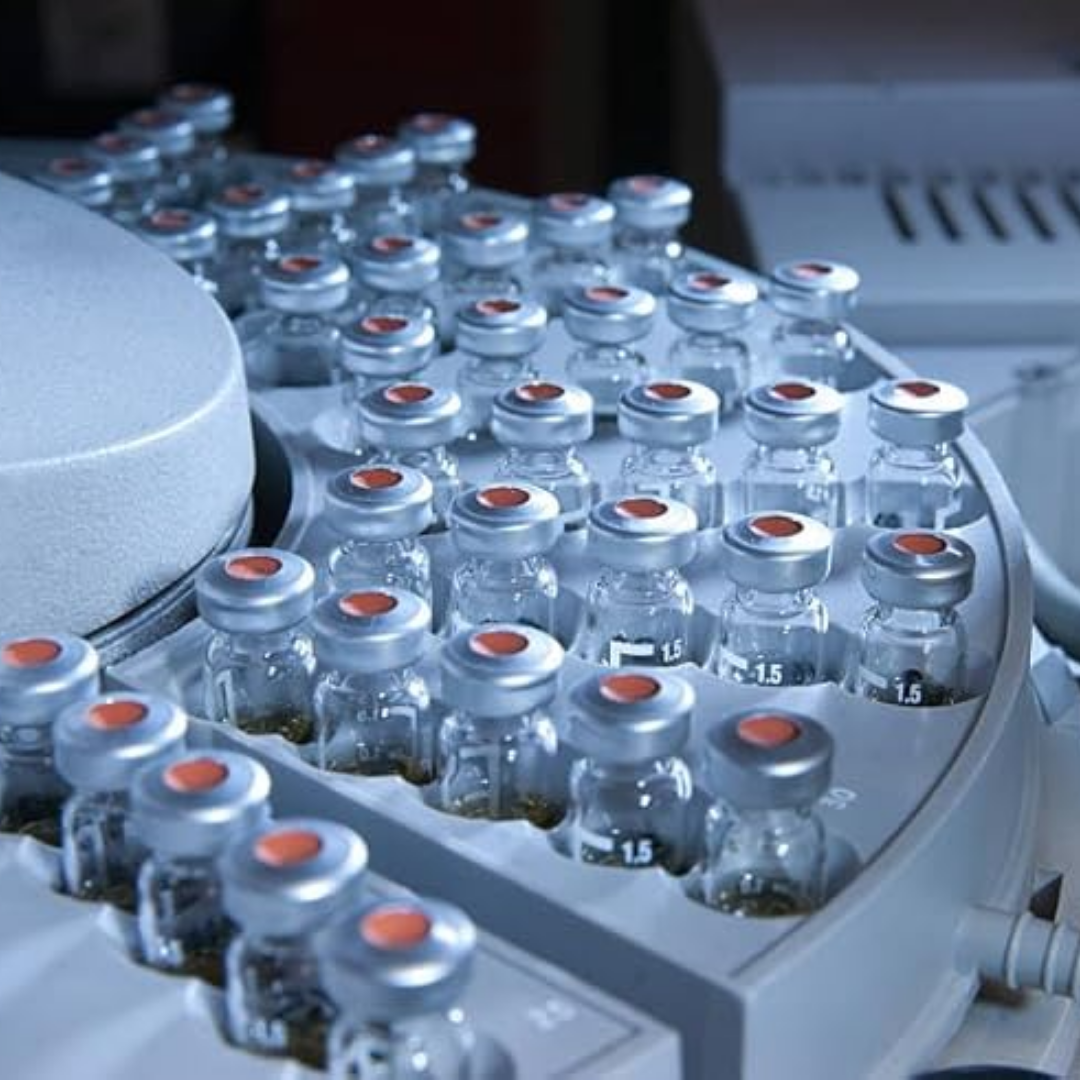

Dimensional Consistency: Strict $11.6 \times 32\text{mm}$ tolerances ensure 100% compatibility with Agilent, Waters, and Shimadzu robotic arms and tray systems.

Related products

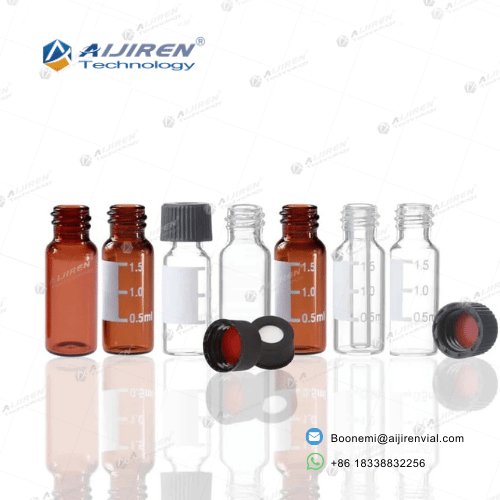

1.5mL 10-425 screw thread HPLC vials in clear and amber glass

1.5mL 10-425 Screw Thread Vials, Wide Opening HPLC Autosampler Vials

4mL 13-425 ND13 Vials in Clear and Amber Glass

4mL 13-425 Screw Neck Vials ND13 for Waters & Shimadzu

2ml 9mm Short Thread Vial ND9 Wide Opening for HPLC

2ml 9mm Short Thread Vials ND9 with a wide opening

Complete set of 1ml shell vials with 8mm PE plugs and caps

1mL Shell Vial (8.2*40mm) – 8mm Soft PE Plug for High-Speed Autosamplers

10-425 Screw Caps with PTFE Silicone Septa ND10

10-425 Thread Caps with PTFE/Silicone Septa ND10 Vials Closures

11mm Silver Aluminum Crimp Caps with Red PTFE White Silicone Septa for ND11 Vials

11mm crimp cap septa hplc gc nd11 vial seals

9mm Blue Short Thread Cap with Red PTFE and White Silicone Septa

9mm Short Thread Screw Caps and Septa, Pre-Slit, Bonded, and Made of PTFE/Silicone

Product Specification

Technical Dimensions and Material Composition

Glass Expansion and Thermal Performance

Quality Control Standards

Part No.	Glass Type	Color	Marking Spot	Qty/Pack
V1117	7.0 Type	Clear	No	100
V1127	7.0 Type	Clear	Yes	100
V1137	7.0 Type	Amber	Yes	100
V1113	5.0 Type	Clear	No	100
V1145	5.0 Type	Amber	Yes	100

Property	5.0 Type Glass (Class B)	7.0 Type Glass (Budget)
Linear COE (alpha)	51 x 10^-7 / deg C	70+ x 10^-7 / deg C
Hydrolytic Class	Type I (Neutral Borosilicate)	Type I (Low Boron)
Best Use	High Precision HPLC / GC	Routine Analysis / Storage

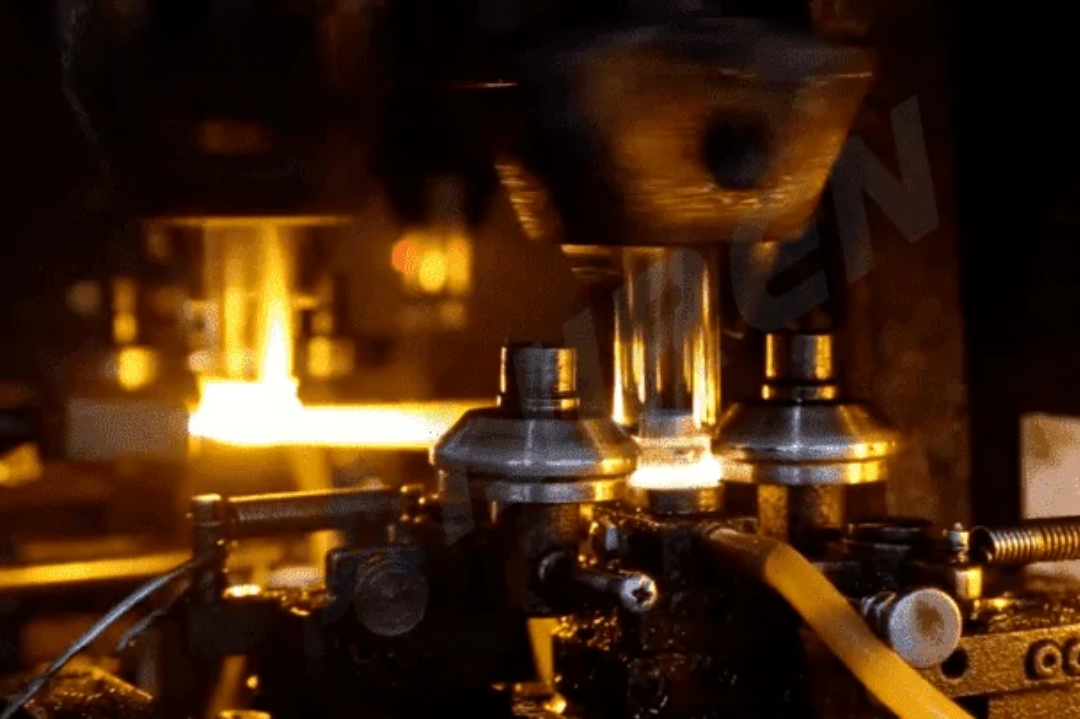

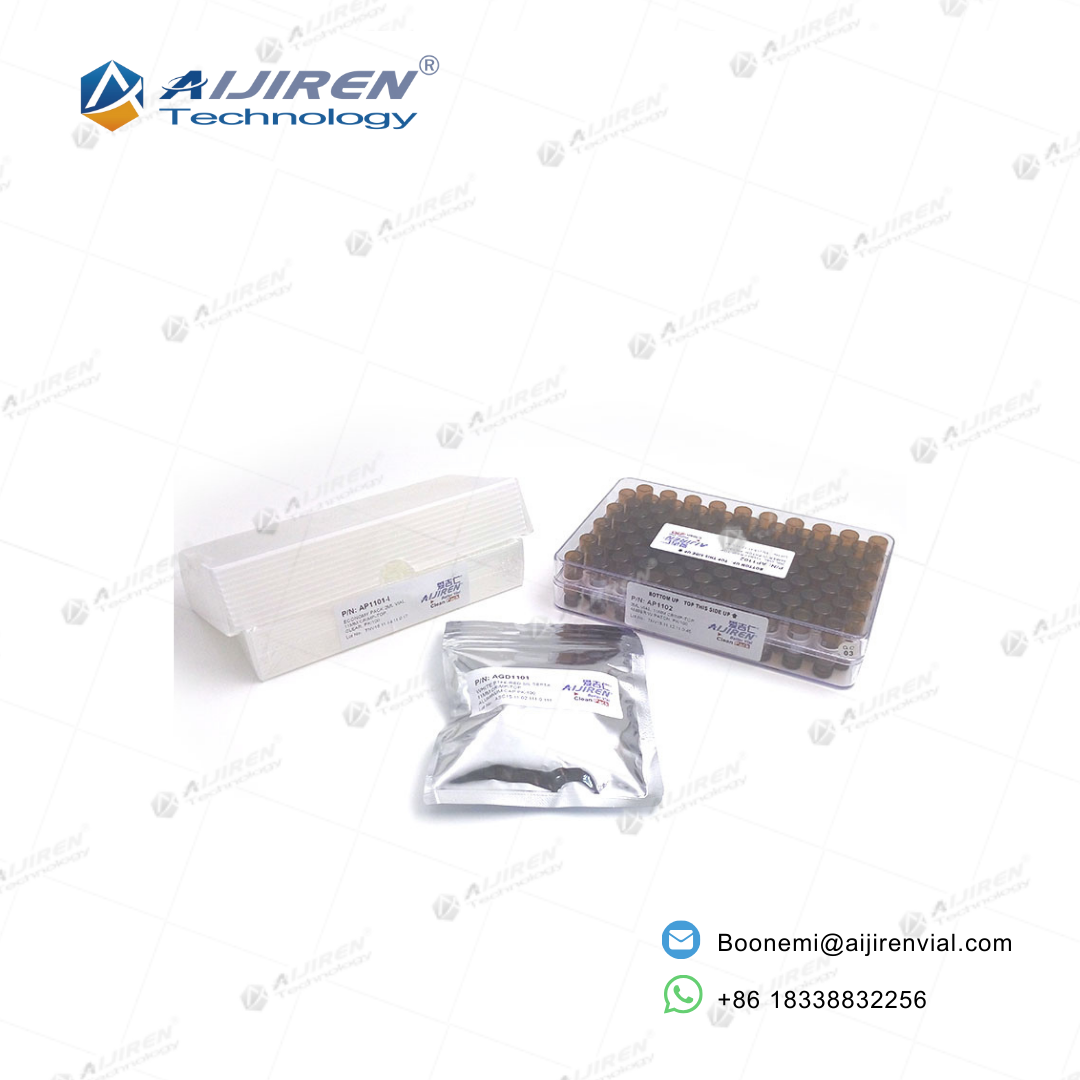

All vials are produced in an ISO 9001 certified facility within a Class 100,000 cleanroom environment. Every lot is GC/MS verified to ensure low extractable levels and zero contamination of your chromatograms.
