9mm Screw Caps with Septa

The Best Seal for ND9 Vials

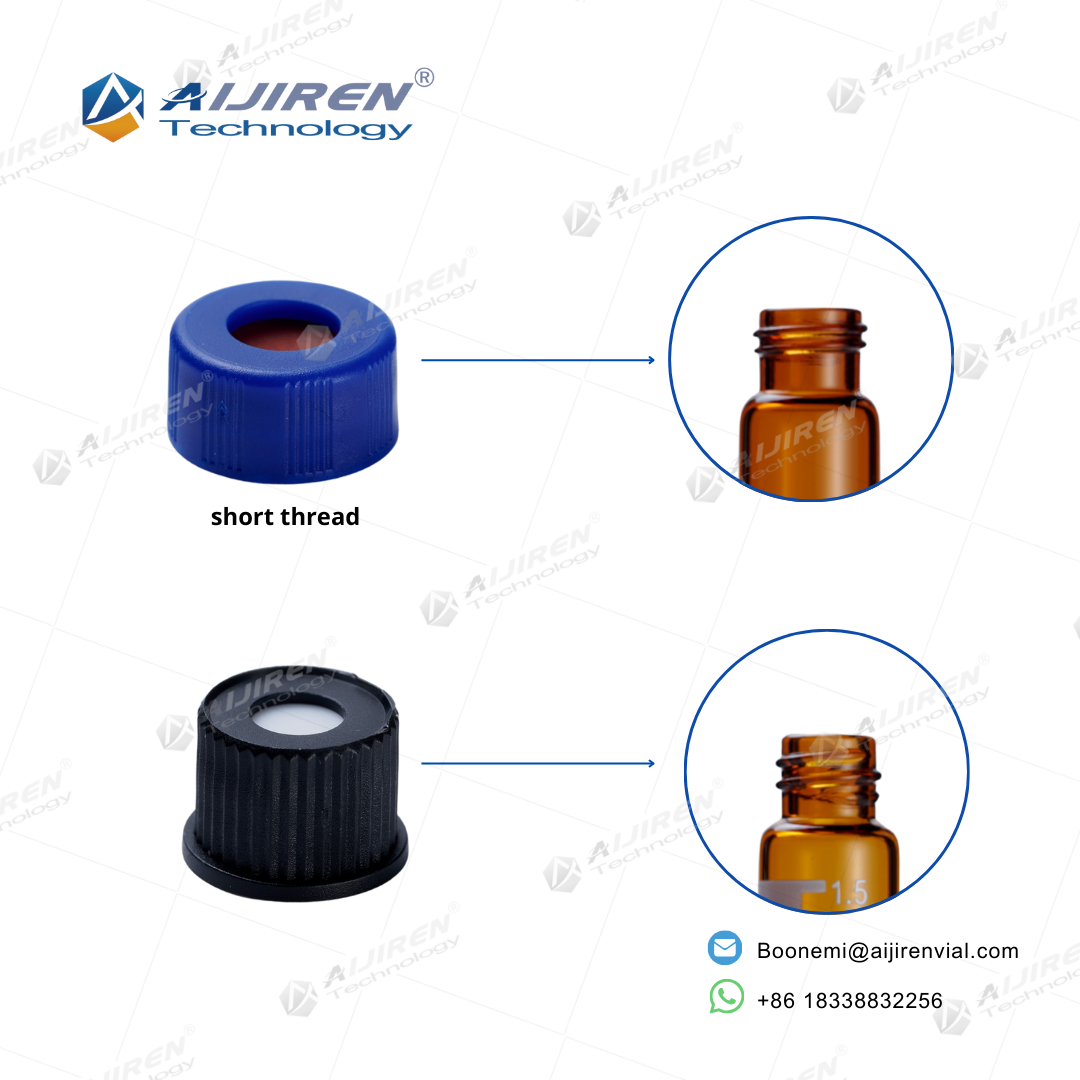

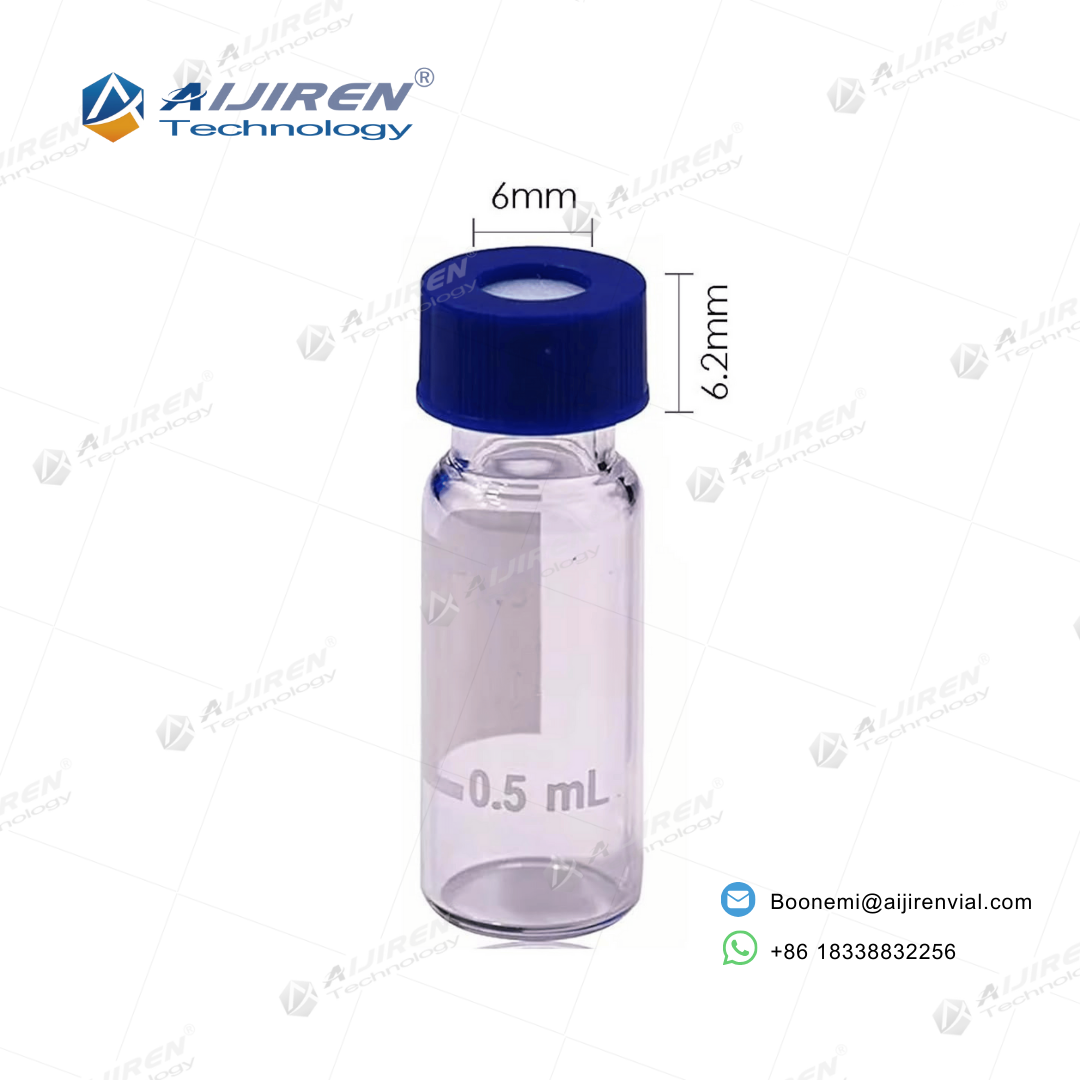

These 9mm Short Thread Caps are made to fit perfectly with our ND9 Wide Opening Vials. The short thread design makes it easy to seal the cap tightly with just a quick half-turn. This makes the lab 40% more efficient than using regular screw caps.

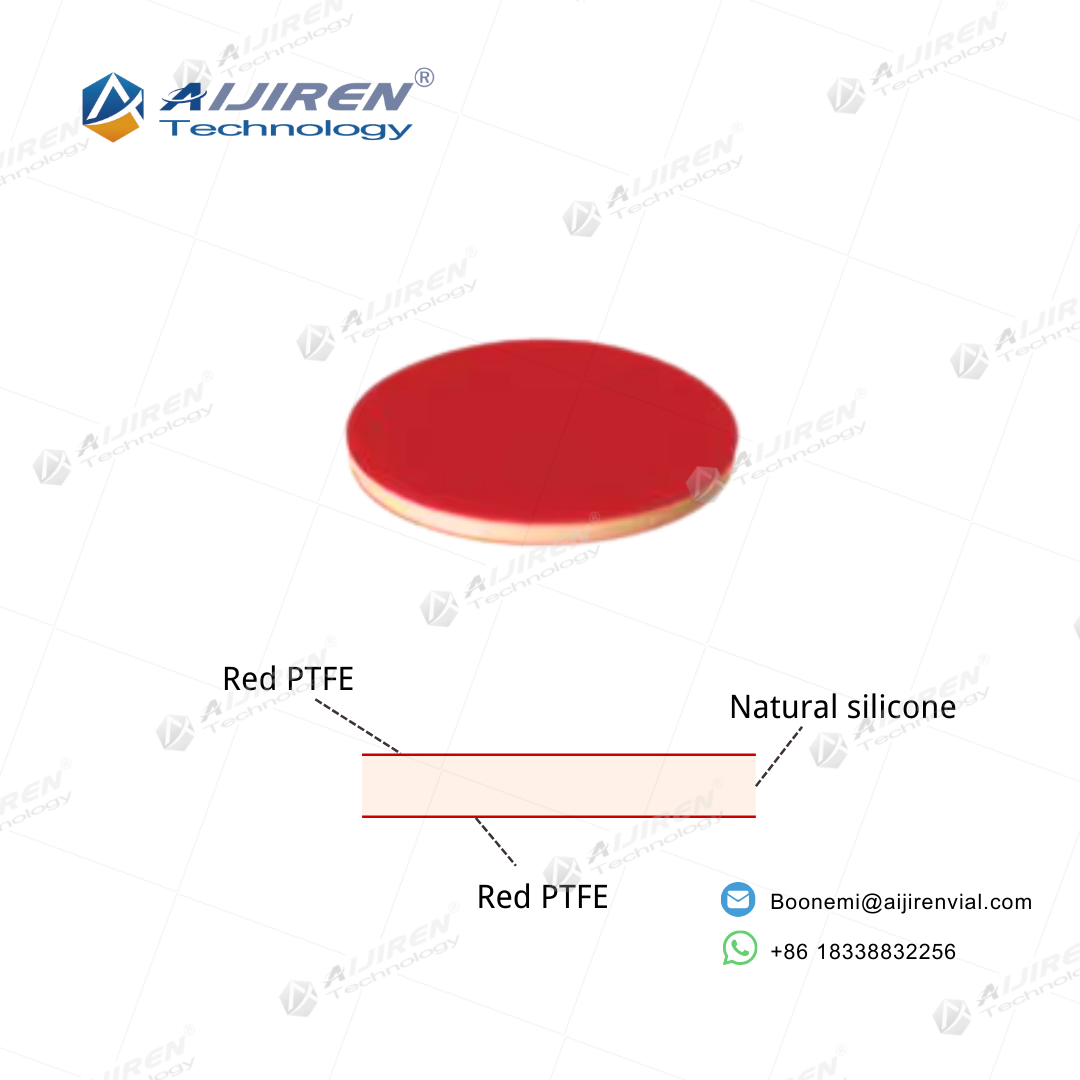

We only use PTFE and silicone that are of chromatographic grade. The PTFE layer (the one that faces the sample) offers the best chemical resistance, and the Silicone layer makes sure that the seal stays intact after many injections.

Why Choose Bonded and Pre-slit Caps?

Getting rid of the two big problems with autosampler operations: septa push-through and vacuum formation.

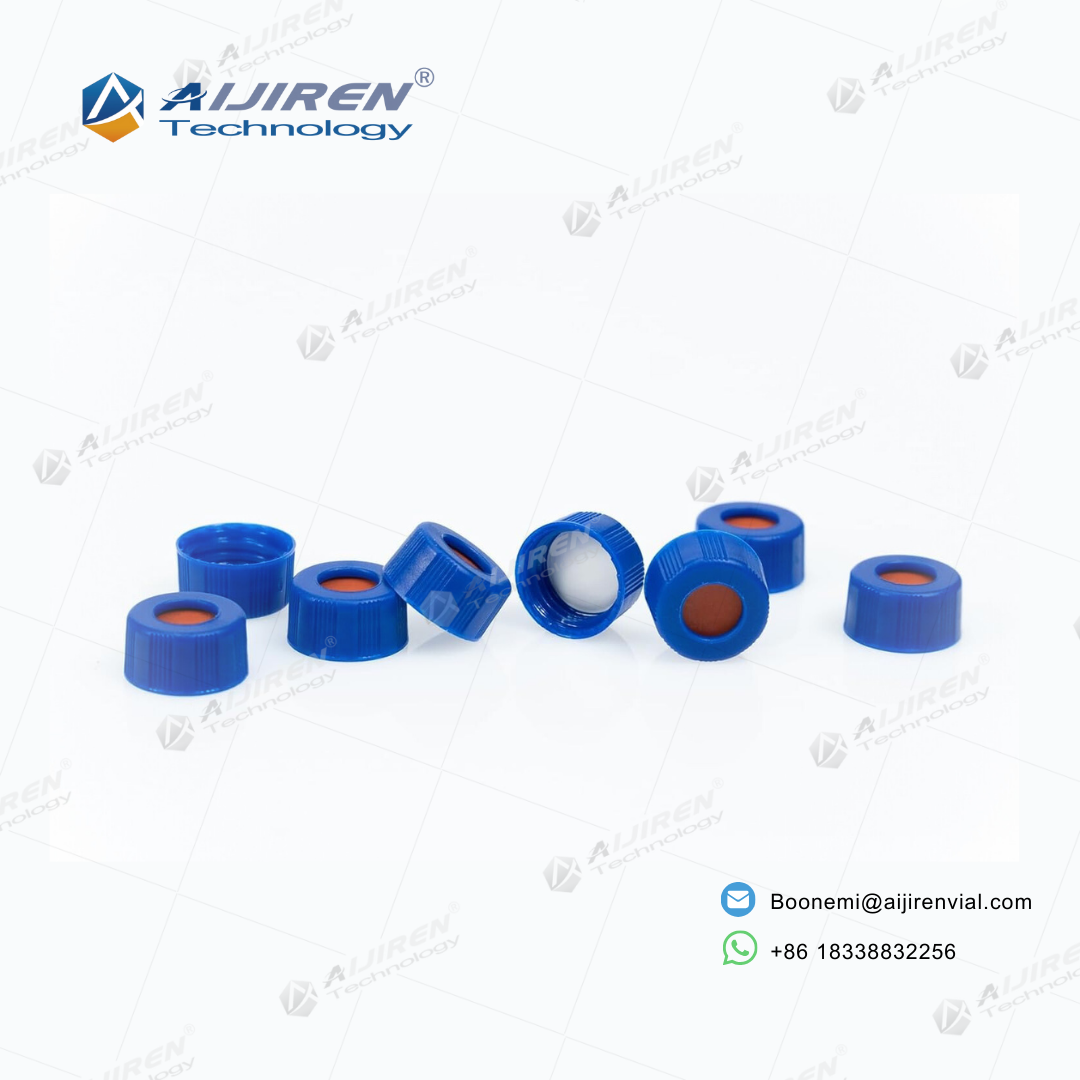

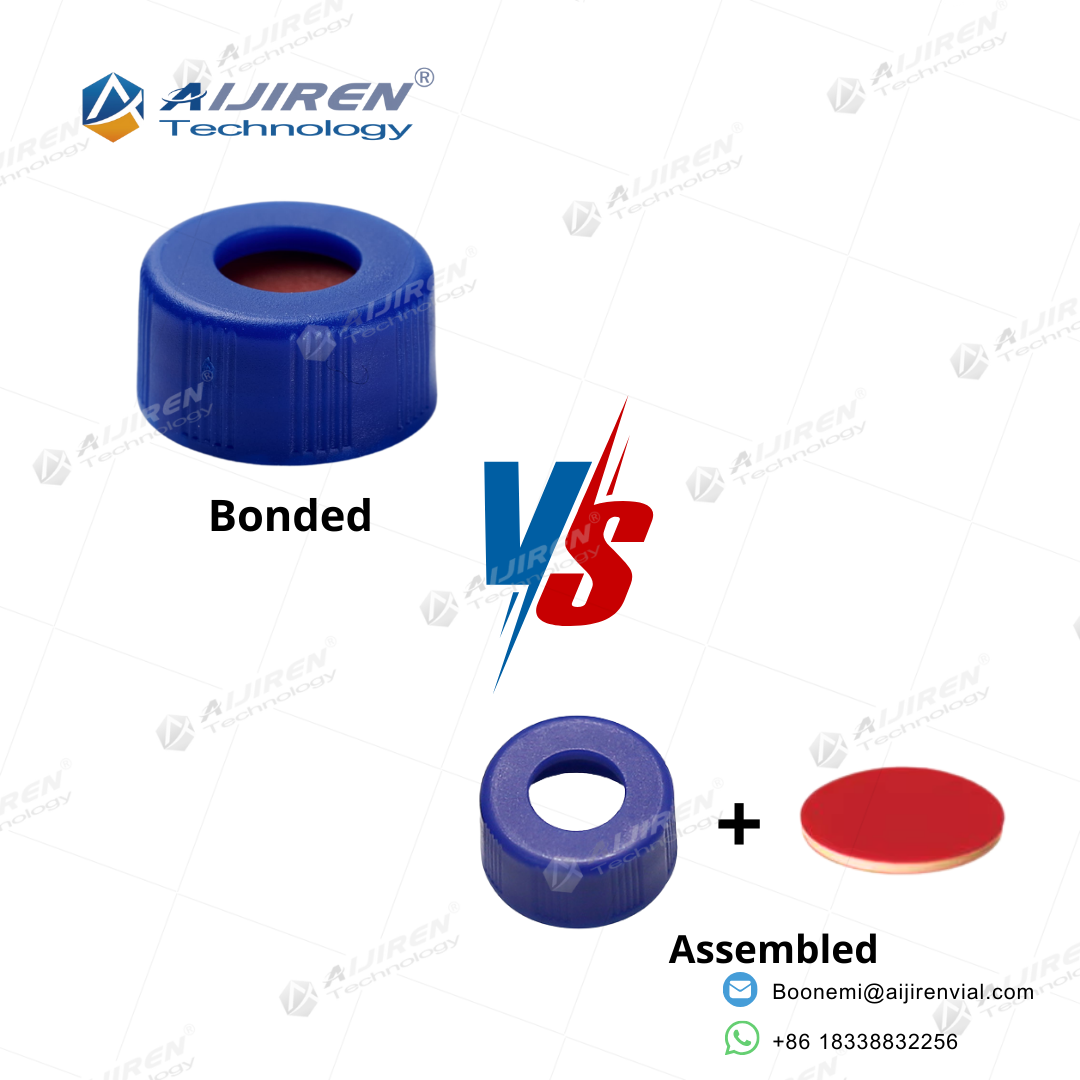

Bonded Technology (No Push-Through) A blunt needle or too much pressure can push the septum into the vial in standard caps. The septum and the cap are chemically fused together by our Bonded Caps. This keeps the septum in place, which stops instruments from getting stuck and samples from being lost.

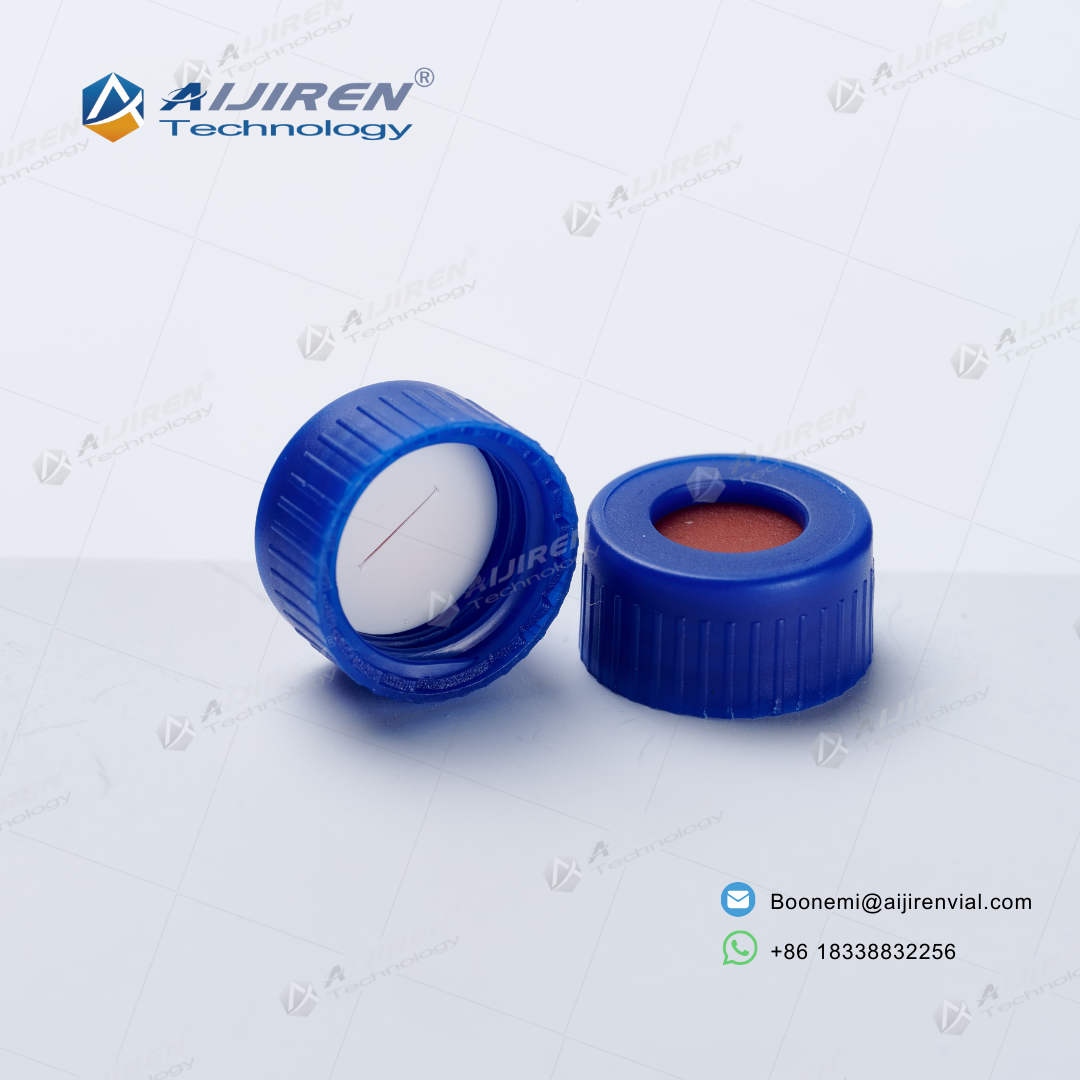

Pre-slit Septa (Vacuum Protection) A vacuum can form inside the vial when you inject quickly or draw a lot of samples. Pre-slit septa let air equalize right away, which makes sure that the sample draw volume is always the same and stops the needle from bending.

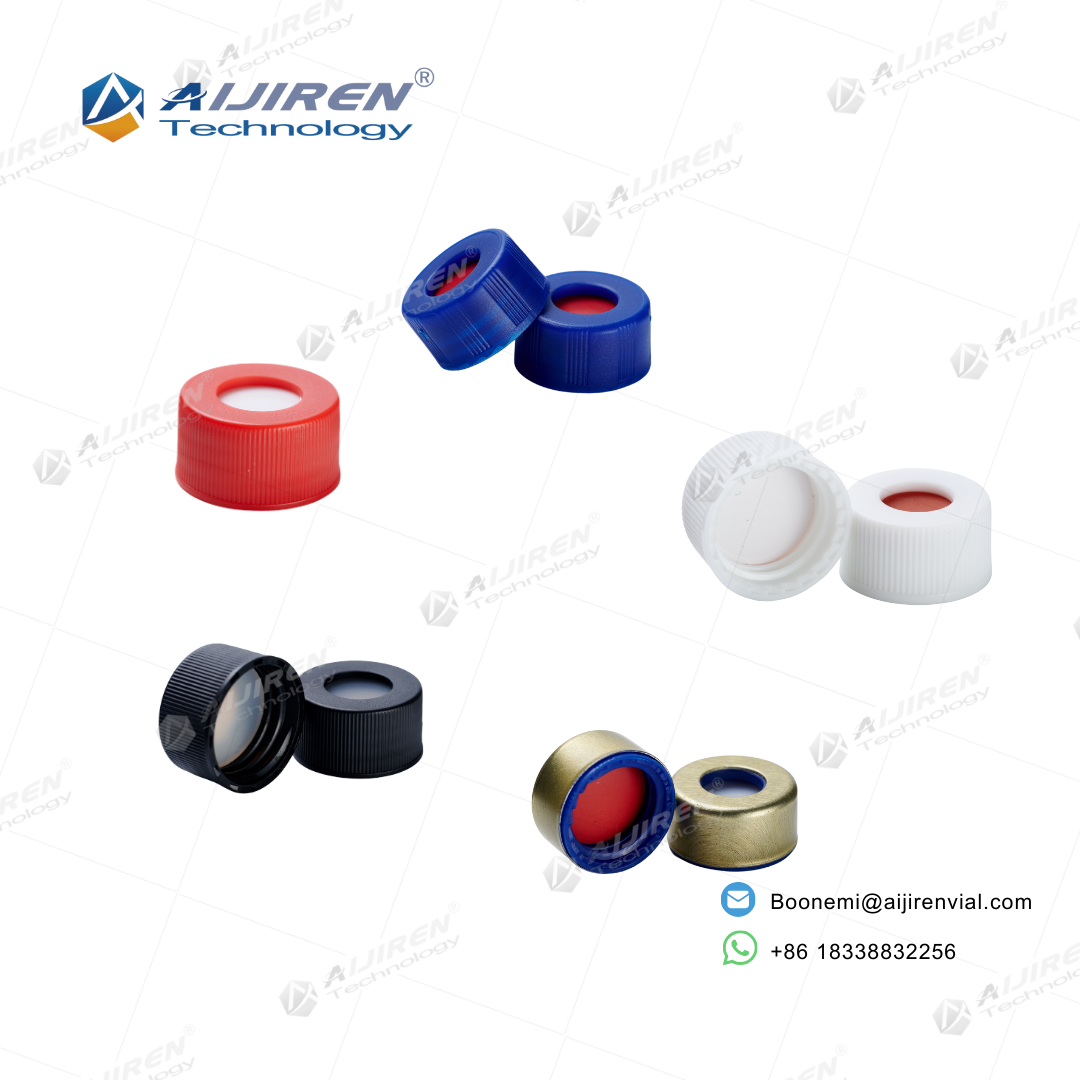

Color Coding Strategy You can get it in blue, red, black, green, and yellow. You can quickly tell the difference between sample batches, QC standards, or different types of solvents by using different colors instead of reading labels.

Related products

2ml 9mm Short Thread Vial ND9 Wide Opening for HPLC

2ml 9mm Short Thread Vials ND9 with a wide opening

4mL 13-425 ND13 Vials in Clear and Amber Glass

13-425 4mL Wash Vials: 15x45mm ND13 Storage Vials for HPLC & GC

Complete set of 1ml shell vials with 8mm PE plugs and caps

1mL Shell Vial (8.2*40mm) – 8mm Soft PE Plug for High-Speed Autosamplers

1.5mL 8-425 Screw Neck Vial ND8 Standard Opening for GC/HPLC

8-425 Screw Thread Vials (ND8) | 1.5mL Standard Opening Sample Vials | Bulk Supply

V1117 Clear and Amber 1.5mL Crimp Neck Autosampler Vials

1.5mL Crimp Neck Autosampler Vials (ND11)

8-425 Screw Cap and Vial Septum Kit for Chromatography

8-425 Small Opening Caps and Silicone Septa with Customizable Lab Seals for Vial Septum

10-425 Screw Caps with PTFE Silicone Septa ND10

10-425 Thread Caps with PTFE/Silicone Septa ND10 Vials Closures

Assorted Micro Vials including Base Bonded and Shell Vials for HPLC

Micro-Vials and Shell Vials Series: Integrated Insert, Base Bonded and PP

1.5mL 10-425 screw thread HPLC vials in clear and amber glass

1.5mL 10-425 Screw Thread Vials, Wide Opening HPLC Autosampler Vials

Selection of 11mm aluminum crimp caps in various colors with PTFE silicone septa

11mm crimp cap septa hplc gc nd11 vial seals

Product Specification

Pre-assembled caps and septa (standard and pre-slit)

Bonded & Specialized Caps (Closed-top & Custom Colors)

Individual Components (Septa Only / Cap Only)

Part No.	Septa Material (Color)	Cap Color / Hole	Slit Type	Pcs/Pack
SC9191	White PTFE/Red Silicone	Blue PP / Open	None	100
SC91191	White PTFE/Red Silicone	Blue PP / Open	Pre-slit (I)	100
SC9291	Red PTFE/White Silicone	Blue PP / Open	None	100
SC92291	Red PTFE/White Silicone	Blue PP / Open	Pre-slit (I)	100
SC9391	Red PTFE/White Sil/Red PTFE (Sandwich)	Blue PP / Open	None	100

Part No.	Septa Material (Color)	Cap Type / Color	Feature	Pcs/Pack
B-SC9291	Clear PTFE/White Silicone	Blue PP / Open	Bonded (一体粘合)	100
B-SC92291	Pre-slit Clear PTFE/White Silicone	Blue PP / Open	Bonded + Pre-slit (I)	100
B-SC9291-A	Red PTFE/White Silicone	Blue PP / Open	Bonded (一体粘合)	100
B-SC9193-A	Clear PTFE/Red Silicone	Black PP / Open	Bonded (一体粘合)	100
SC9192	White PTFE/Red Silicone	Blue PP / Closed-top	Storage/No Injection	100
SC9194	White PTFE/Red Silicone	Black PP / Closed-top	Storage/No Injection	100
SGSC9291	Clear PTFE/WhiteSilicone	Blue PP + Metal Cap	High Pressure	100
SC9291-C	Red PTFE/White Silicone	Clear PP / Open	Transparent Cap	100

Part No.	Type	Description	Color / Feature	Pcs/Pack

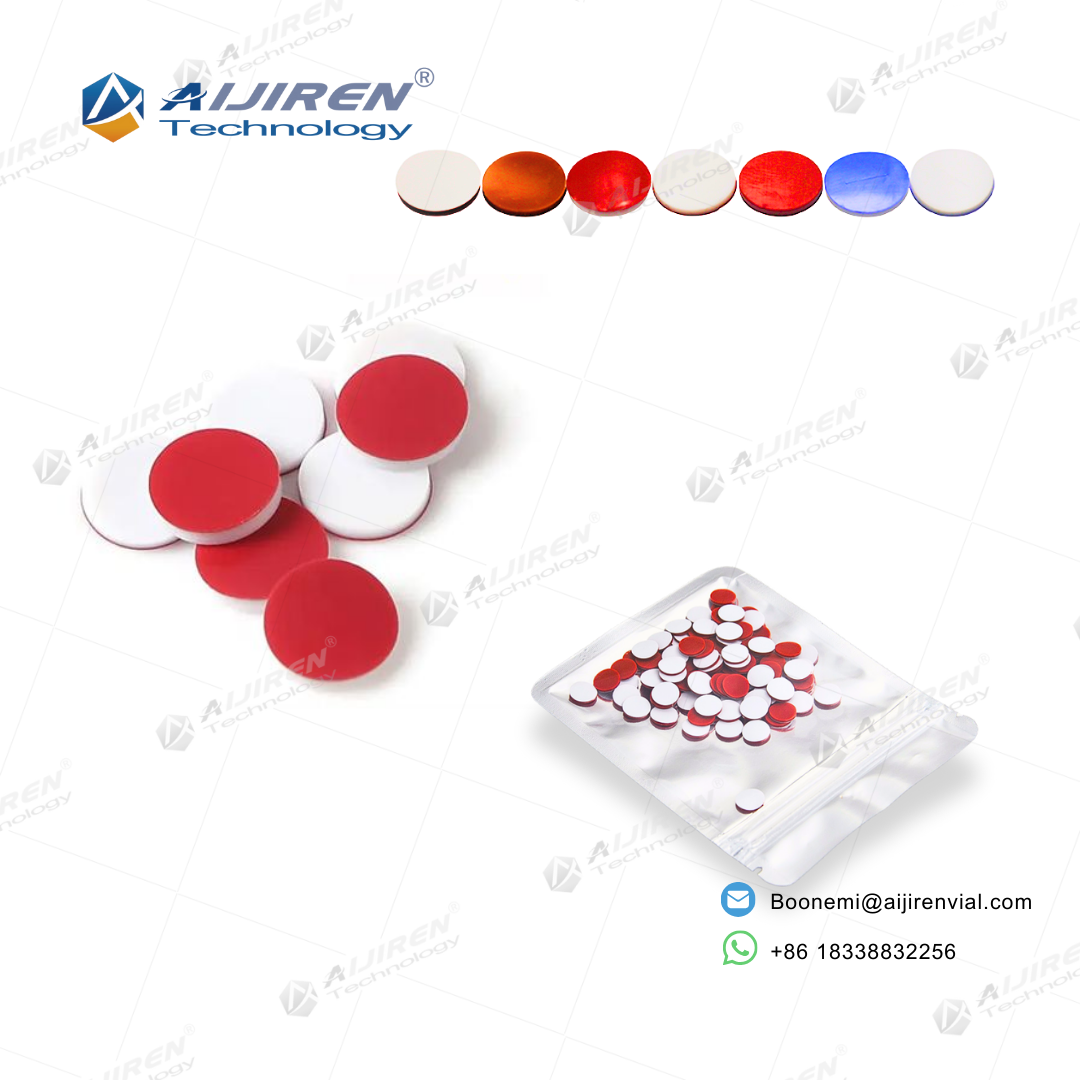

S91	Septa Only	White PTFE/Red Silicone	Standard	100
S944	Septa Only	Blue PTFE/White Silicone	I Pre-slit	100
SX944	Septa Only	Blue PTFE/White Silicone	X Pre-slit	100
C91	Cap Only	Blue PP, 6mm Hole	Standard Blue	100
C92	Cap Only	Blue PP, Closed-top	Storage/Sealing	100
C93	Cap Only	Black PP, 6mm Hole	Color Coding (Black)	100
C94	Cap Only	Black PP, Closed-top	Storage/Sealing (Black)	100
C95	Cap Only	Red PP, 6mm Hole	Color Coding (Red)	100
C96	Cap Only	Red PP, Closed-top	Storage/Sealing (Red)	100
C97	Cap Only	Yellow PP, 6mm Hole	Color Coding (Yellow)	100
C99	Cap Only	Green PP, 6mm Hole	Color Coding (Green)	100

Application & Compatibility Guide

A universal closing system for modern chromatography.

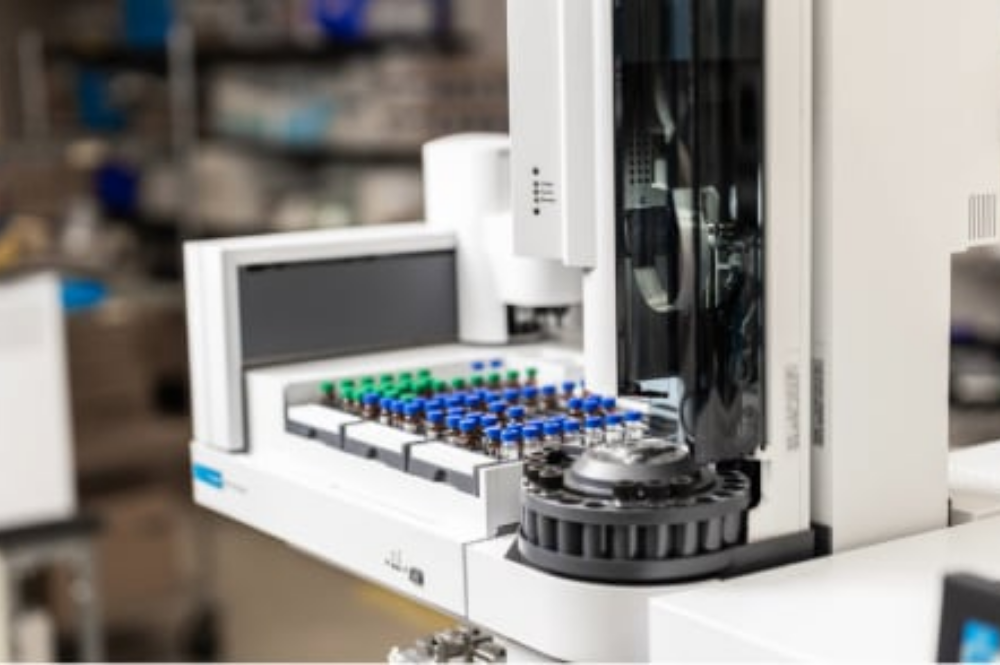

Agilent HPLC/GC

Fits perfectly with the gripper arms of Agilent 1100, 1200, and 1260 series autosamplers.

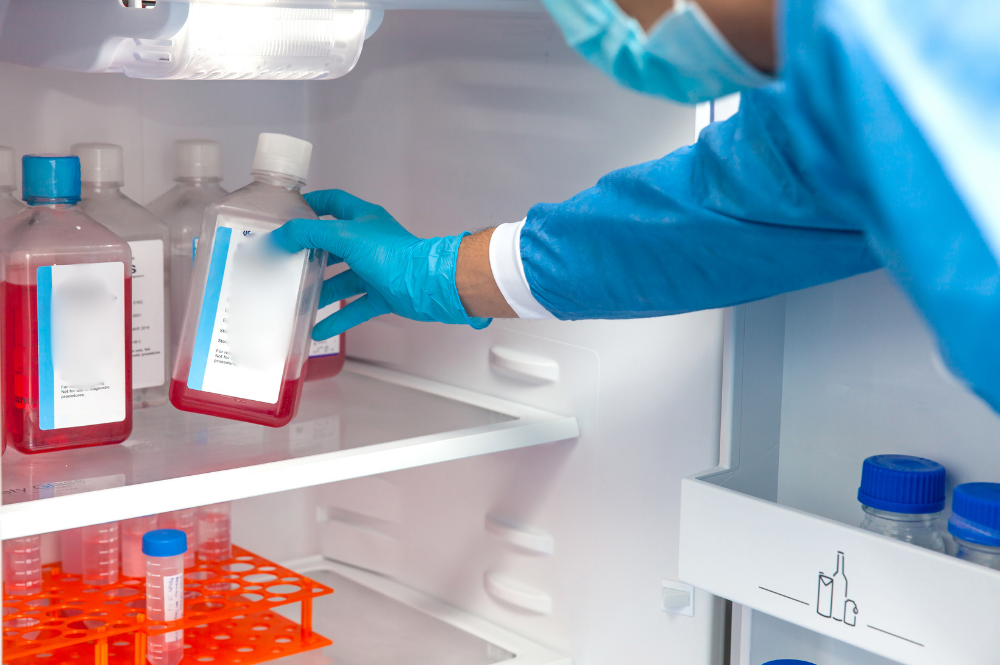

Sample Storage

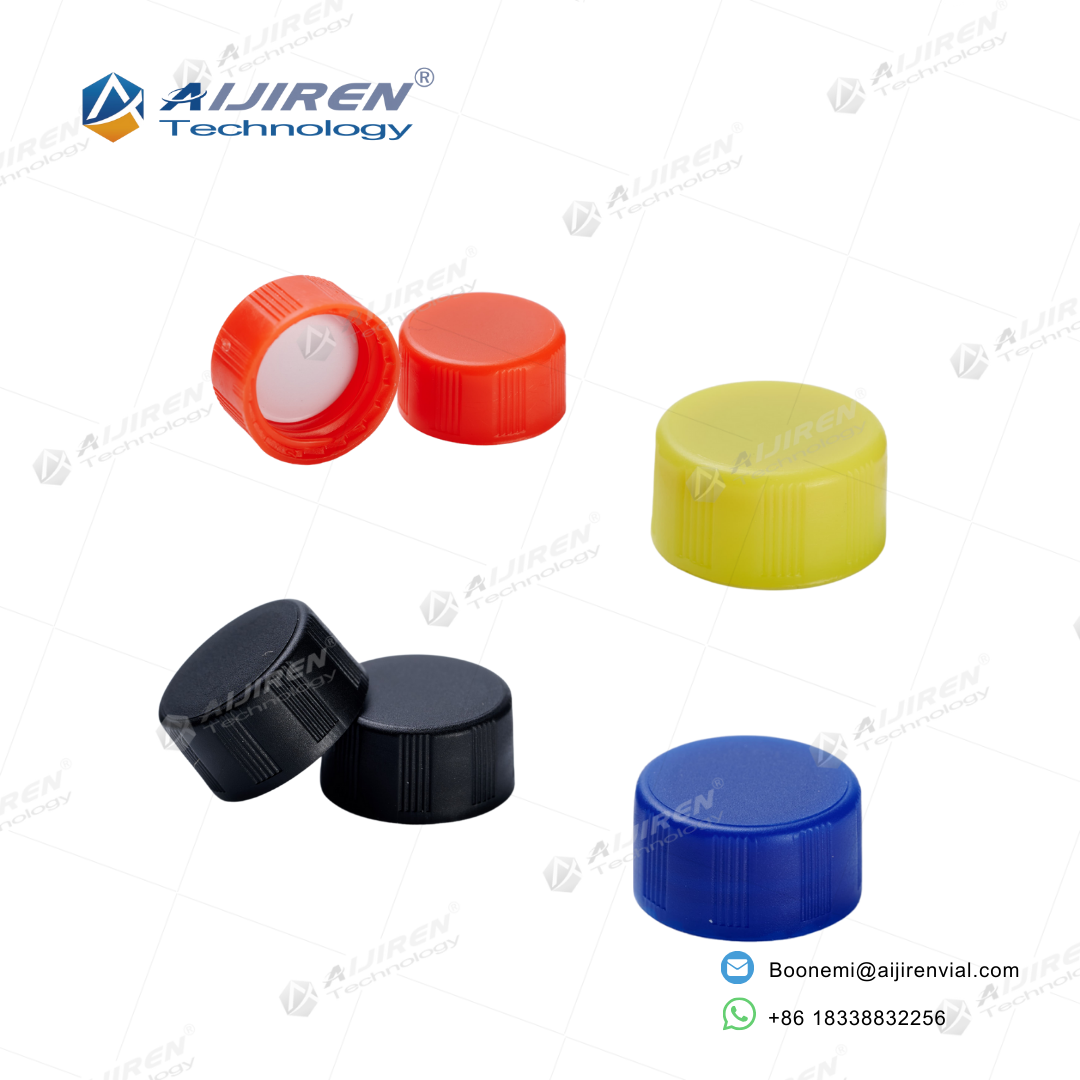

Use Closed-top caps (C92/C94) for long-term storage of samples in refrigerators to prevent evaporation.

Bonded for Safety

Recommended for labs that use thick or blunt needles and where standard septa tend to fall in.

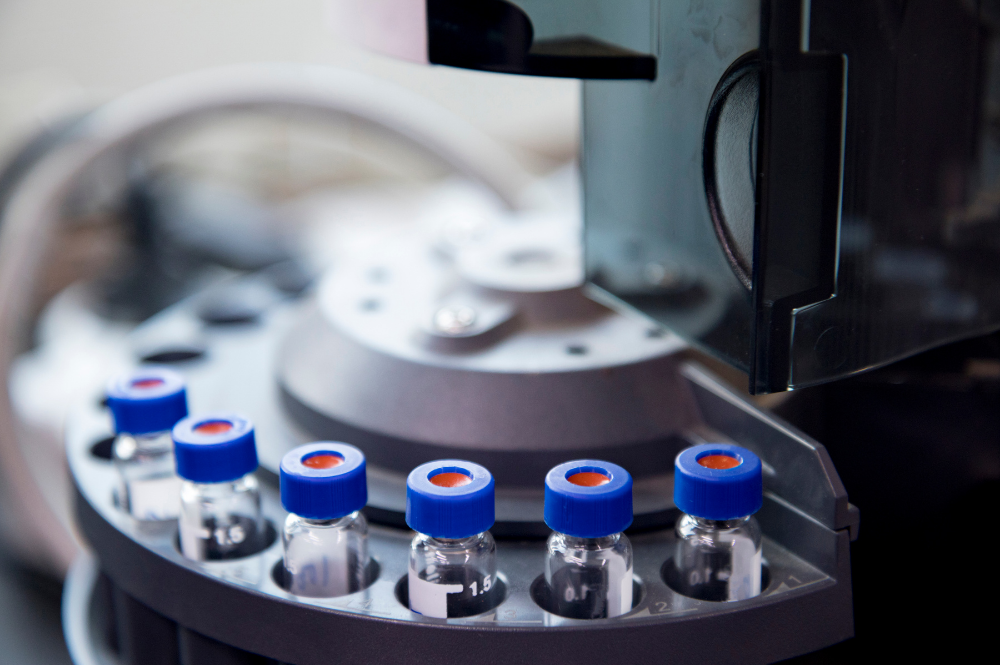

Multi-Injection

Using high-quality silicone makes sure that the septum seals well after penetration, which protects sensitive samples.

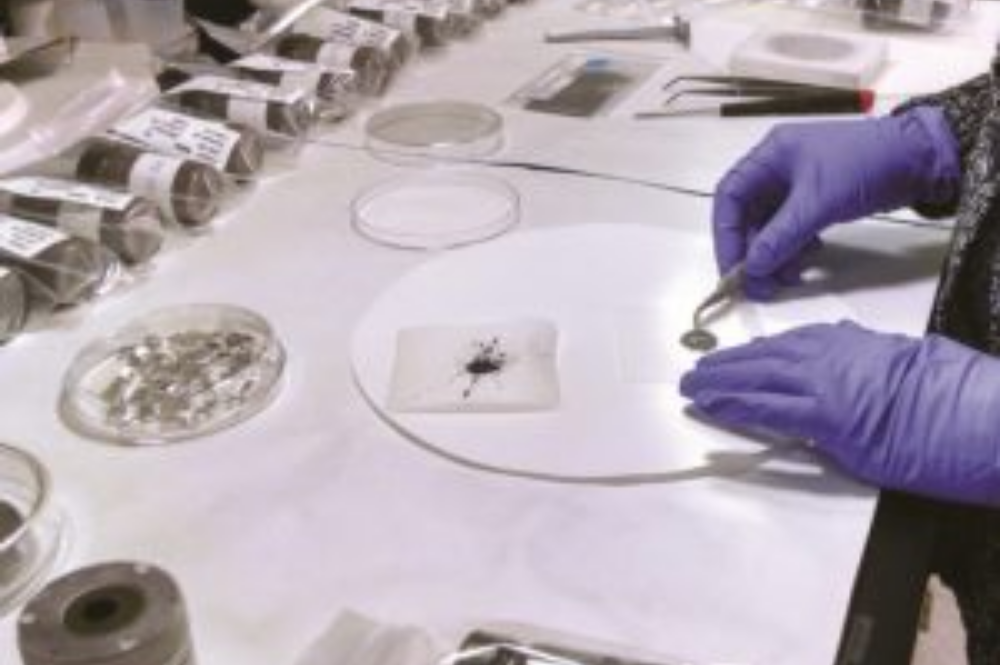

Trace Analysis

PTFE facing keeps extractables from messing up sensitive MS (Mass Spec) data.

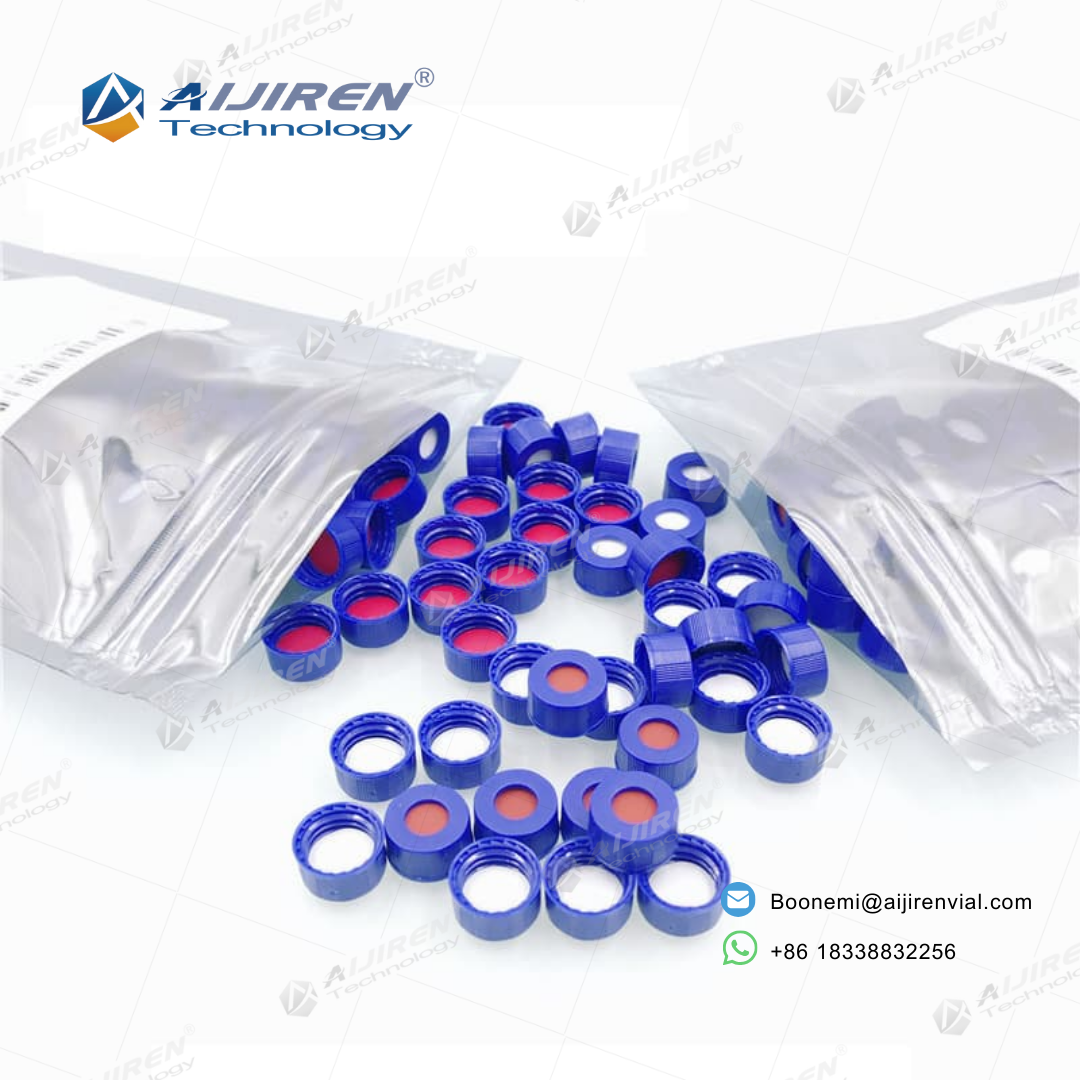

Packing and Delivery

Packing

Each vial is individually protected in shrink-wrapped trays, 100–200 pcs per inner box, then packed into corrugated export cartons.

Labeling

Each carton includes lot number and product information for traceability.

Delivery Time

Normally 7–15 working days after order confirmation.

Shipping Options

Air freight, sea freight, or express (DHL/UPS/FedEx) available upon request.

Storage Condition

Store in a clean, dry environment at room temperature.
