Sealing Engineering & Mechanical Integrity

Engineered Sealing Solutions for ND11 Crimp Systems

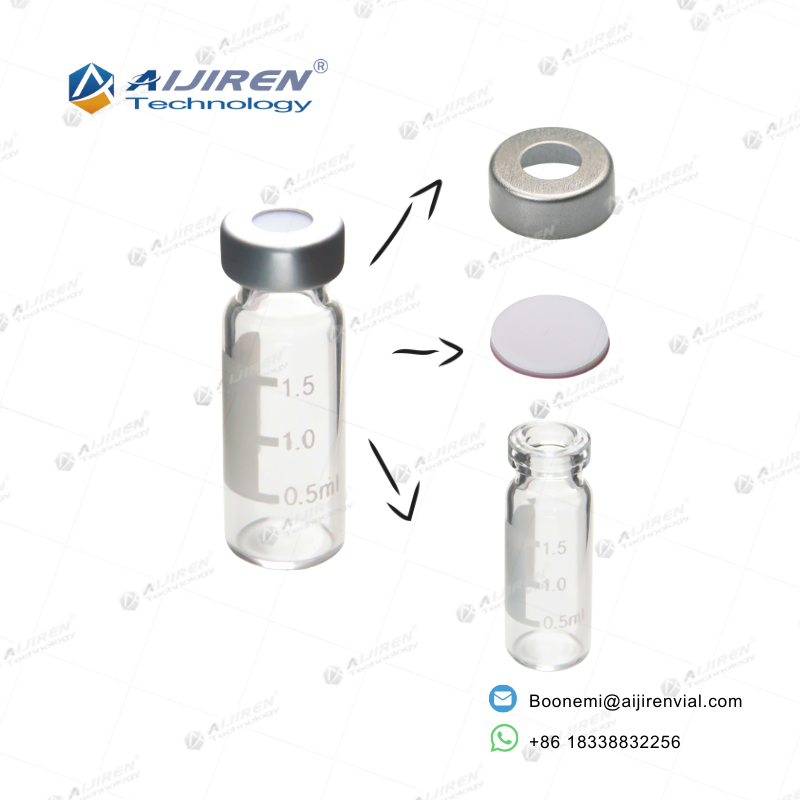

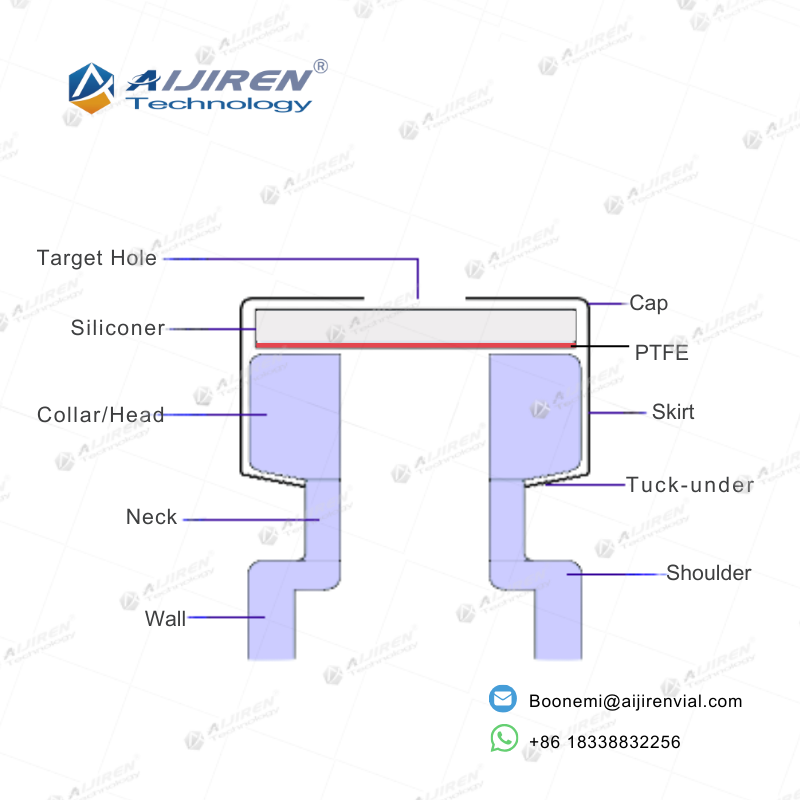

Ensure zero-leakage performance for your volatile samples with our high-precision 11mm Crimp-top caps. Each aluminum seal is manufactured to exact tolerances (5.5mm center hole) to ensure a perfect fit with standard robotic arm samplers. The crimp-on mechanism provides a permanent, tamper-evident seal, making it the preferred choice for trace analysis and long-term storage where evaporation is a critical concern.

Septa Selection Guide: PTFE, Silicone, and Rubber Options

The septum is the most critical contact point with your sample. We offer multiple configurations to match your specific solvent and needle requirements:

S111/S112 (Standard): High-purity PTFE/Silicone for universal chemical resistance.

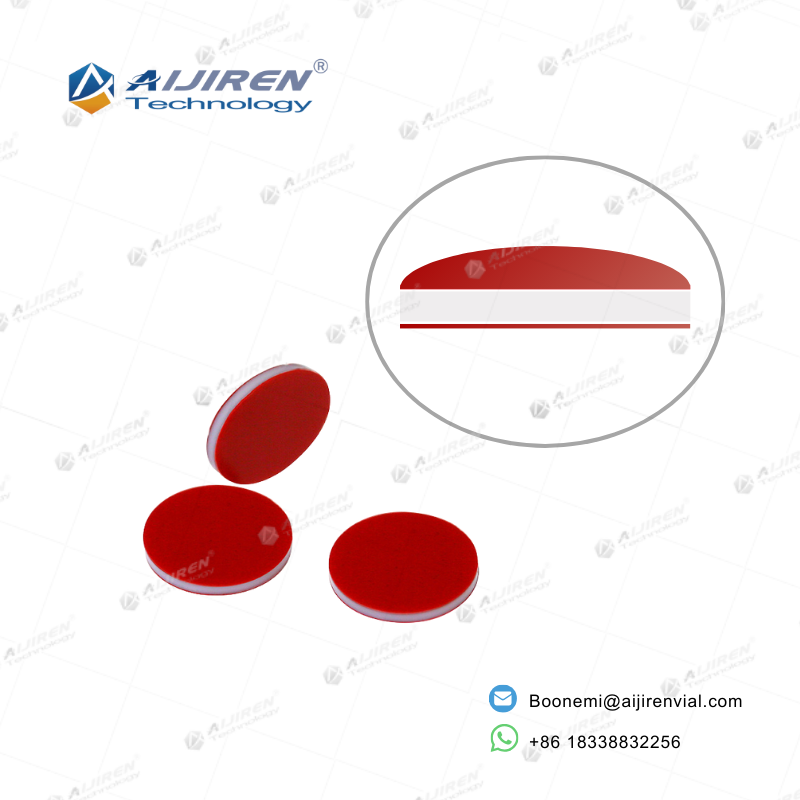

S113 (Triple Layer): PTFE/Silicone/PTFE for the ultimate chemical barrier and reduced coring.

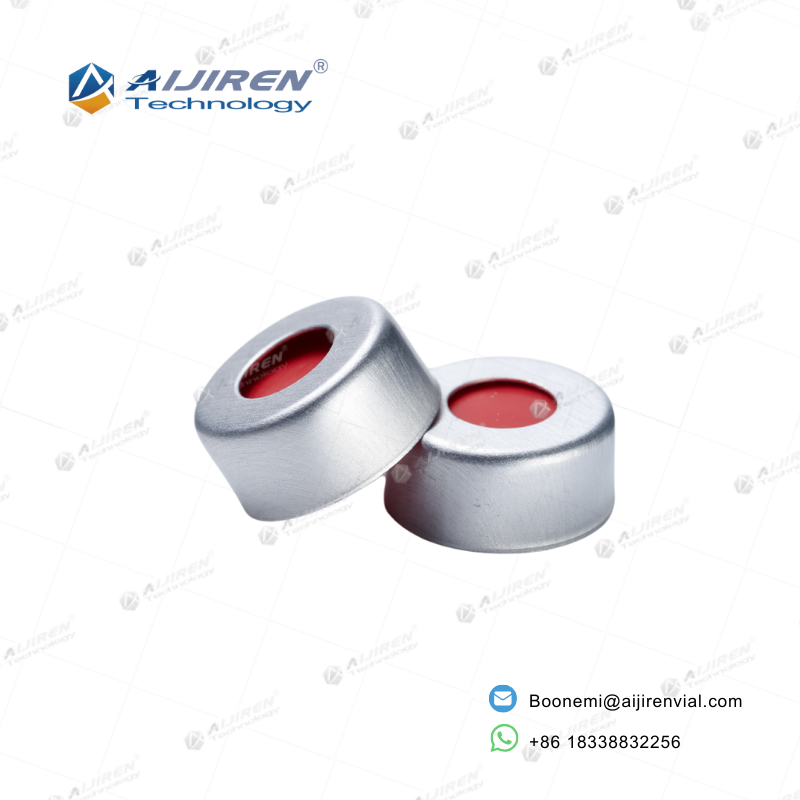

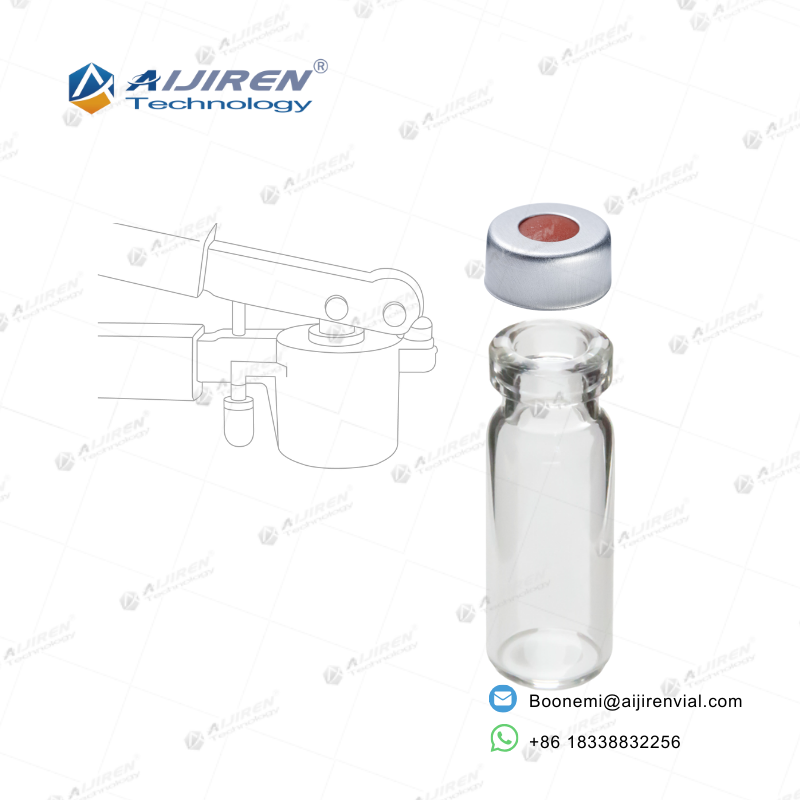

SC115111 (Natural PTFE/Red Rubber): An economical choice for routine testing and non-critical applications.

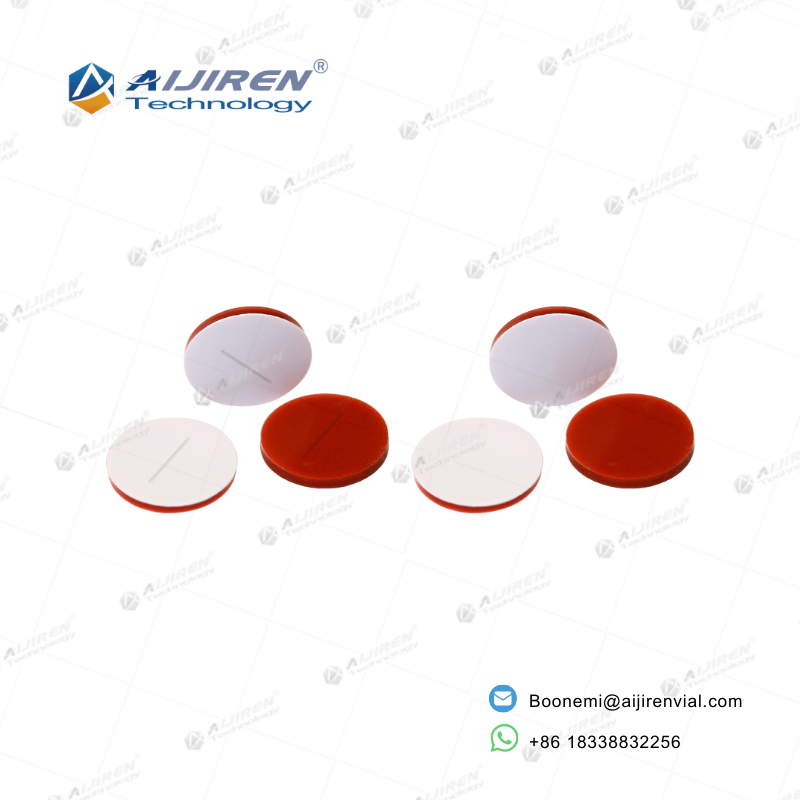

Pre-slit Designs: Essential for thin HPLC needles to prevent vacuum buildup and ensure consistent draw volumes.

These septa maintain physical integrity across a wide temperature spectrum from -60℃ to 210℃. They are equally stable in liquid nitrogen storage and high-temperature headspace heating environments .

Related products

11mm snap-top PE caps and PTFE silicone septa for autosampler vials

1.5mL Snap Ring Vials

1.5mL 8-425 Screw Neck Vial ND8 Standard Opening for GC/HPLC

8-425 Screw Thread Vials (ND8) | 1.5mL Standard Opening Sample Vials | Bulk Supply

4mL 13-425 ND13 Vials in Clear and Amber Glass

13-425 4mL Wash Vials: 15x45mm ND13 Storage Vials for HPLC & GC

8-425 Screw Cap and Vial Septum Kit for Chromatography

8-425 Small Opening Caps and Silicone Septa with Customizable Lab Seals for Vial Septum

V1117 Clear and Amber 1.5mL Crimp Neck Autosampler Vials

1.5mL Crimp Neck Autosampler Vials (ND11)

10-425 Screw Caps with PTFE Silicone Septa ND10

10-425 Thread Caps with PTFE/Silicone Septa ND10 Vials Closures

11mm Snap Caps and Septa for HPLC Vials

9mm Blue Short Thread Cap with Red PTFE and White Silicone Septa

9mm Short Thread Screw Caps and Septa, Pre-Slit, Bonded, and Made of PTFE/Silicone

1.5mL 10-425 screw thread HPLC vials in clear and amber glass

1.5mL 10-425 Screw Thread Vials, Wide Opening HPLC Autosampler Vials

2ml 9mm Short Thread Vial ND9 Wide Opening for HPLC

2ml 9mm Short Thread Vials ND9 with a wide opening

Product Matrix Selection Tables

Septa Material & Application Selection

Crimp Cap Ordering & Color Coding

System Compatibility Matrix

Part No. Prefix	Septa Material	Characteristics	Best Application
S111/S112	White/Red PTFE/Silicone	High purity, excellent resealability	Standard HPLC/GC analysis
S113	Red PTFE/White Silicone/Red PTFE	Triple layer, max chemical barrier	Trace analysis & high-sensitivity GC-MS
S1111/S1122	Pre-slit PTFE/Silicone	Vacuum prevention, low injection force	High-speed sampling, thin needles
SC115111	Nature PTFE/Red Rubber	Cost-effective, good physical seal	Routine QC, single-injection tests

Part No.	Cap Type	Color / Finish	Target Hole	Center Hole

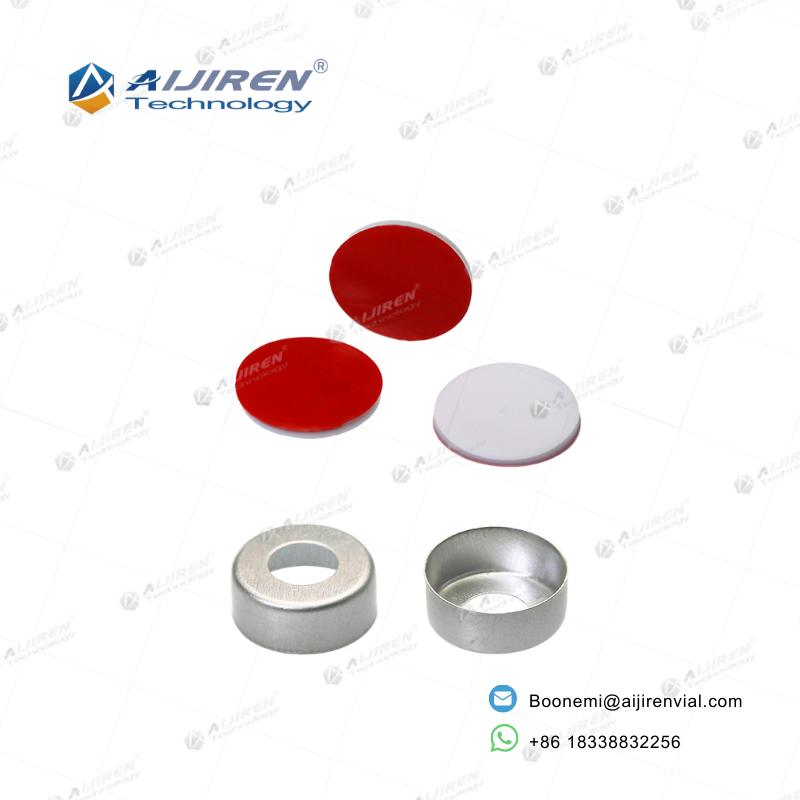

C111	Aluminum Crimp Cap	Silver (Standard)	Standard	5.5mm
SC112112	Aluminum Crimp Cap	Red	Large Opening	5.5mm
SC112113	Aluminum Crimp Cap	Blue	Large Opening	5.5mm
SC112114	Aluminum Crimp Cap	Golden	Large Opening	5.5mm

Instrument Brand	Autosampler Model	Compatibility Status	Recommended Closure
Agilent	1100, 1200, 1260, 1290 Series	Fully Compatible	11mm Crimp (ND11)
Waters	Alliance, Acquity, 2695	Fully Compatible	11mm Crimp (ND11)
Shimadzu	Nexera, Prominence, SIL-20/30	Fully Compatible	11mm Crimp (ND11)
Thermo/CTC	TriPlus, Accela, PAL Systems	Fully Compatible	11mm Crimp (ND11)

Performance Validation & Empirical Data

Simulated 2025 laboratory stressors demonstrate that our 11mm crimp system outperforms generic alternatives across several key metrics

Leak-Proof Excellence

Pressure decay tests confirm that after $50$ injections, vial pressure retention remains above $95\%$. The rapid self-healing of our high-density silicone ensures that volatile solvents like acetonitrile show negligible concentration shifts over 48-hour sequences.12

Zero-Coring Puncture Technology

By optimizing the PTFE film’s molecular cross-linking, our septa exhibit high toughness. This prevents rubber fragments (coring) from entering the sample and clogging expensive capillary columns, a critical factor in proteomics and environmental water analysis .

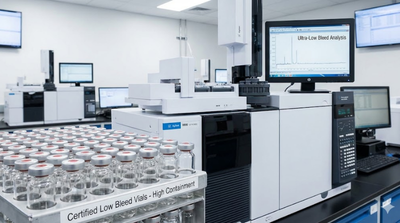

Precise Needle Guidance

The 5.5mm aperture provides a physical guide, ensuring the needle always strikes the geometric center of the septum. This precision significantly reduces the incidence of needle bending during high-speed automated transfers .

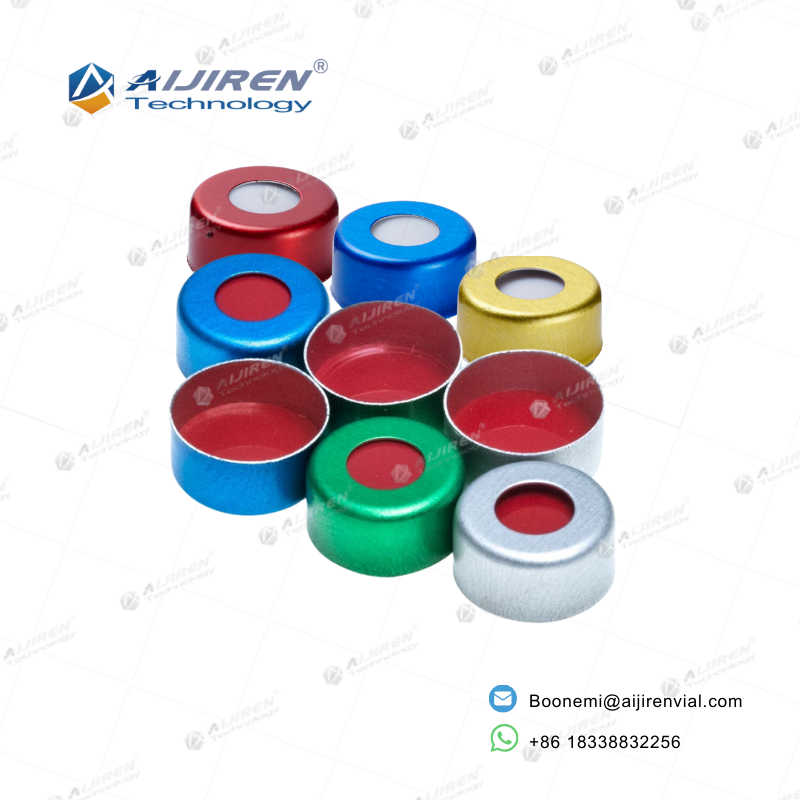

Advanced Color-Coded Management

Available in silver, red, blue, and gold, our color-coded caps facilitate modern Good Laboratory Practice (GLP). Technicians can visually distinguish between standards, blanks, and high-risk samples at a glance

Ultra-Low Extractable Background

In GC-MS and LC-MS total ion chromatograms (TIC), our septa demonstrate virtually zero siloxane leaching. This high purity level allows for clear peak identification in complex qualitative analysis, effectively eliminating the risk of false positives caused by consumable contamination

Frequently Asked Questions (FAQ)

The 11mm crimp system is a critical guardian of your analytical data accuracy. Every component is subjected to end-to-end quality control.

Why choose 11mm Crimp Caps over Screw Caps for my HPLC analysis?

Crimp-top caps provide the most secure, tamper-evident seal. Because the aluminum seal is physically compressed onto the vial neck, it offers superior protection against solvent evaporation compared to screw caps. This is critical for volatile organic compounds (VOCs) and long-term sample storage.

How does the "Large Opening" design (7.0 type) benefit my lab workflow?

Our 11mm crimp vials feature a 40% wider opening than standard narrow-neck vials. This significantly increases the target area for the autosampler needle, virtually eliminating the risk of bent or broken needles during high-speed robotic sampling. It also makes manual pipetting much easier.

When should I use Pre-slit Septa (S1111/S1122) instead of standard septa?

Pre-slit septa are highly recommended for HPLC systems with thin, blunt, or fragile needles. The slit prevents a vacuum from forming inside the vial during sample withdrawal, ensuring precise injection volumes. For GC analysis or very volatile samples, we recommend non-slit septa to maintain a maximum hermetic seal.

What are the advantages of S113 Triple-layer (PTFE/Silicone/PTFE) septa?

The S113 triple-layer design provides a PTFE barrier on both sides of the silicone. This ensures that the sample only comes into contact with inert PTFE, while the extra top layer prevents the septum from sticking to the crimper or needle, minimizing sept

Can I customize the cap color and septa material?

Yes. We offer OEM/ODM services. You can customize the aluminum cap color (Silver, Red, Blue, Gold, Green) and the septa material/size to match your laboratory's specific color-coding system or solvent compatibility requirements.

Dec

Packing and Delivery

Packing

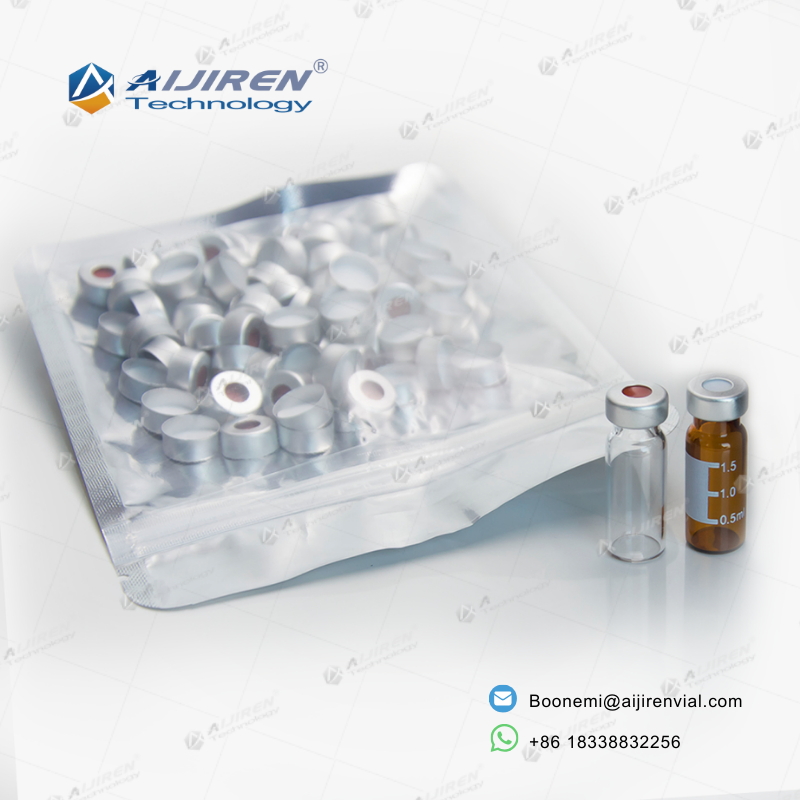

Each vial is individually protected in shrink-wrapped trays, 100–200 pcs per inner box, then packed into corrugated export cartons.

Labeling

Each carton includes lot number and product information for traceability.

Delivery Time

Normally 7–15 working days after order confirmation.

Shipping Options

Air freight, sea freight, or express (DHL/UPS/FedEx) available upon request.

Storage Condition

Store in a clean, dry environment at room temperature.
