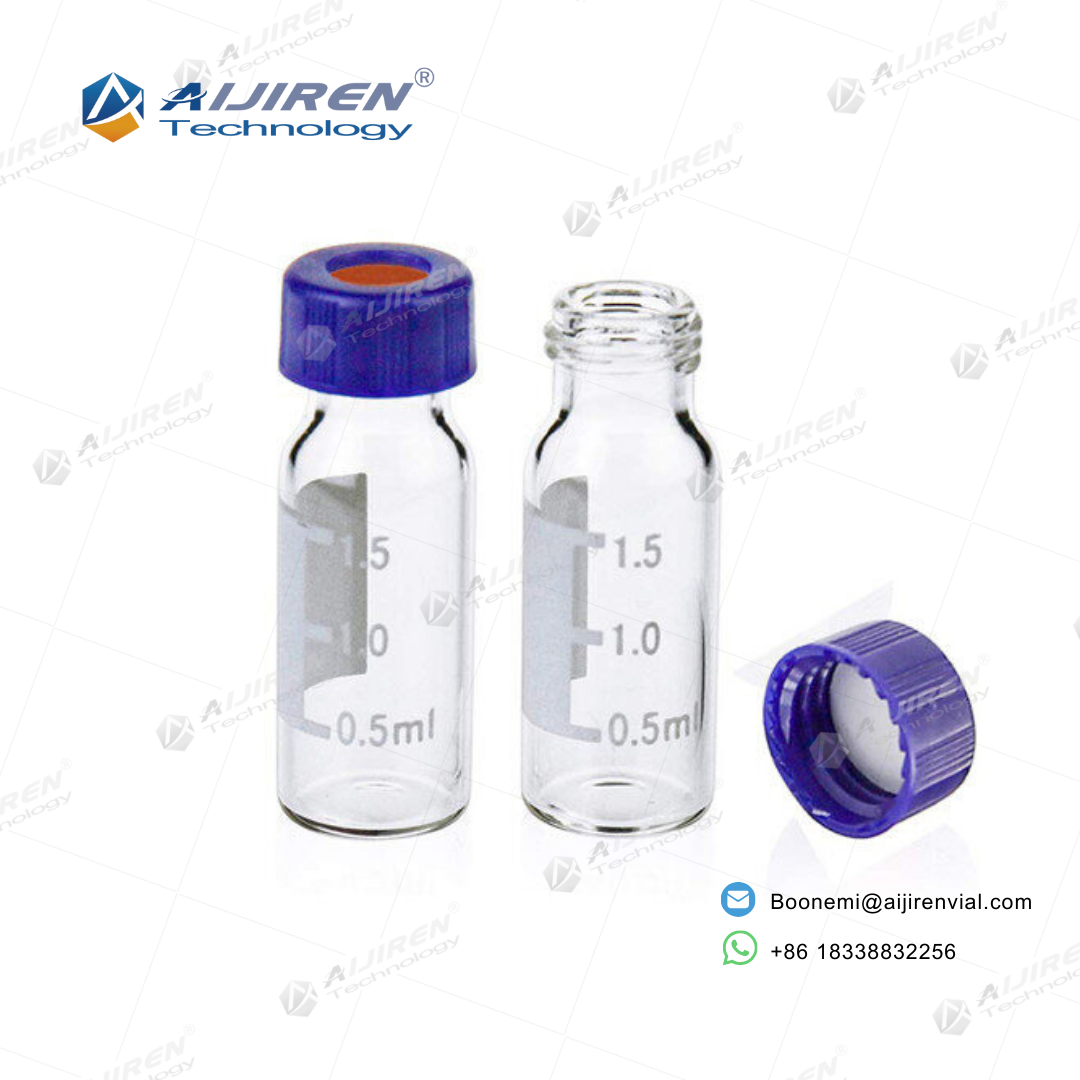

ND9 9mm Short Thread Vials that works with all autosamplers

The Universal Choice: Why Should You Upgrade to N

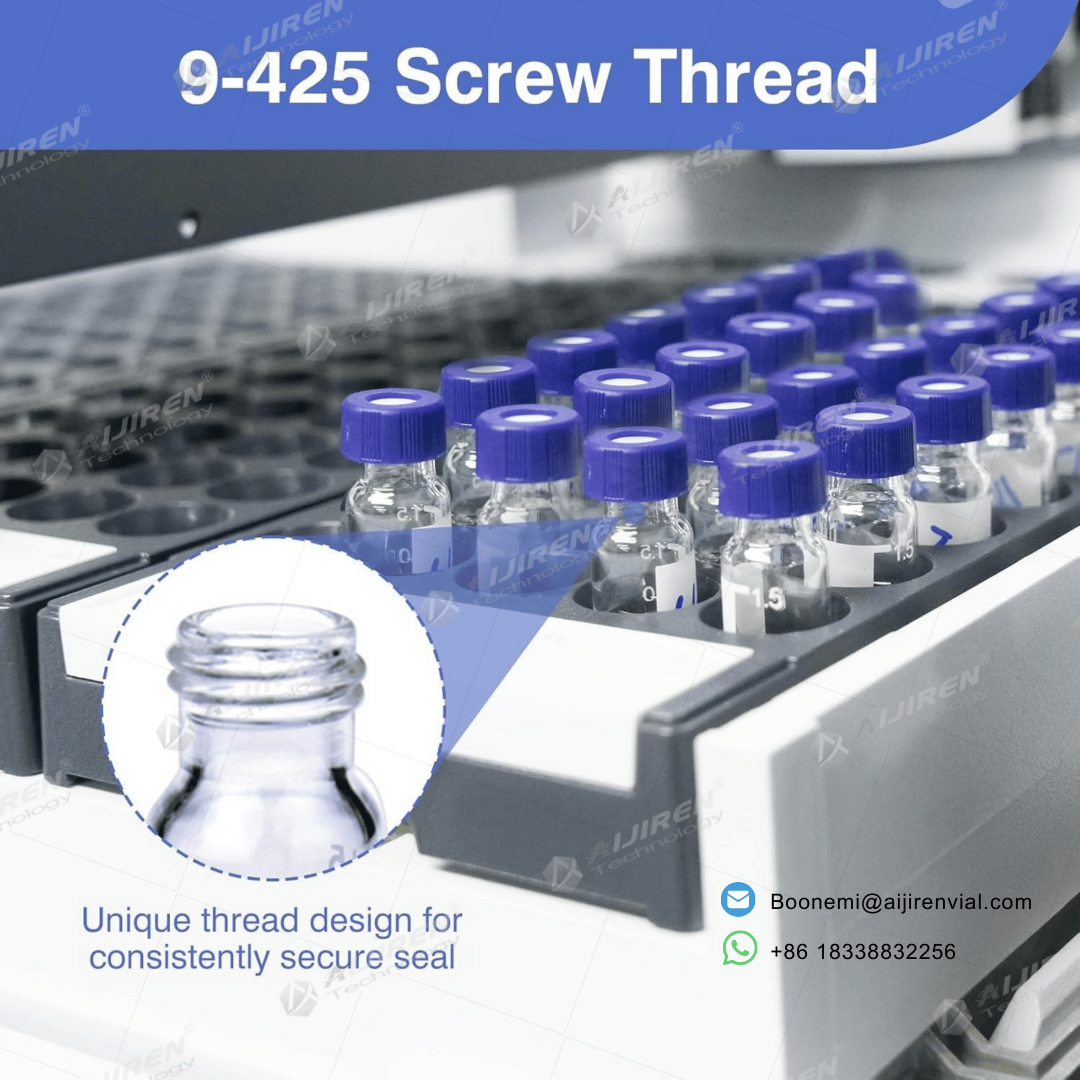

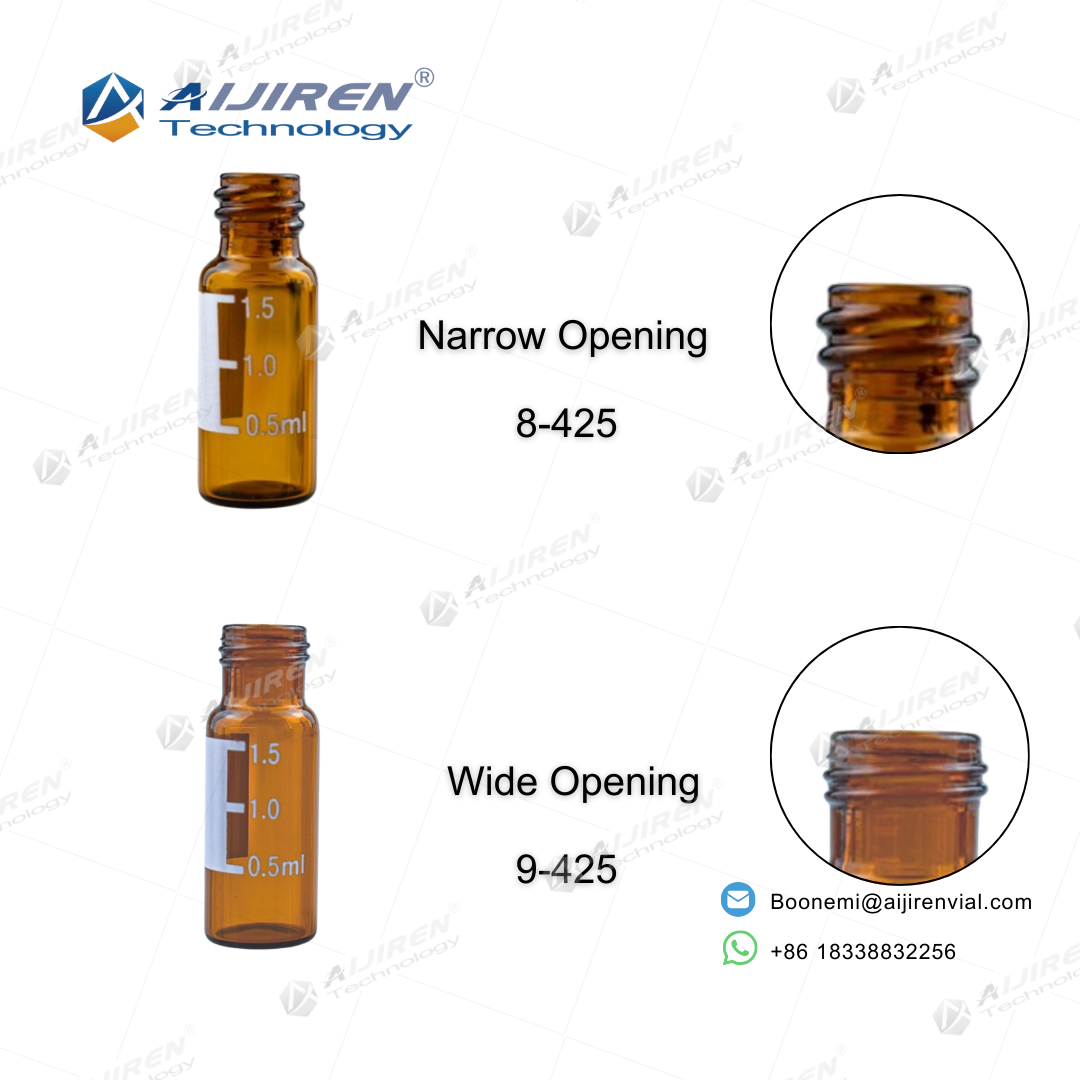

The ND9 Short Thread Vial is meant to take the place of both Crimp Top and older Screw Top (ND8) vials. The "Wide Opening" design is the best part because it gives autosampler needles a 40% larger target area. This greatly lowers the chance of needles getting bent, especially in modern autosamplers that work quickly.

With just a half-turn, the "Short Thread" lets you seal or remove the cap. This is not only comfortable for lab workers to use, but it also works with robotic arm grippers (like Agilent) that need a certain shape for the cap to be able to move it.

Specialized Variants for Critical Analysis

We offer more than just regular glass for trace analysis, small samples, and ion chromatography.

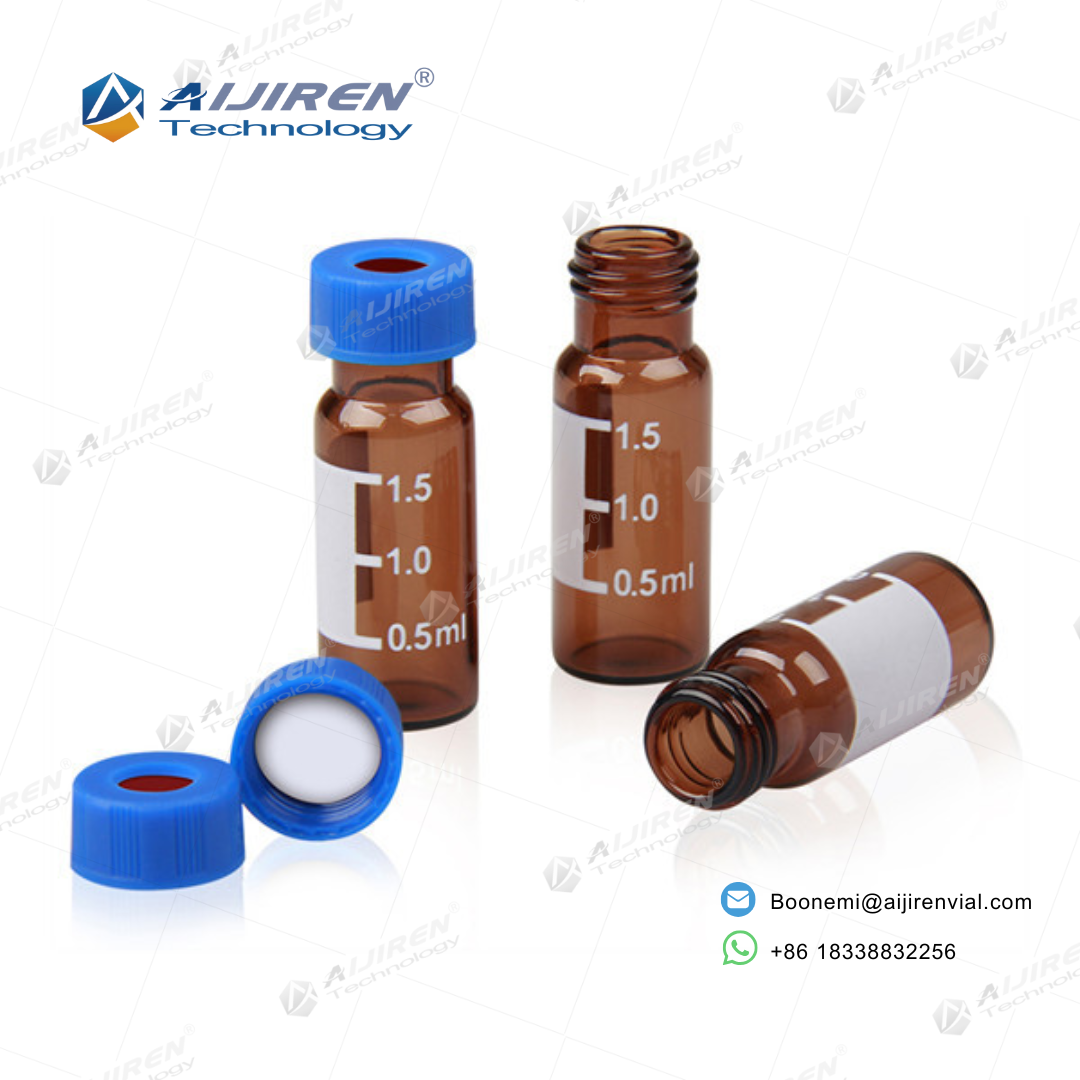

Silanized (Deactivated) Vials

Models V917-S and V927-S: Standard glass surface silanols can adsorb samples for very sensitive analysis, like proteins, phenols, and pesticides. Our Silanized vials have a deactivated surface that makes sure that 100% of the sample is recovered and counted correctly.

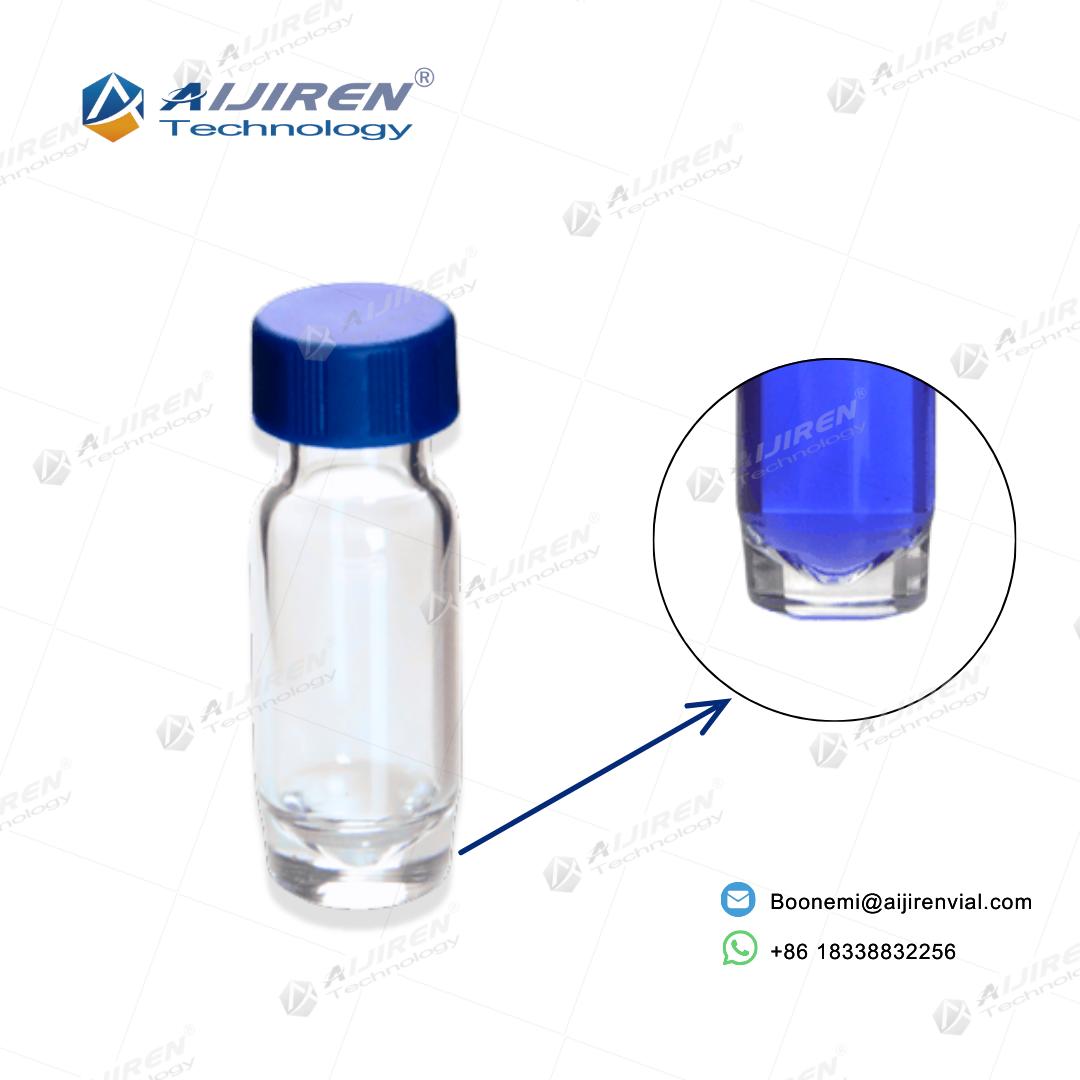

High Recovery Vials

Models VR913 and VR935: These vials have a special conical base inside that holds 30μL of liquid. They let you get the most sample out of them without needing separate inserts, which is great for small samples (less than 100μL).

Polypropylene (PP) Vials

Related products

Assorted Micro Vials including Base Bonded and Shell Vials for HPLC

Micro-Vials and Shell Vials Series: Integrated Insert, Base Bonded and PP

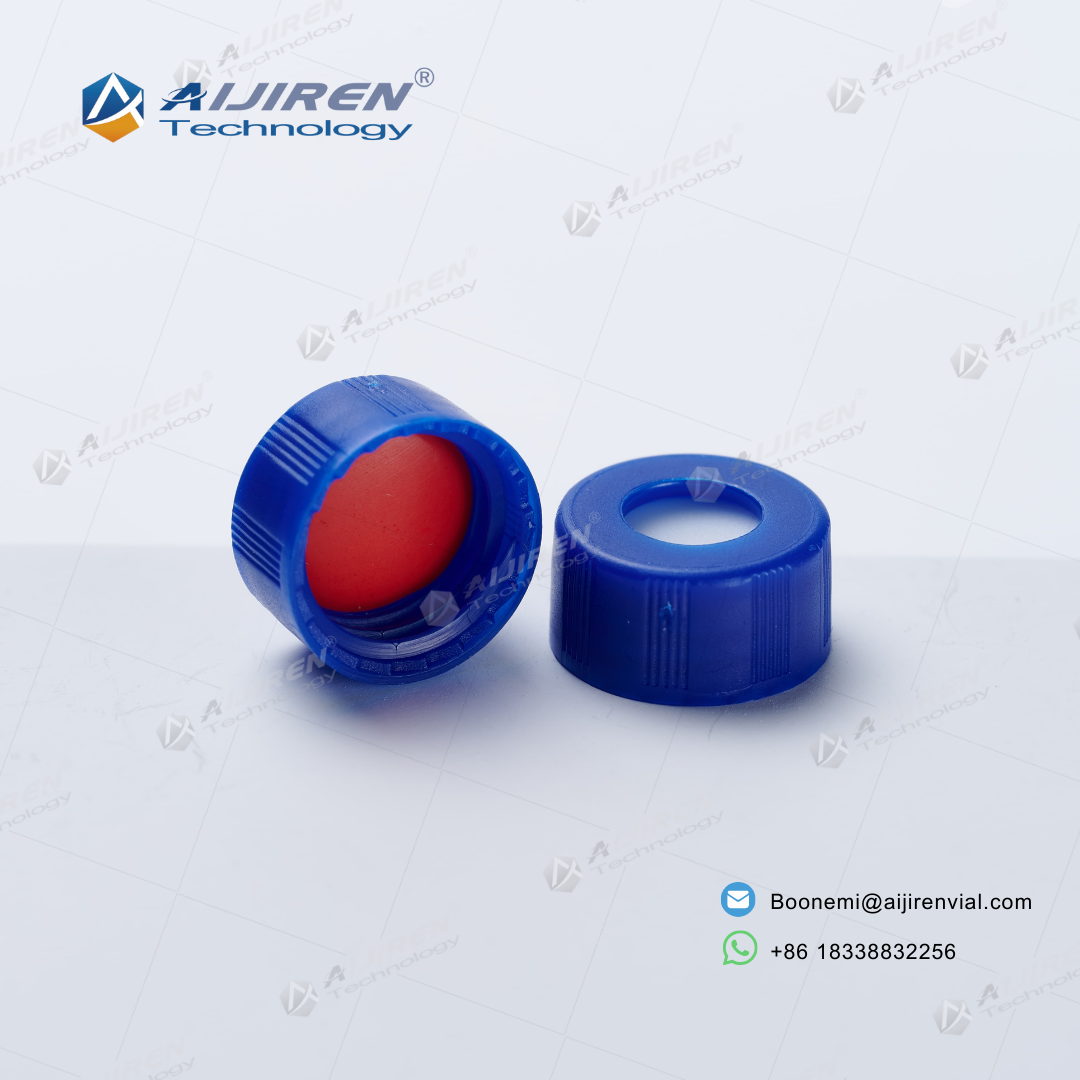

9mm Blue Short Thread Cap with Red PTFE and White Silicone Septa

9mm Short Thread Screw Caps and Septa, Pre-Slit, Bonded, and Made of PTFE/Silicone

8-425 Screw Cap and Vial Septum Kit for Chromatography

8-425 Small Opening Caps and Silicone Septa with Customizable Lab Seals for Vial Septum

Selection of 11mm aluminum crimp caps in various colors with PTFE silicone septa

11mm crimp cap septa hplc gc nd11 vial seals

Complete set of 1ml shell vials with 8mm PE plugs and caps

1mL Shell Vial (8.2*40mm) – 8mm Soft PE Plug for High-Speed Autosamplers

1.5mL 8-425 Screw Neck Vial ND8 Standard Opening for GC/HPLC

8-425 Screw Thread Vials (ND8) | 1.5mL Standard Opening Sample Vials | Bulk Supply

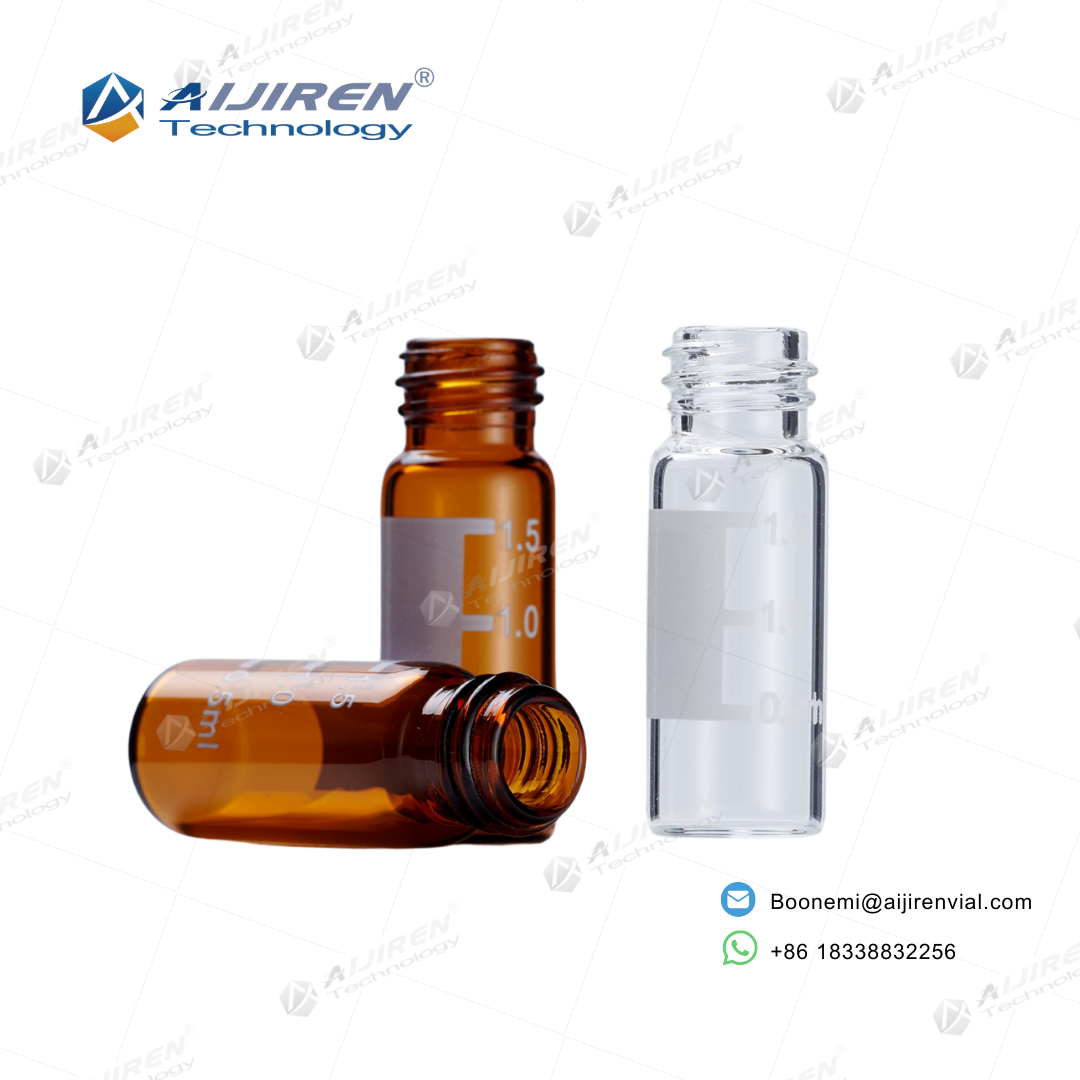

1.5mL 10-425 screw thread HPLC vials in clear and amber glass

1.5mL 10-425 Screw Thread Vials, Wide Opening HPLC Autosampler Vials

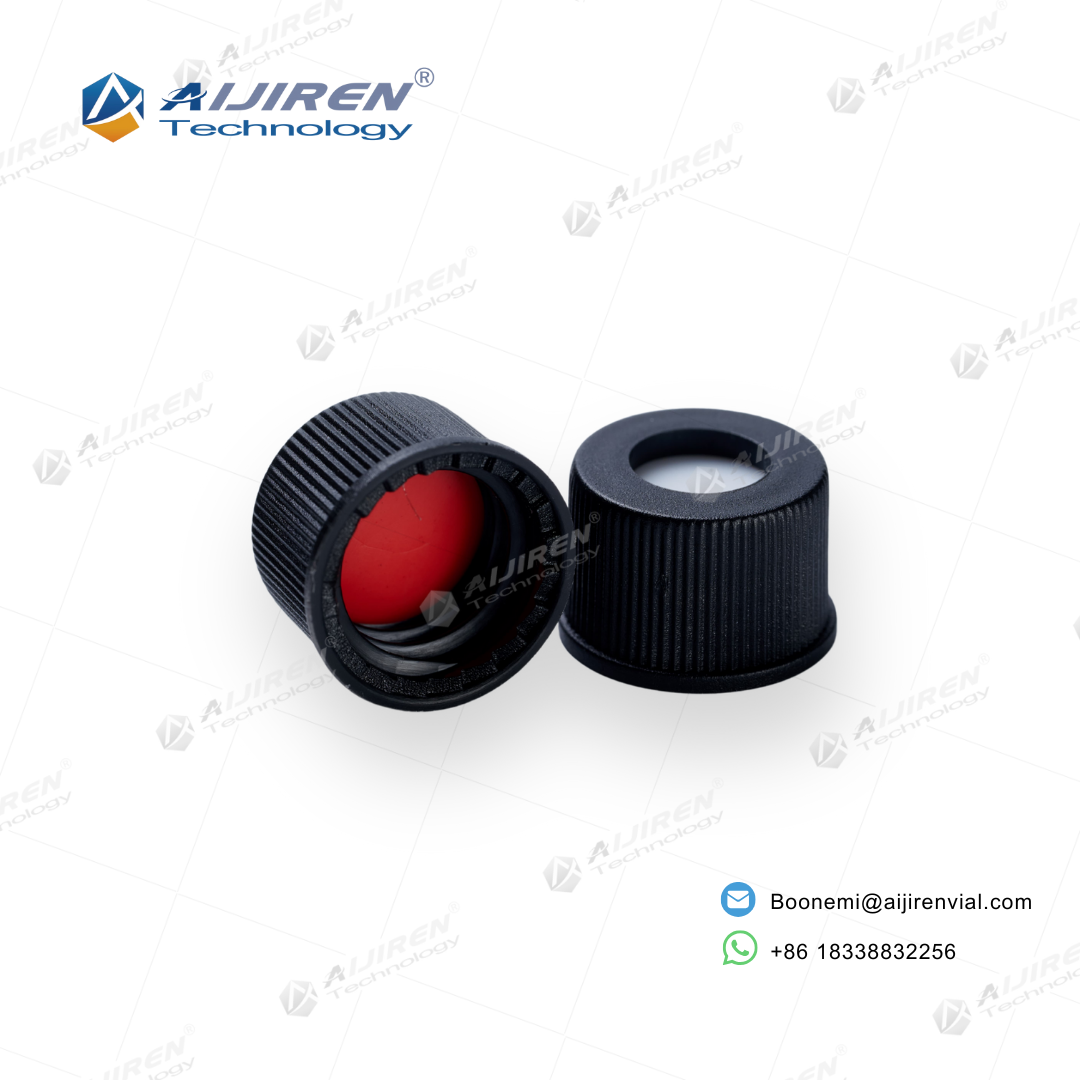

10-425 Screw Caps with PTFE Silicone Septa ND10

10-425 Thread Caps with PTFE/Silicone Septa ND10 Vials Closures

V1117 Clear and Amber 1.5mL Crimp Neck Autosampler Vials

1.5mL Crimp Neck Autosampler Vials (ND11)

4mL 13-425 ND13 Vials in Clear and Amber Glass

13-425 4mL Wash Vials: 15x45mm ND13 Storage Vials for HPLC & GC

Guide to Choosing ND9 Vials

Standard Series: Borosilicate 7.0 Expansion Glass (Affordable)

Borosilicate 5.0 Neutral Glass (USP Type I) for the Premium Series

Advanced Solutions: Silanized, High Recovery, and PP Vials

Part No.	Type	Feature	Glass Type	Best For
V917	Clear	Standard	Boro 7.0	Routine UV-HPLC, cost-effectiveness,
V927	Clear	Write-on Spot	Boro 7.0	Manual sample loading and labeling,
V937	Amber	Standard	Boro 7.0	Light-sensitive vitamins and drugs
V947	Amber	Write-on Spot	Boro 7.0	Complex Batch Tracking

Part No.	Material	Advantage	Best For	Technical Superiority
V913	Boro 5.0 Clear	Low expansion and high resistance to thermal shock	Quality Control and Quality Assurance in the Pharmaceutical Industry	Better Hydrolytic Resistance
V923	Boro 5.0 Clear with printing	Permanent Ceramic Markings	Ultra-trace Analysis	Reduced "Ghost Peaks" in LC-MS
V935	Boro 5.0 Amber	The most UV protection and chemical inactivity	Storage that is sensitive to light for a long time	Less alkali content
V945	Boro 5.0 Amber with printing	The Standard in the Pharma Industry	Getting Samples Ready in an Ultra-Clean Way	Meets strict standards set by the pharmacopoeia

Solution Category	Part No.	Problem / Issue	Core Solution	Key Benefit / Advantage
Anti-Adsorption (Silanized)	V917-S / V927-S	Proteins and peptides are sticking to the glass walls, which is giving wrong results.	Organosilane deactivated the surface.	Almost 100% recovery of polar compounds; prevents data from being skewed.
Limited Volume (High Recovery)	VR913 / VR935	The sample volume is less than 100 μL, like blood from a newborn or forensic evidence.	The vial has a built-in "V-shape" base.	The residual volume is less than 5 μL, so there is no need for separate spring inserts.
Metal-Free Analysis (Polypropylene)	VP923 / VP945	Samples that have a lot of heavy metals or a high pH.	Polypropylene (PP) that is safe for medical use.	Ion Chromatography (IC) needs chemicals that are stable in strong bases and don't have ions.

Application Scenarios

A flexible vial platform that works in all areas of analytical chemistry.

Pharmaceutical QC

The best way to test the purity and stability of drugs on a regular basis is with HPLC/UHPLC.

Biopharmaceuticals

Silanized vials are very important here because they stop proteins or peptides from sticking to the glass wall.

Environmental Analysis

PP vials are used for heavy metal testing (PFAS/Ion Chromatography) when glass isn't good enough.

Forensic & Toxicology

High Recovery Vials make sure that rare biological evidence, like blood or urine, is used to its fullest.

Food Safety

Amber vials keep vitamins and antioxidants safe from light during LC-MS/MS analysis.
