11mm Snap Caps and Septa for HPLC Vials

Description

Feature

Specification

Product

FAQ

Packing and Delivery

Overview

This professional-grade 11mm snap cap and septa system is engineered to provide absolute sealing integrity for high-throughput liquid chromatography (HPLC) and gas chromatography (GC) workflows.

Tool-Free Efficiency

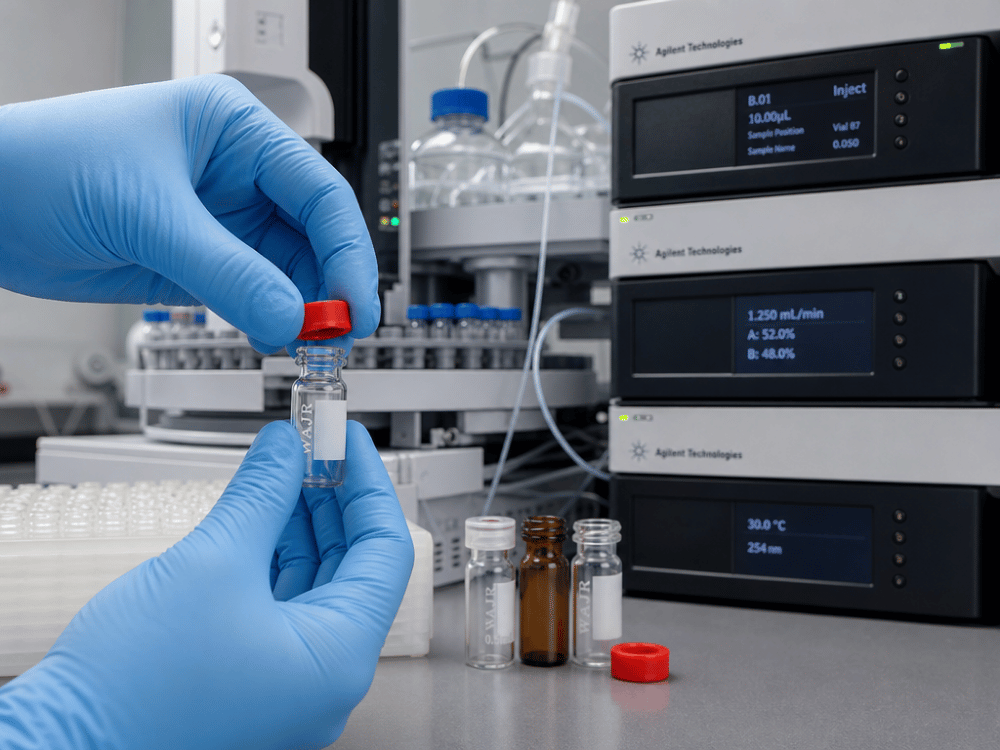

Tool-Free Efficiency: The snap-top design permits rapid, reliable sealing and cap removal by hand, significantly accelerating sample preparation timelines for high-volume analytical batches.

Minimized Baseline Noise: Manufactured from conditioned, ultra-pure raw materials, these septa exhibit exceptionally low background bleed, eliminating ghost peaks in high-sensitivity mass spectrometry and chromatography.

Needle and Vacuum Protection: Specialized pre-slit variants drastically lower needle penetration force, eliminating coring debris, preventing bent autosampler needles, and stopping vacuum formation during draw cycles.

Broad Solvent Compatibility: The chemically inert PTFE protective layer provides a robust barrier against strong acids, bases, and aggressive organic solvents, ensuring chemical stability during unattended runs.

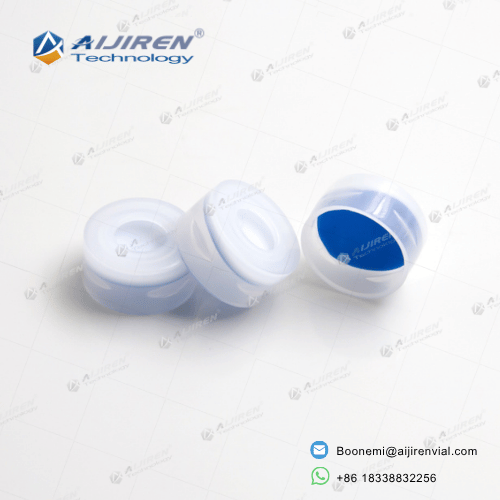

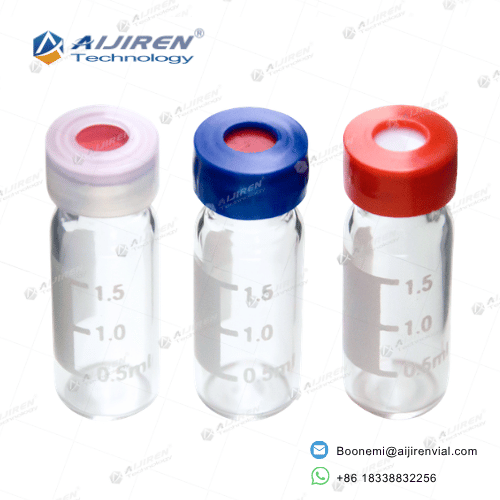

Color-Coded Sample Routing: Available in natural and vibrant blue caps alongside diverse septa color configurations, this line allows laboratories to implement visual indexing for distinct methods or light-sensitive compounds.

Related products

Complete set of 1ml shell vials with 8mm PE plugs and caps

1mL Shell Vial (8.2*40mm) – 8mm Soft PE Plug for High-Speed Autosamplers

1.5mL 8-425 Screw Neck Vial ND8 Standard Opening for GC/HPLC

8-425 Screw Thread Vials (ND8) | 1.5mL Standard Opening Sample Vials | Bulk Supply

V1117 Clear and Amber 1.5mL Crimp Neck Autosampler Vials

1.5mL Crimp Neck Autosampler Vials (ND11)

8-425 Screw Cap and Vial Septum Kit for Chromatography

8-425 Small Opening Caps and Silicone Septa with Customizable Lab Seals for Vial Septum

11mm snap-top PE caps and PTFE silicone septa for autosampler vials

1.5mL Snap Ring Vials

Assorted Micro Vials including Base Bonded and Shell Vials for HPLC

Micro-Vials and Shell Vials Series: Integrated Insert, Base Bonded and PP

10-425 Screw Caps with PTFE Silicone Septa ND10

10-425 Thread Caps with PTFE/Silicone Septa ND10 Vials Closures

1.5mL 10-425 screw thread HPLC vials in clear and amber glass

1.5mL 10-425 Screw Thread Vials, Wide Opening HPLC Autosampler Vials

9mm Blue Short Thread Cap with Red PTFE and White Silicone Septa

9mm Short Thread Screw Caps and Septa, Pre-Slit, Bonded, and Made of PTFE/Silicone

Selection of 11mm aluminum crimp caps in various colors with PTFE silicone septa

11mm crimp cap septa hplc gc nd11 vial seals

Specification

Component-Level Replacement Septa

Component-Level Snap PE Caps

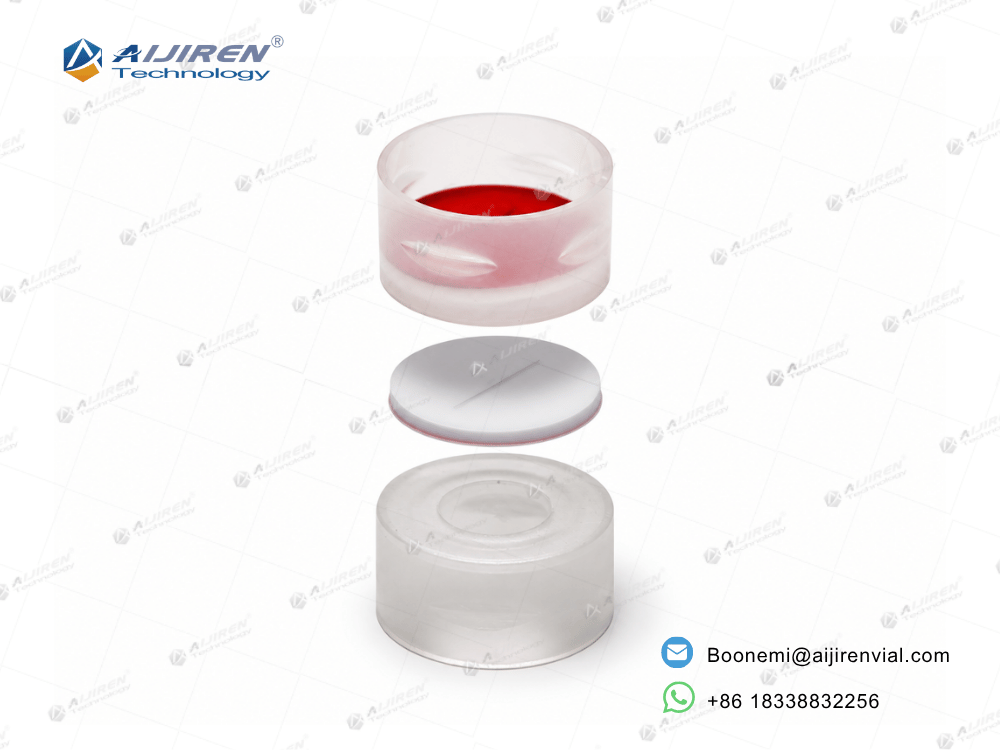

Pre-Assembled Turnkey Kits

Part No.	Material Specification & Liner Color	Dimensions	Pre-slit	Qty/Pack	Target Chrom Applications
S101	White PTFE / Red Silicone Septa	Φ11 * 1mm	No	100	Routine HPLC testing and basic analytical sequences.
S102	Red PTFE / White Silicone Septa	Φ11 * 1mm	No	100	Enhanced thermal runs and standard gas chromatography setups.
S103	Red PTFE / White Silicone / Red PTFE Septa	Φ11 * 1mm	No	100	Double-sided solvent defensive barrier for aggressive compounds.

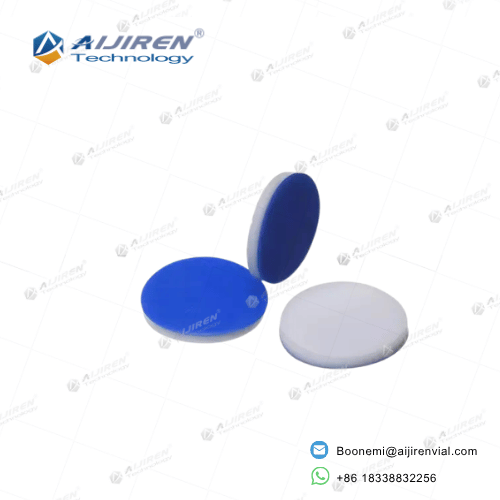

S104	Blue PTFE / White Silicone Septa	Φ11 * 1mm	No	100	Visual verification lines and cross-method bench segregation.
S1011	Pre-slit White PTFE / Red Silicone Septa	Φ11 * 1mm	Yes	100	High-throughput autosampling preventing internal vacuum draw.
S1022	Pre-slit Red PTFE / White Silicone Septa	Φ11 * 1mm	Yes	100	Frictionless needle penetration with minimal fragmentation coring.
S1044	Pre-slit Blue PTFE / White Silicone Septa	Φ11 * 1mm	Yes	100	Automated continuous sequences utilizing narrow-gauge needles.

Part No.	Cap Configuration & Polyethylene Color	Aperture Size	Outer Size	Qty/Pack	Target Chrom Applications

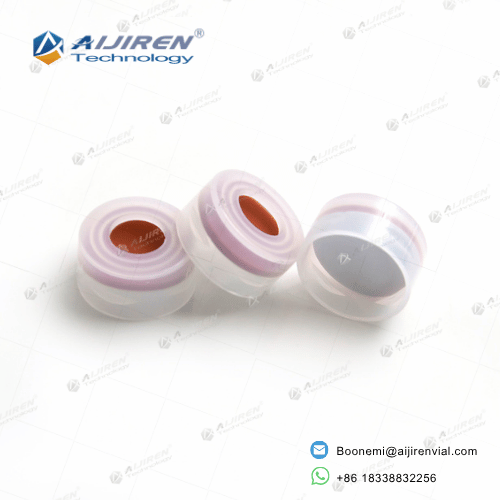

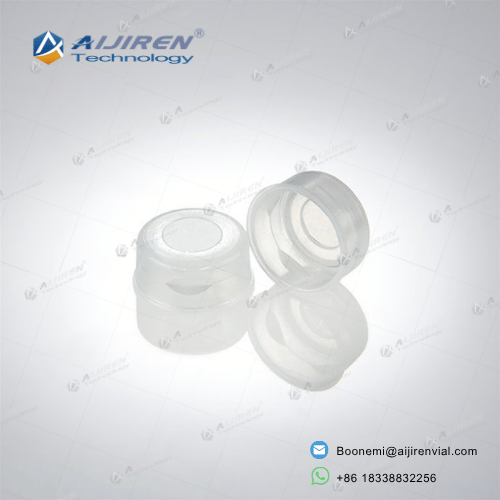

C101	11mm Natural Snap-top PE Cap	6mm Centre Hole	Φ11mm	100	Translucent framework enabling easy visual fluid level checks.

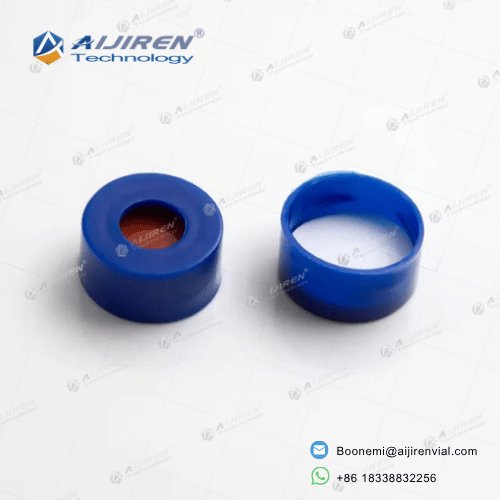

C102	11mm Blue Snap-top PE Cap	6mm Centre Hole	Φ11mm	100	Visual project sorting; active shielding for light-unstable analytes.
C103	11mm Red Snap-top PE Cap	6mm Centre Hole	Φ11mm	100	Distinct batch routing and laboratory section organization.

Part No.	Integrated Assembly Specification	Kit Dimensions	Pre-slit	Qty/Pack	Target Chrom Applications
SC101101	White PTFE/Red Silicone Septa + Natural Snap PE Cap	11mm Kit Combo	No	100	Standard HPLC analysis; isolates samples from secondary contamination.
SC102101	Red PTFE/White Silicone Septa + Natural Snap PE Cap	11mm Kit Combo	No	100	Trace concentration runs demanding absolute background cleanliness.
SC102102	Red PTFE/White Silicone Septa + Blue Snap PE Cap	11mm Kit Combo	No	100	High volatile-loss control paired with active light shielding.
SC103101	Red PTFE/White Sil./Red PTFE Septa + Natural Snap Cap	11mm Kit Combo	No	100	Advanced GC-MS setups and ultra-trace corrosive assay blocks.
SC104101	Blue PTFE/White Silicone Septa + Natural Snap PE Cap	11mm Kit Combo	No	100	Standardized validation pipelines and high-volume screenings.
SC1011101	Pre-slit White PTFE/Red Silicone Septa + Natural Snap Cap	11mm Kit Combo	Yes	100	Turnkey continuous automation layouts to protect narrow needle gauges.

Frequent Asked Questions

Technical resolutions for instrument compatibility, material behaviors, and deployment optimization regarding 11mm snap cap and septa systems.

What is the benefit of an 11mm snap cap over a screw cap?

Snap caps require no tools; they seal tightly over the vial rim with a quick manual press, saving time during high-throughput sample prep.

When should I choose a pre-slit septum configuration?

Use pre-slit versions for delicate, narrow, or blunt autosampler needles to lower puncture force, prevent bent needles, and eliminate internal vial vacuum.

Why use a double-sided PTFE/Silicone/PTFE septum?

The extra PTFE layer shields the underlying silicone core from solvent vapors after needle puncture, making it ideal for aggressive chemicals and multiple injections.

Do different septum colors (white, red, blue) affect performance?

No. All colors offer identical chemical inertness. They are designed strictly for color-coding and quick sample tracking in the lab.

Can these 11mm snap caps fit traditional crimp-top vials?

Yes. The structural flexibility of the snap PE cap allows it to latch securely onto both standard 11mm snap-neck and 11mm crimp-neck chromatography vials.
